Home > Electrical & Electronics > Breaker & Protector > Circuit Breaker > HC02,Overload Protector,Window Motor Protector

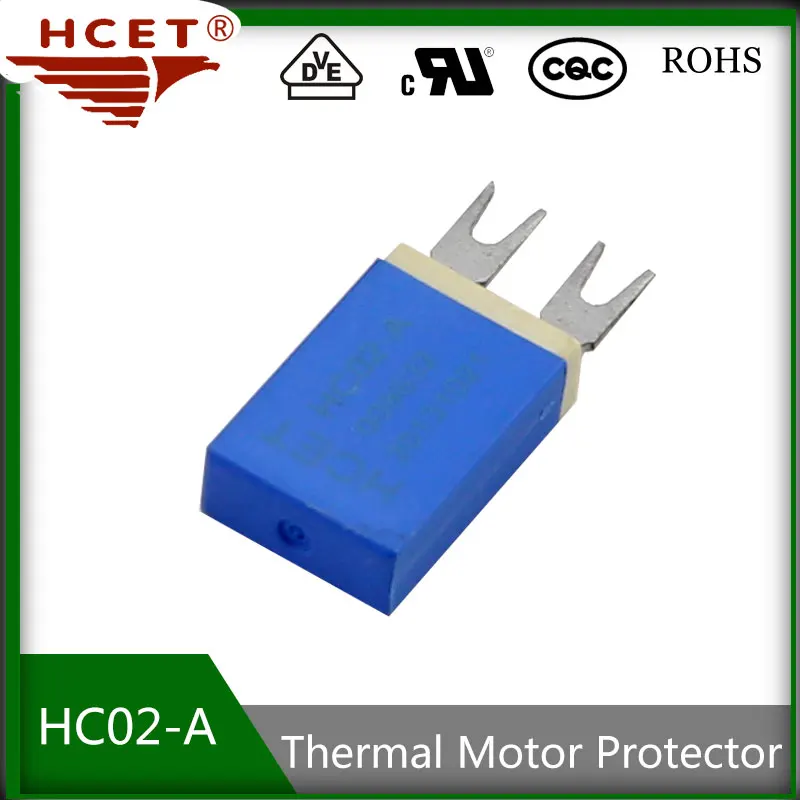

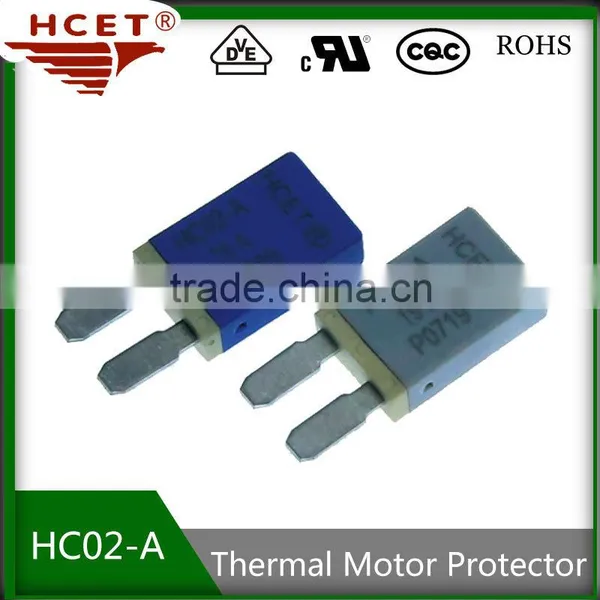

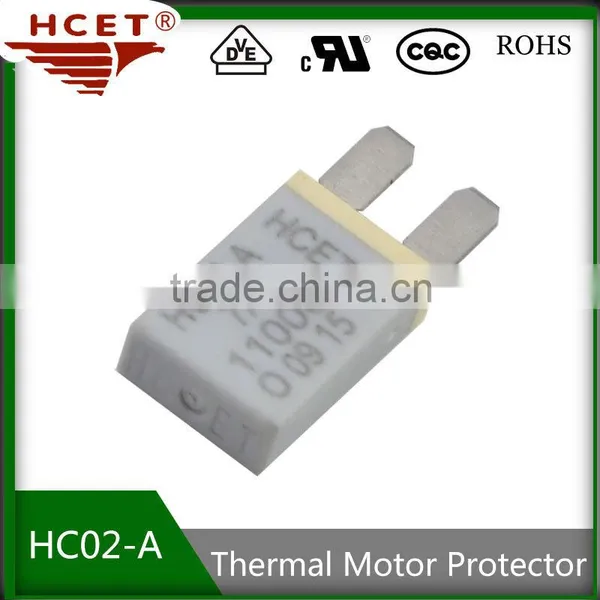

HC02,Overload Protector,Window Motor Protector
US$ 0.30 - 0.32
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HCET
Model Number:
HC02-A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3MP, Motor Protector, Agitator Motor ProtectorUS$ 0.33 - 0.35MOQ: 100 Pieces -
Thermal Protector, Temperature Protector, Overload ProtectorUS$ 0.58 - 0.59MOQ: 1000 Pieces
-
Motor Protector, Temperature Protector, Used in Window Motor, Skylight, Aerial MotorUS$ 0.30 - 0.32MOQ: 100 Pieces
-
Motor Protector, Temperature Protector, Protector, Used in Skylight, Aerial MotorUS$ 0.30 - 0.32MOQ: 100 Pieces
-
3MP, Motor Protector, Temperature ProtectorUS$ 0.33 - 0.35MOQ: 100 Pieces
Place of Origin
Jiangsu, China
Brand Name
HCET
Model Number
HC02-A
Type
Other, Auto parts
Poles Number
1
Product Description

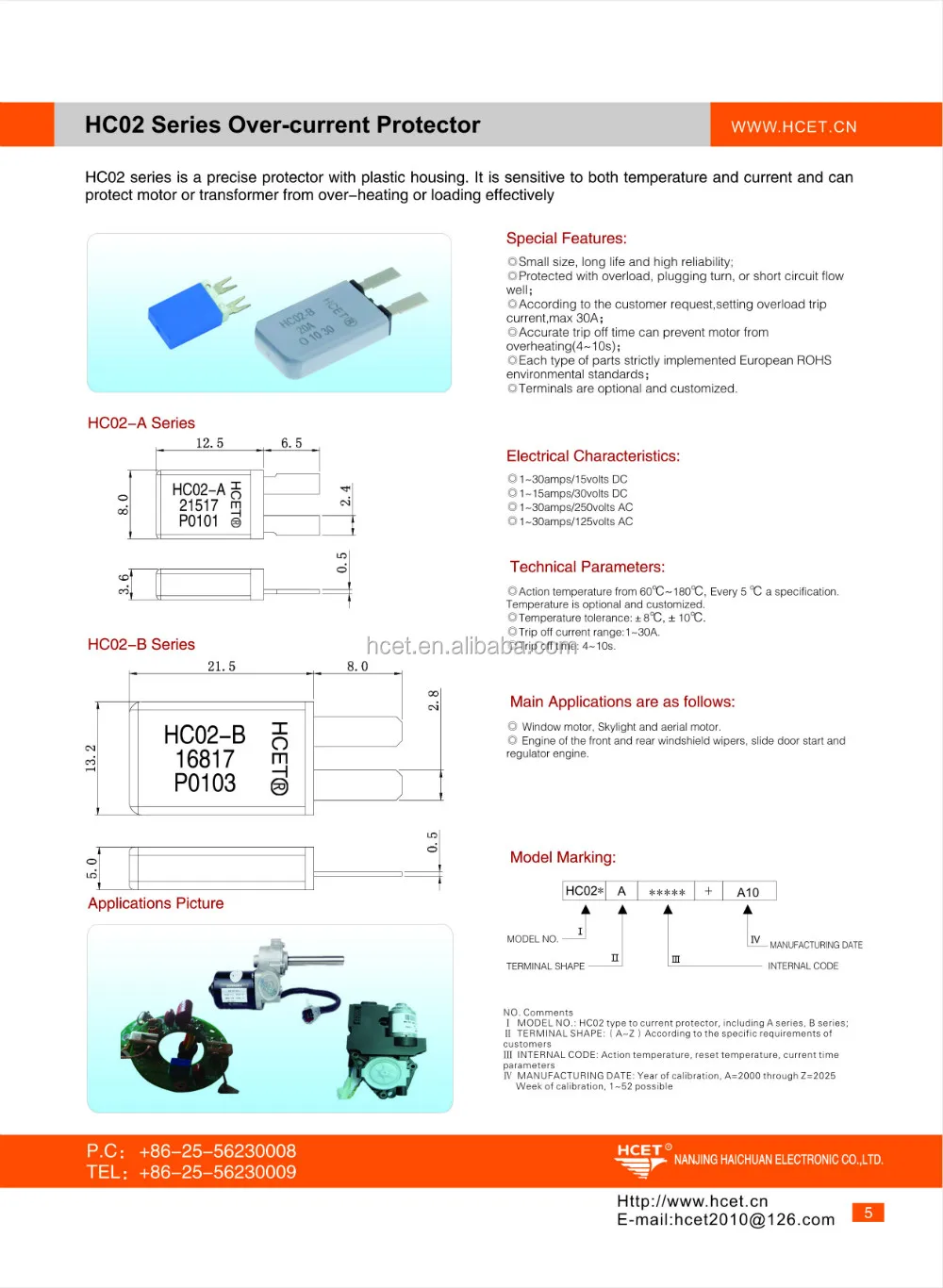

HC02 Series Over-current Protector
HC02 series is a precise protector with plastic housing. It is sensitive to both temperature and current and can protect motor or transformer from over-heating or loading effectively
Special Features:● Small size, long life and high reliability;
● Protected with overload, plugging turn, or short circuit flow well；
● According to the customer request, setting overload trip current, max 30A；
● Accurate trip off time can prevent motor from overheating(4~10s)；
● Each type of parts strictly implemented European ROHS environmental standards；
● Terminals are optional and customized.Electrical Characteristics:
● 1~30amps/15volts DC● 1~15amps/30volts DC● 1~30amps/250volts AC
● 1~30amps/125volts ACTechnical Parameters:
● Action temperature from 60℃~180℃, Every 5 ℃ a specification. Temperature is optional and customized.
● Temperature tolerance:±8℃,±10℃.● Trip off current range: 1~30A.
● Trip off time: 4~10s.Main Applications are as follows:
● Window motor , Skylight and aerial motor.
● Engine of the front and rear windshield wipers, slide door start and regulator engine.
Special Features:● Small size, long life and high reliability;
● Protected with overload, plugging turn, or short circuit flow well；
● According to the customer request, setting overload trip current, max 30A；
● Accurate trip off time can prevent motor from overheating(4~10s)；
● Each type of parts strictly implemented European ROHS environmental standards；
● Terminals are optional and customized.Electrical Characteristics:
● 1~30amps/15volts DC● 1~15amps/30volts DC● 1~30amps/250volts AC
● 1~30amps/125volts ACTechnical Parameters:
● Action temperature from 60℃~180℃, Every 5 ℃ a specification. Temperature is optional and customized.
● Temperature tolerance:±8℃,±10℃.● Trip off current range: 1~30A.
● Trip off time: 4~10s.Main Applications are as follows:
● Window motor , Skylight and aerial motor.
● Engine of the front and rear windshield wipers, slide door start and regulator engine.
Detailed Images
