Help CenterThermal Protector, Temperature Protector, Overload Protector
Related Products
-
Motor Protector, Temperature Protector, Used in Window Motor, Skylight, Aerial MotorUS$ 0.30 - 0.32MOQ: 100 Pieces -
Motor Protector, Temperature Protector, Protector, Used in Skylight, Aerial MotorUS$ 0.30 - 0.32MOQ: 100 Pieces
-
3MP, Motor Protector, Temperature ProtectorUS$ 0.33 - 0.35MOQ: 100 Pieces
-
HC02, Motor Protector, Temperature Protector, Used in Windshield Wipers MotorUS$ 0.30 - 0.32MOQ: 100 Pieces
-
8AM, Motor Protector, Protector, Temperature Protector, Ballast Protection, Split-phase Motors ProtectorUS$ 1.50 - 1.52MOQ: 100 Pieces

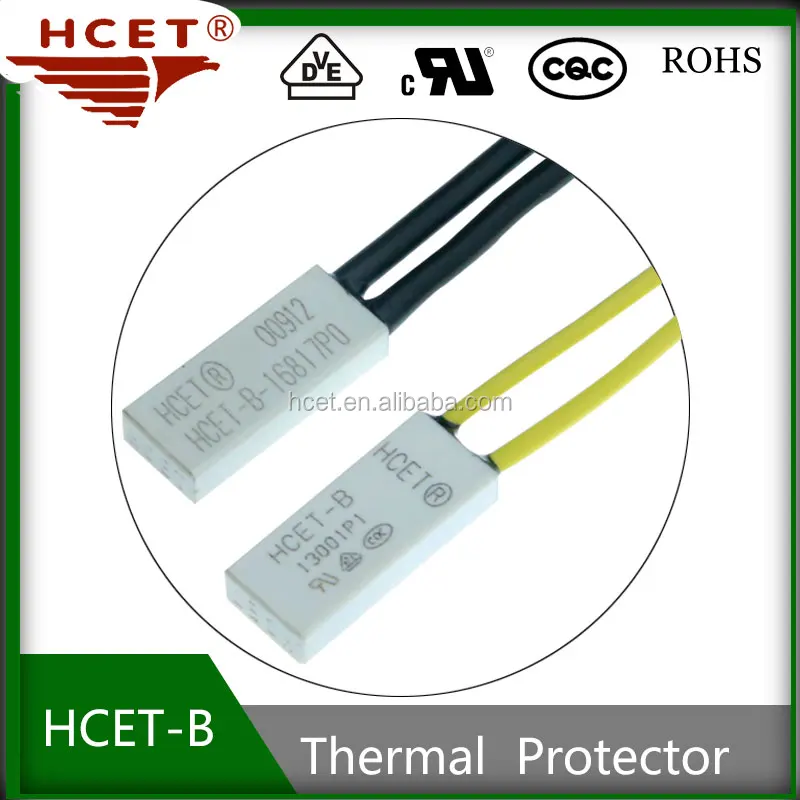

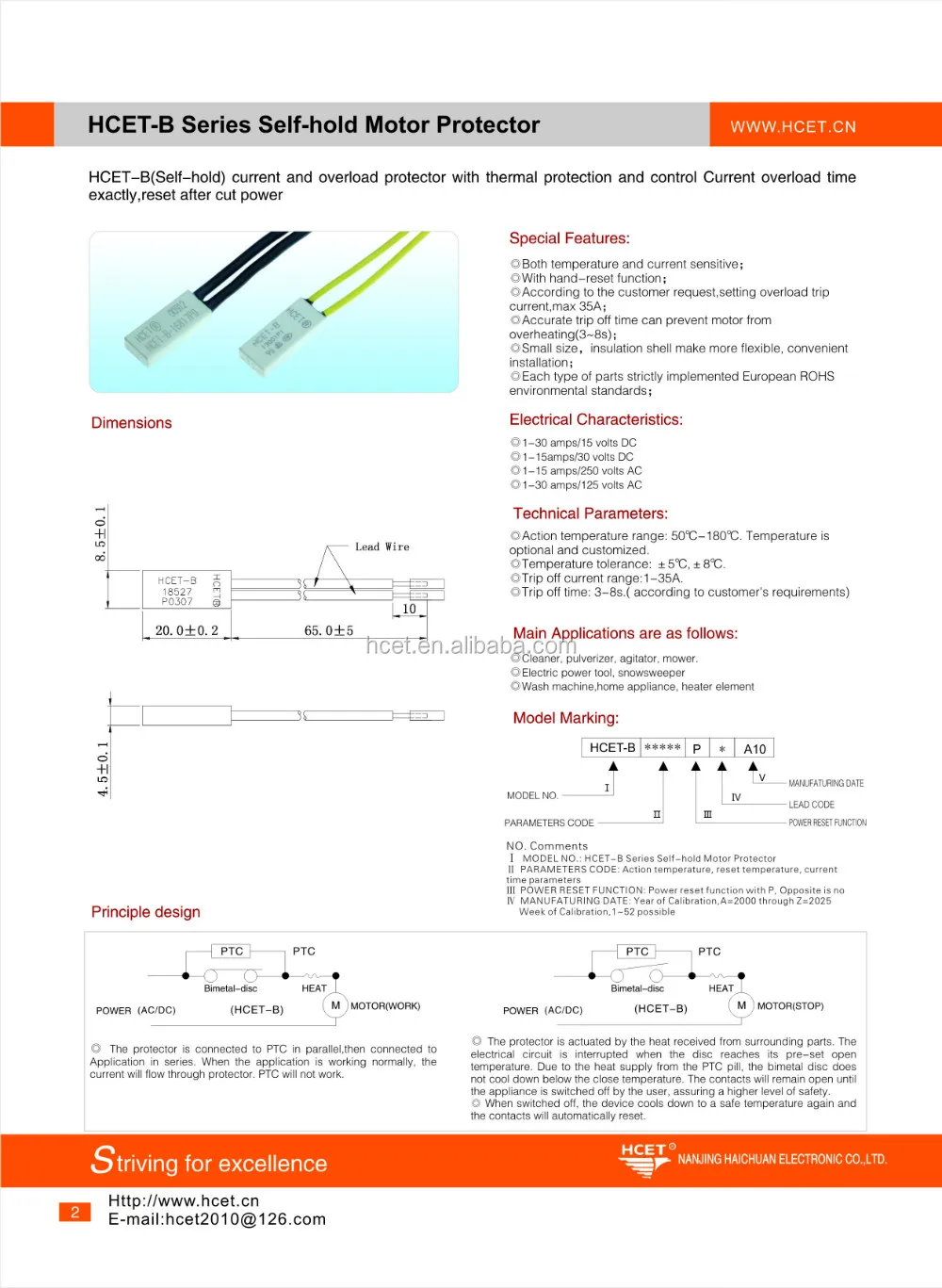

HCET-B Series Self-hold Motor Protector
HCET-B (Self-hold) current and overload protector with thermal protection and control
Current overload time exactly, reset after cut power
Special Features:
● Both temperature and current sensitive；
● With hand-reset function；
● According to the customer request, setting overload trip current, max 35A；
● Accurate trip off time can prevent motor from overheating(3~8s)；
● Small size，insulation shell make more flexible, convenient installation；
● Each type of parts strictly implemented European ROHS environmental standards；
Electrical ratings:
● 1-30 amps/15 volts DC
● 1-15amps/30 volts DC
● 1-15 amps/250 volts AC
● 1-30 amps/125 volts AC
Technical parameters：
● Action temperature range: 50℃-180℃. Temperature is optional and customized.
● Temperature tolerance: ±5℃,±8℃.
● Trip off current range: 1-35A.
● Trip off time: 3-8s.( according to customer's requirements)
Applications:
● Cleaner, pulverizer , agitator, mower.
● Electric power tool, snow sweeper
● Wash machine, home appliance, heater element
Send Inquiry to This Supplier
