5AP, 2MP, Temperature Protector, Protector, Motor Protector
US$ 0.27 - 0.29
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HCET
Model Number:
5AP/2MP
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3MP, Motor Protector, Used in Cleaner, Pulverizer , Agitator, MowerUS$ 0.33 - 0.35MOQ: 100 Pieces -
HC01, 6AP, Motor Protector, Window Motor Protector, Skylight Motor ProtectorUS$ 0.30 - 0.32MOQ: 100 Pieces
-
3MP, Motor Protector, Heater Element Motor ProtectorUS$ 0.33 - 0.35MOQ: 100 Pieces
-
HC02,Overload Protector,Window Motor ProtectorUS$ 0.30 - 0.32MOQ: 100 Pieces
-
3MP, Motor Protector, Agitator Motor ProtectorUS$ 0.33 - 0.35MOQ: 100 Pieces
Place of Origin
Jiangsu, China
Brand Name
HCET
Model Number
5AP/2MP
Type
Other, Auto parts
Poles Number
1
Product Description

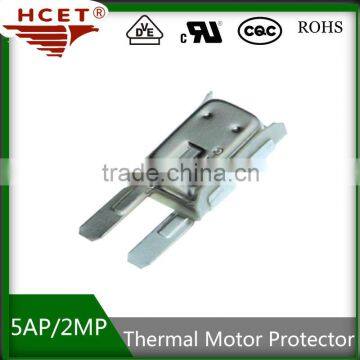

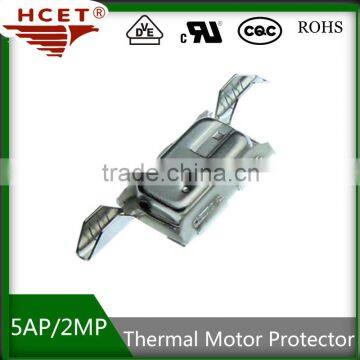

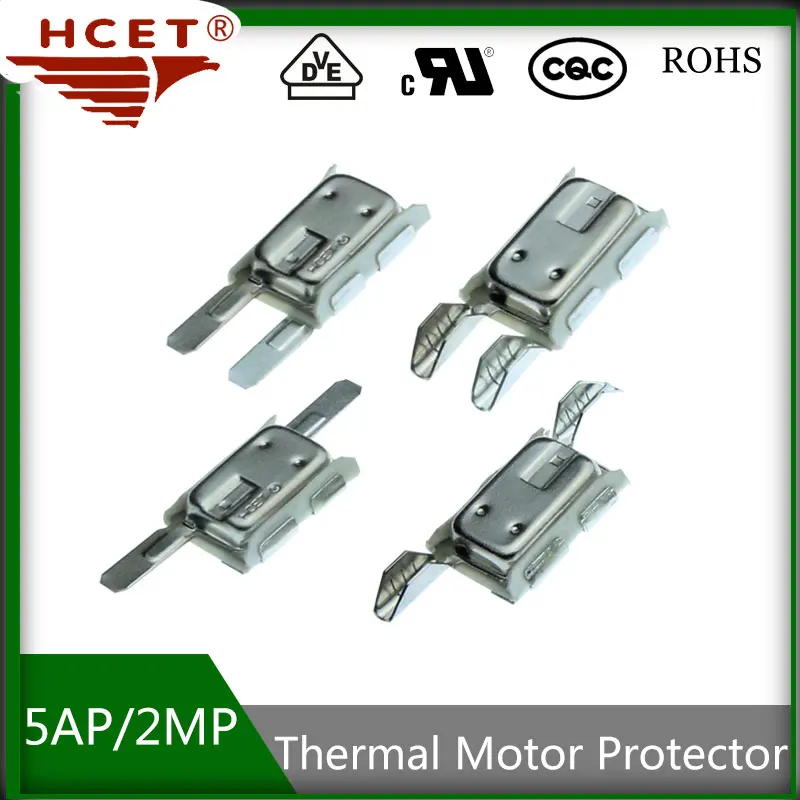

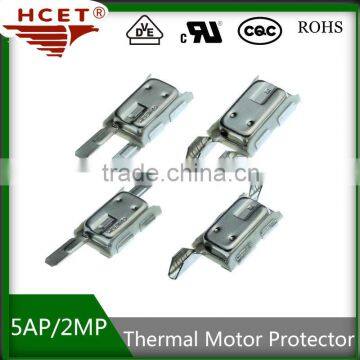

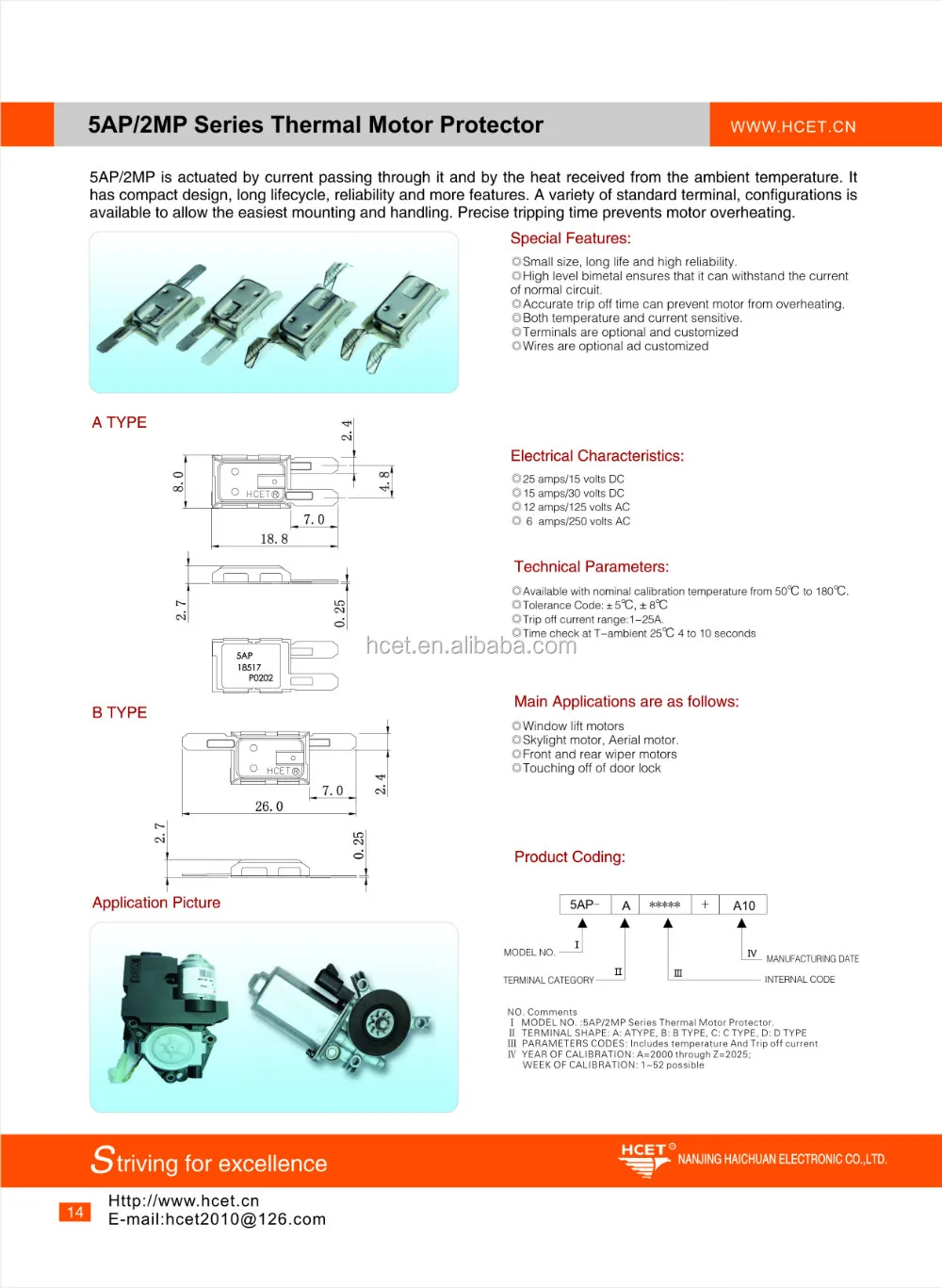

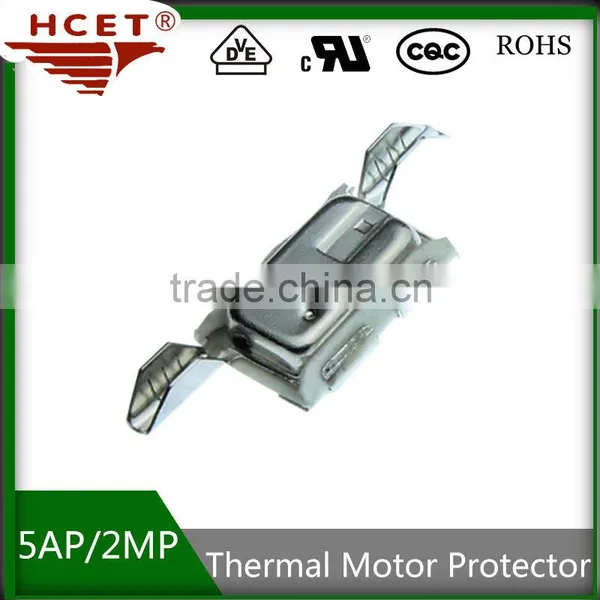

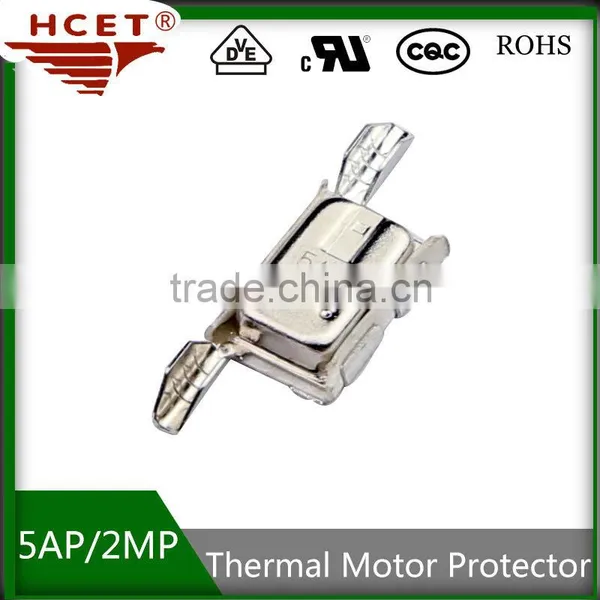

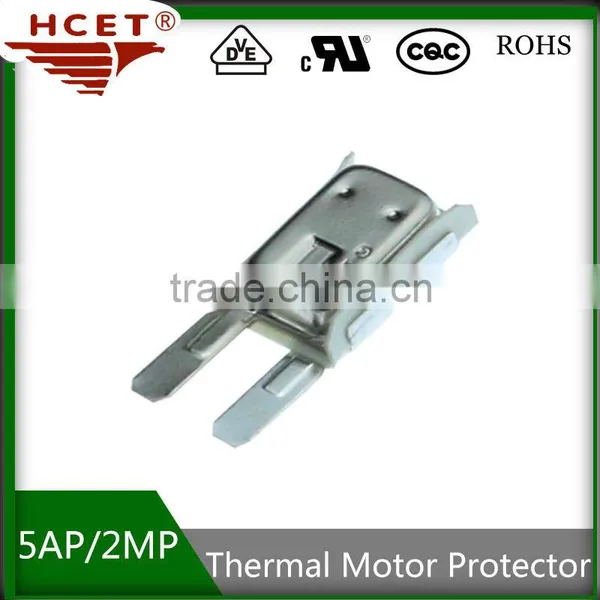

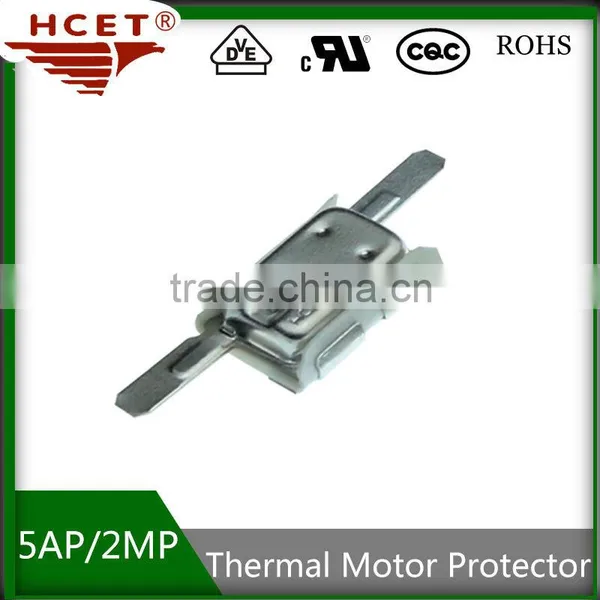

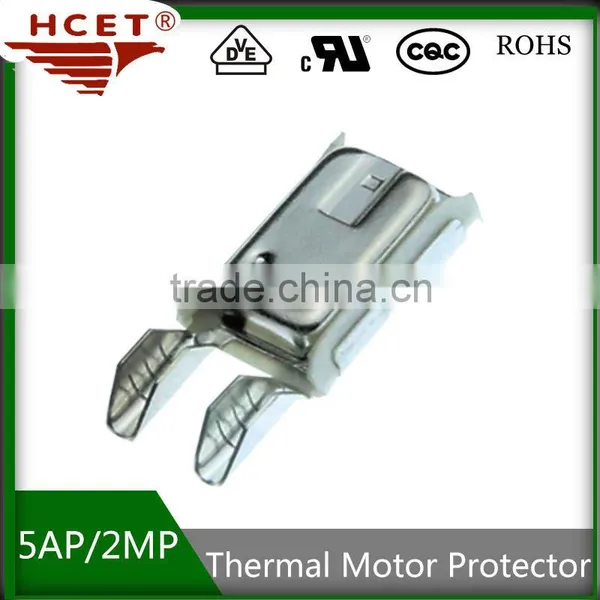

5AP/2MP Series Thermal Motor Protector
5AP/2MP is actuated by current passing through it and by the heat received from the ambient temperature. It has compact design, long lifecycle, reliability and more features. A variety of standard terminal, configurations is available to allow the easiest mounting and handling. Precise tripping time prevents motor overheating.
Special Features:
● Small size, long life and high reliability .
● High level bimetal ensures that it can withstand the current of normal circuit.
● Accurate trip off time can prevent motor from overheating.
● Both temperature and current sensitive.
● Terminals are optional and customized
● Wires are optional ad customized
Electrical Characteristics:
● 25 amps/15 volts DC
● 15 amps/30 volts DC
Technical Parameters:
● Available with nominal calibration temperature from 50℃ to 180℃.
● Tolerance Code:±5℃,±8℃
● Trip off current range: 1-25A.
● Time check at T-ambient 25℃ 4 to 10 seconds
Main applications are as follows:
● Window lift motors
● Skylight motor, Aerial motor .
● Front and rear wiper motors
● Touching off of door lock
Special Features:
● Small size, long life and high reliability .
● High level bimetal ensures that it can withstand the current of normal circuit.
● Accurate trip off time can prevent motor from overheating.
● Both temperature and current sensitive.
● Terminals are optional and customized
● Wires are optional ad customized
Electrical Characteristics:
● 25 amps/15 volts DC
● 15 amps/30 volts DC
Technical Parameters:
● Available with nominal calibration temperature from 50℃ to 180℃.
● Tolerance Code:±5℃,±8℃
● Trip off current range: 1-25A.
● Time check at T-ambient 25℃ 4 to 10 seconds
Main applications are as follows:
● Window lift motors
● Skylight motor, Aerial motor .
● Front and rear wiper motors
● Touching off of door lock
