Negotiable MOQ: 4 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Viet Nam Made Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
HOCHIMINH VIETNAM
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Brand Name KUBOTA
Model Number B2420
Place of Origin Japan
After-sales Service Provided No overseas service provided
Product Description

Specifications

Model

B2420

4WD

Engine

Type

Kubota D1105-E2-D22T, liquid cooled, 3-cylinder diesel

No. of cylinders

3

Total displacement ( cc )

1,123

Engine gross power ( HP )

24.0@2600 rpm

Engine net power ( HP )

21.1@2600 rpm

PTO power ( HP )

17.4@2600 rpm

Fuel tank capacity ( l)

26

Dimensions

Overall length (without 3P) ( mm(inch) )

2,410(94.88inch)

Overall width ( mm(inch) )

1,015(39.96inch)

Overall height (Top of steering wheel) ( mm(inch) )

1,350(50.39nch)

Wheelbase ( mm(inch) )

1,563(61.54inch)

Min. ground clearance ( mm(inch) )

325(12.80inch)

Tread

Front ( mm(inch) )

810(32.09inch)

Rear ( mm(inch) )

810(31.89inch), 900(35.43inch)

Weight ( kg )

595

Clutch

Dry type Single stage

Traveling System

Tires

Front

7 – 12

Rear

8.3 – 20

Steering

Integral type power steering

Transmission

Gear shift, 9 forward and 3 reverse

Brake

Wet disk type

Min. turning radius (with brake) ( m )

2.1

Traveling speed ( km/h )

Max. 18.8

Hydraulic

Hydraulic control system

Quarter inching valve

Pump capacity ( l/min )

26.4 (16.6+9.8)

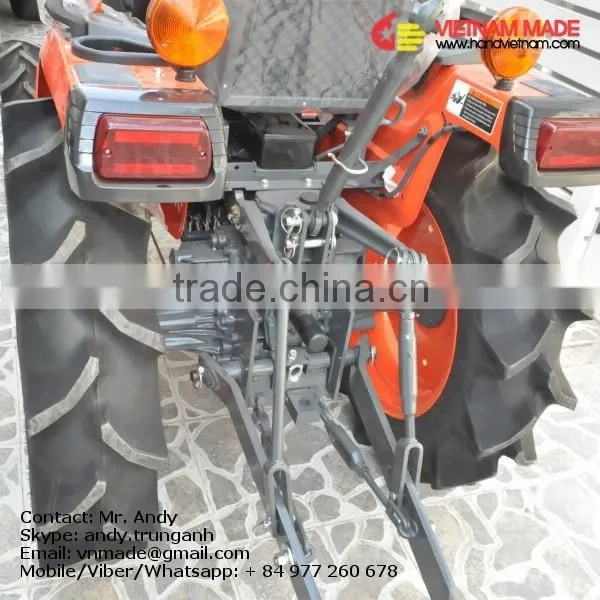

Three point hitch

Category I

Max. lift force

At lift points ( kg )

615

24 in. behind ( kg )

480

PTO

PTO (Engine speed) ( rpm )

540 (2,600), 960 (2,552)

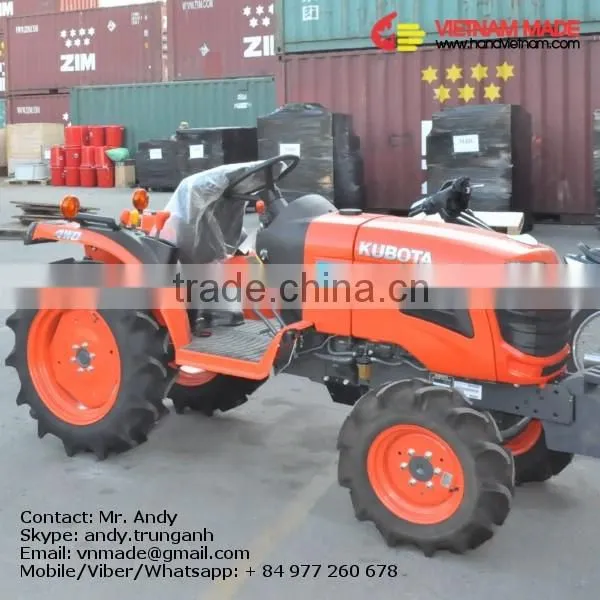

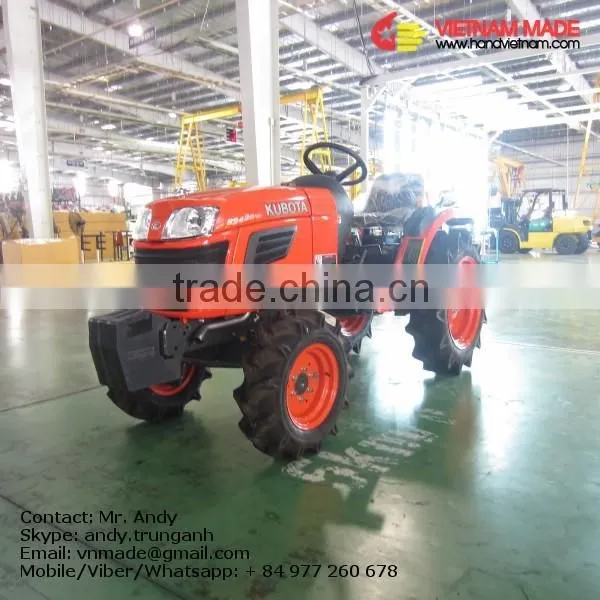

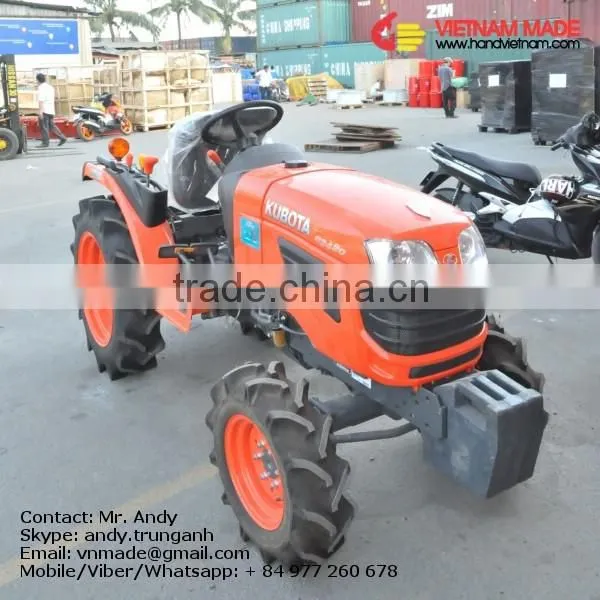

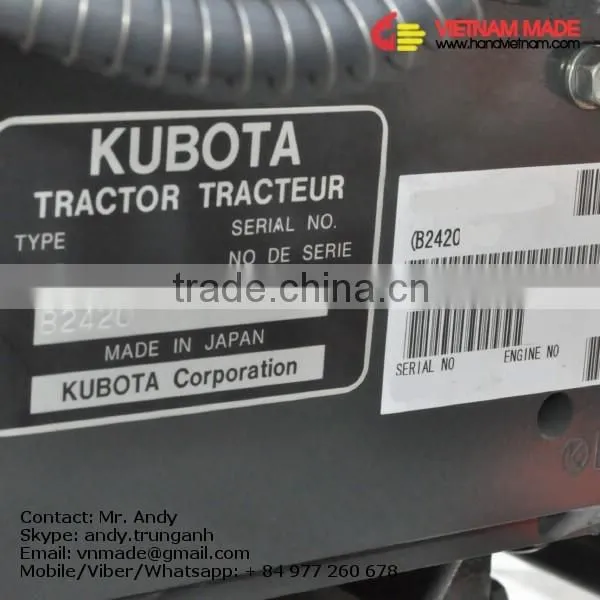

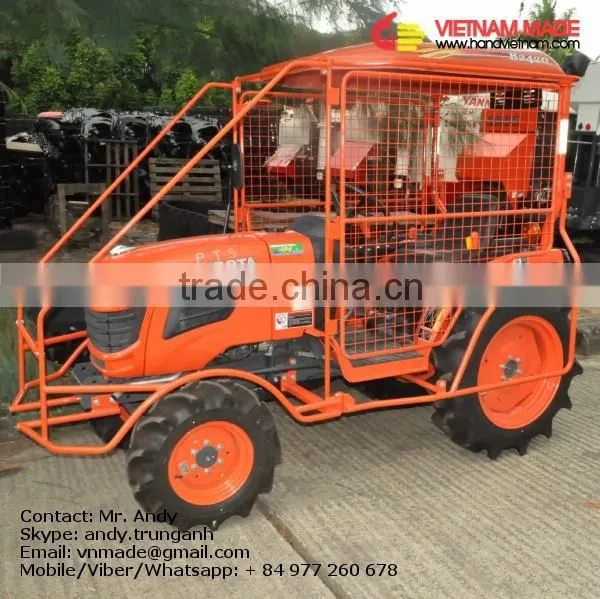

KUBOTA TRACTOR B2420 WITH FRAME PROTECTION

KUBOTA tractor parts model B2420

KUBOTA tractor parts model B2420



KUBOTA tractor parts model B2420



KUBOTA tractor parts model B2420



KUBOTA tractor parts model B2420



KUBOTA tractor parts model B2420

Packaging & Shipping

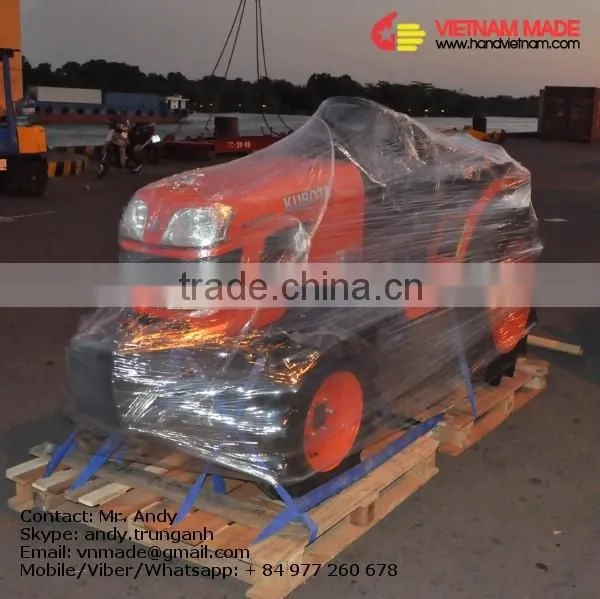

LCL SHIPPING

Carefully cover with plastic on the pallet

KUBOTA tractor parts model B2420

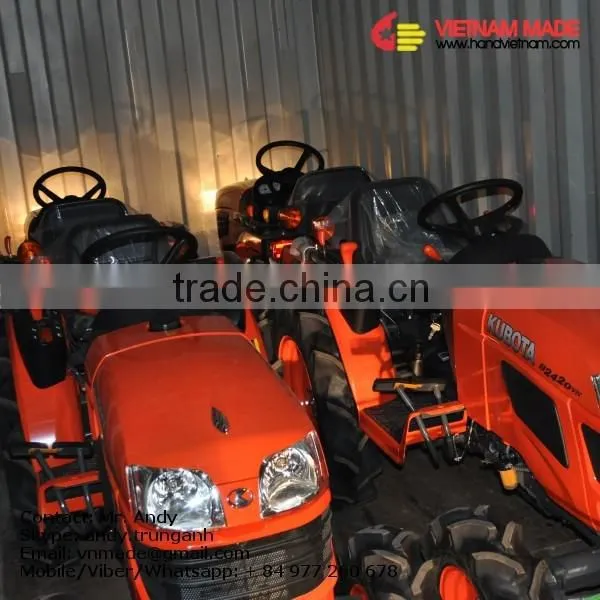

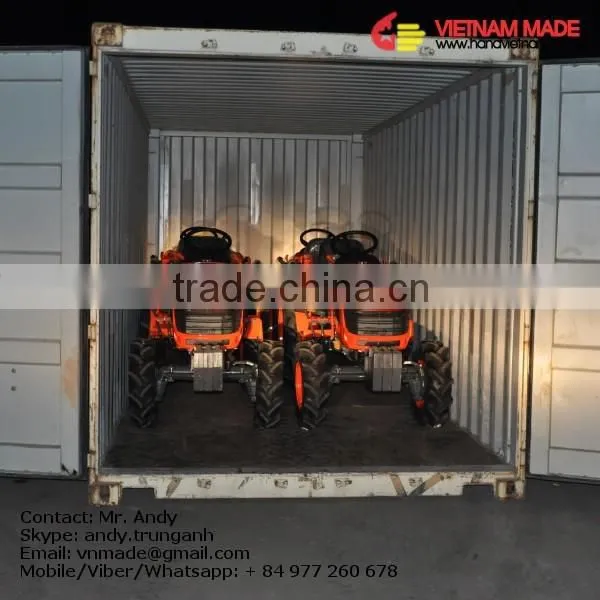

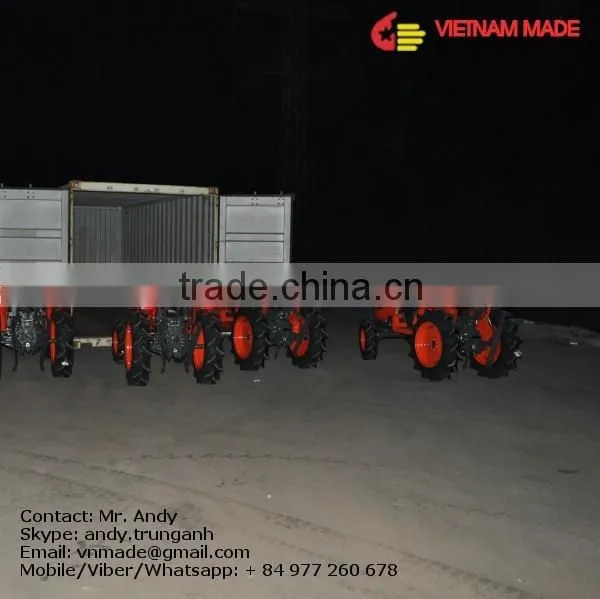

FCL SHIPPING

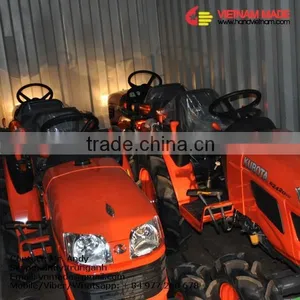

Loading complete tractor in the container as below

20FT: 4 sets

40FT: 10 sets

KUBOTA tractor parts model B2420
