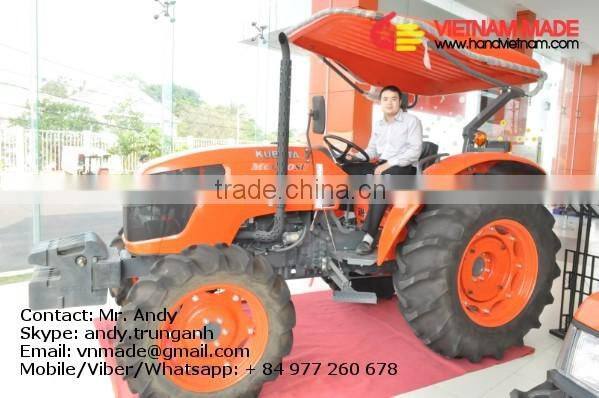

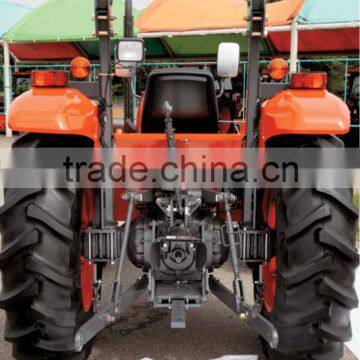

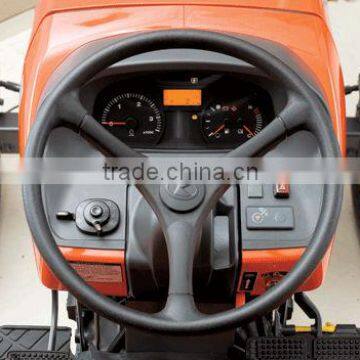

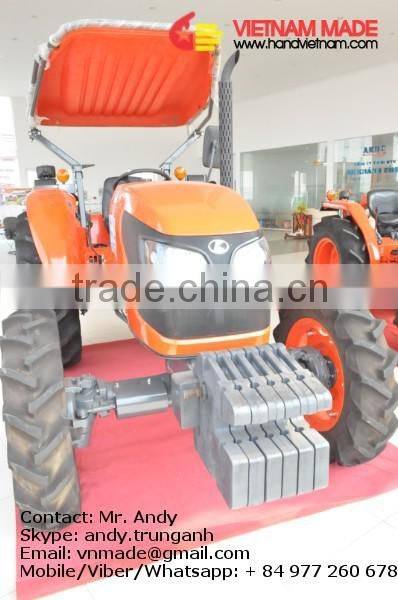

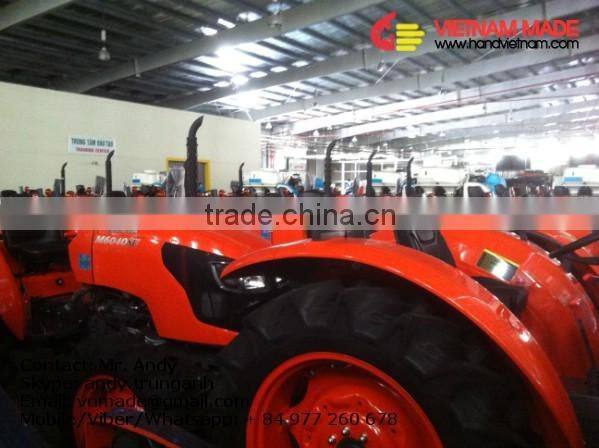

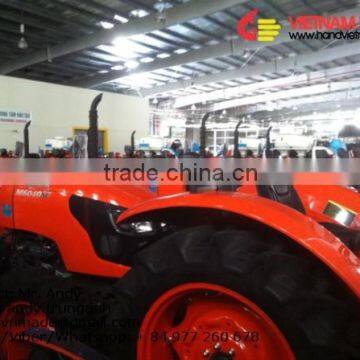

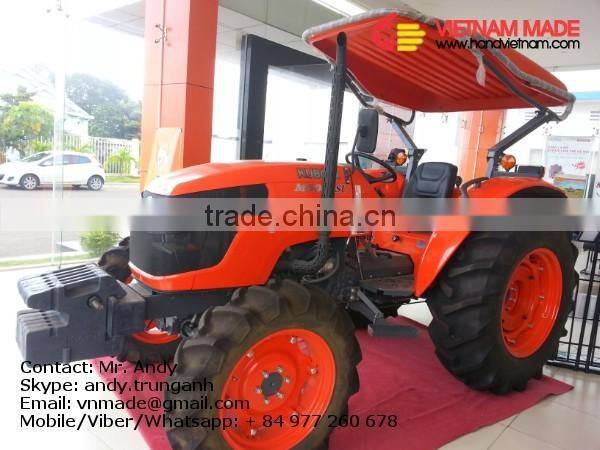

Mini Tractor Trailer M6040

M6040 - Specifications

Drive Train System

4-Wheel Drive

Engine System

Engine type

Kubota Diesel Engine - Center Direction Injection Type: 4-Cylinder, 4-Cycle, In-line Water Cooled

Model

V2403-DI-TE2

Net HP

59 (hp)

PTO HP

52 (hp)

Max Output

2,700 (rpm)

Displacement

2,434 (cc)

Bore X Stroke

87 x 102.4 (mm)

Battery capacity

12 (volt)

Fuel Tank

57 (litre)

Traveling System

Standard tire size

Front: 9.5-22 (inch)

Rear: 16.9-28 (inch)

Transmission

Synchromate

Directional gear

Synchro Shuttle (L & R only)

Clutch

Dry type single plate

Transmission speed

8 forward and 4 bankward

Steering

Hydrostatic power steering

Braking system

Wet multiple disc brake immersed in oil

Front wheel drive train system

Bevel Gear

Differential lock system

-

Speed

Forward: 2.5-28.3 (km/hr)

Backward: 3.2-9.9 (km/hr)

Power Take-off System (PTO Shaft)

PTO / Engine speed

540 / 2259 (rpm)

Hydraulic System

Hydraulic pump flow rate

41.6 (litre/min)

3-point hitch control system

Position Control

3-point hitch

Category I/II

Max. lift force at lift points

1900 (kg)

Max. lift force - 24 inch behind lift points

1500 (kg)

Dimensions / Weight

Weight (without counter weight)

2237 (kg)

Length (front bumper-rear wheel)

3420 (mm)

Width (left - right tire bead)

1865 (mm)

Wheel base (front - rear tire)

2000 (mm)

Height

2,340 (mm)

Ground clearance

435 (mm)

Tread Width (Left-Right)

Front: 1360 - 1460 (mm)

Rear:  1420 - 1720 (mm)
