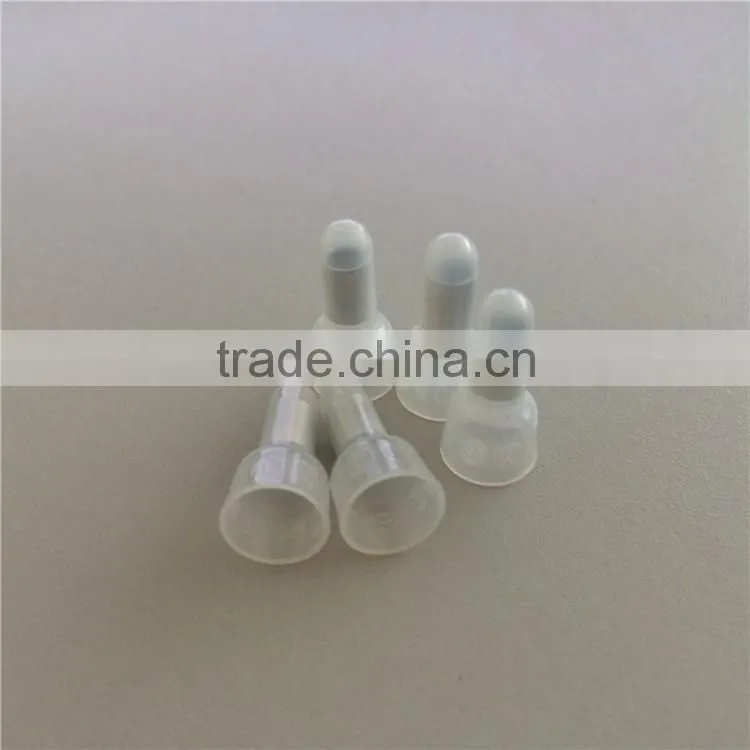

Closed-End Wire Connector CE5X
Polyamide 66, UL 94V-2 flame-retardant shell.
1. Two types of sleeve to choose from aluminum or copper.
2. Resistant to vibration.
3. Provide convenient, safe and fast installation.
4.Application: Solid Or Stranded Copper Wire
5. Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs.
6. We are the factory deal in wire connectors years and sell terminals to lots of domestic trading companies. So our price is very competitive. The only thing you need to do is send us the enquiry to start business.
For use in electrical appliances, lighting and household wiring.
Closed end connectors are crimp-able for a quick, inexpensive, easy and permanent electrical connection of two or more wires. The outer insulating shell of the connector is made from nylon and houses a small tinned aluminium or copper barrel. You simply insert your wires all the way into the closed end connector and crimp around the barrel using any standard wire crimpers. The connectors are able to connect multiple wires together and work well on both stranded and solid core wire.
Technical Parameters:
| Model No. | Color | Electrical Ratings | Wire Range | Packing |
|---|---|---|---|---|
| CE1 Copper | Nature |
300 V Max. 105°C (221°F) |
22-18 AWG, Cu Max. 2 #20 w/1 #18 Min. 2 #22 |
1,000 Pcs/Bag 30,000 Pcs/Ctn |
| CE1X AL | Nature |
300 V Max. 105°C (221°F) |
22-18 AWG, Cu Max. 2 #20 w/1 #18 Min. 2 #22 |
1,000 Pcs/Bag 30,000 Pcs/Ctn |
| CE2 Copper | Nature |
300 V Max. 105°C (221°F) |
22-14 AWG, Cu Max. 1 #18 w/1 #14 Min. 2 #22 |
1,000 Pcs/Bag 20,000 Pcs/Ctn |
| CE2X AL | Nature |
300 V Max. 105°C (221°F) |
22-14 AWG, Cu Max. 1 #18 w/1 #14 Min. 2 #22 |
1,000 Pcs/Bag 20,000 Pcs/Ctn |
| CE5 Copper | Nature |
300 V Max. 105°C (221°F) |
22-10 AWG, Cu Max. 3 #14 Min. 2 #22 w/2 #18 |
1,000 Pcs/Bag 10,000 Pcs/Ctn |
| CE5X AL | Nature |
300 V Max. 105°C (221°F) |
20-12 AWG, Cu Max. 3 #14 Min. 2 #18 |
1,000 Pcs/Bag 10,000 Pcs/Ctn |
| CE8 Copper | Nature |
300 V Max. for UL 600 V Max. for CSA & CQC 105°C (221°F) |
16-10 AWG, Cu Max. 2 #16 w/1 #10 Min. 2 #16 w/1 #12 |
500 Pcs/Bag 6,000 Pcs/Ctn |
