Aissmy New Style Household AC Contactor

Name: Aissmy New Style Household AC Contactor
Brand: Aissmy
Availability: InStock

FOB Price

US$ 1 - 10 / Piece

10 Pieces(Min. Order)

Port Shanghai or Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Aissmy
Model Number	16A 1P 220V	Electricity Type	AC
Number of Pole	1	Phase	1
Main Circuit Rating Voltage	Other, 220	Main Circuit Rating Current	Other, 16A

Product Description

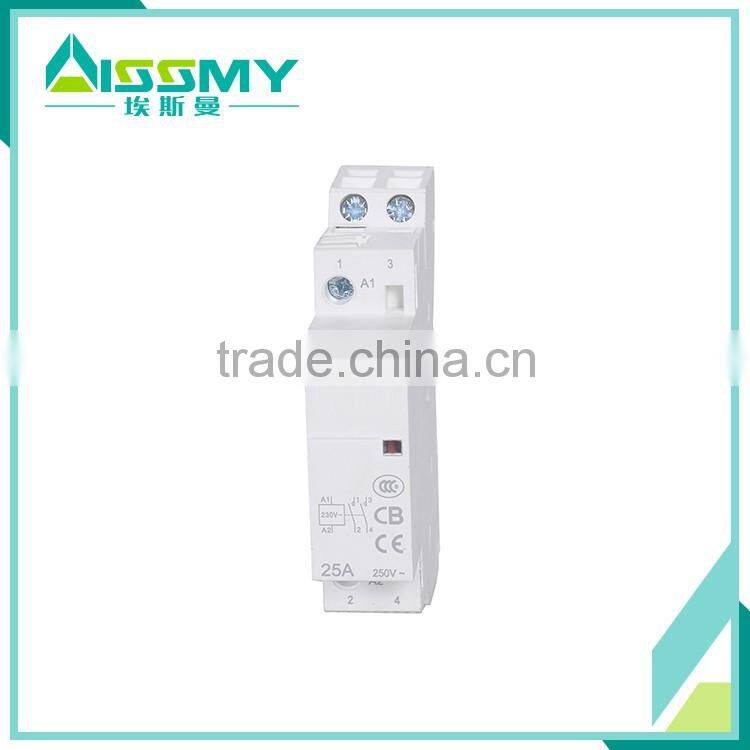

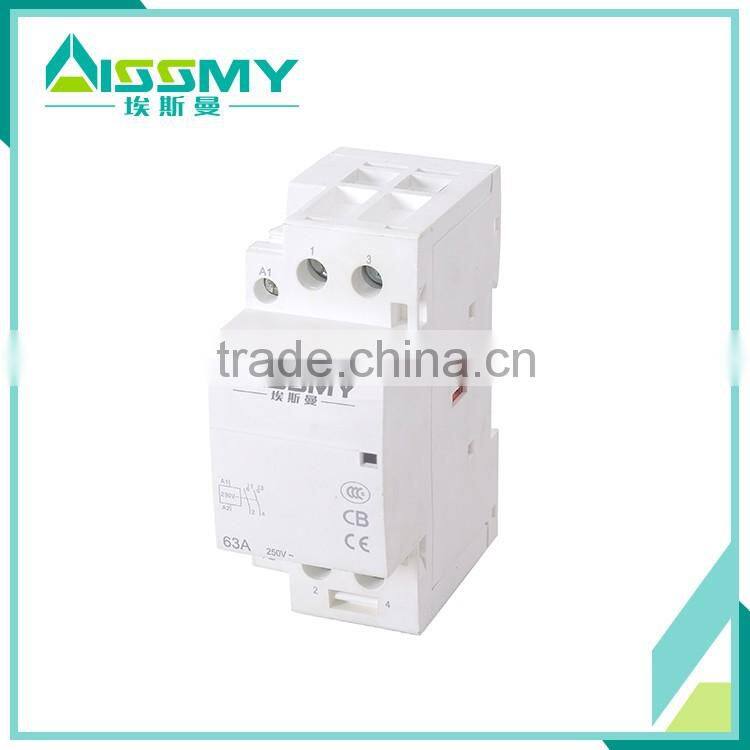

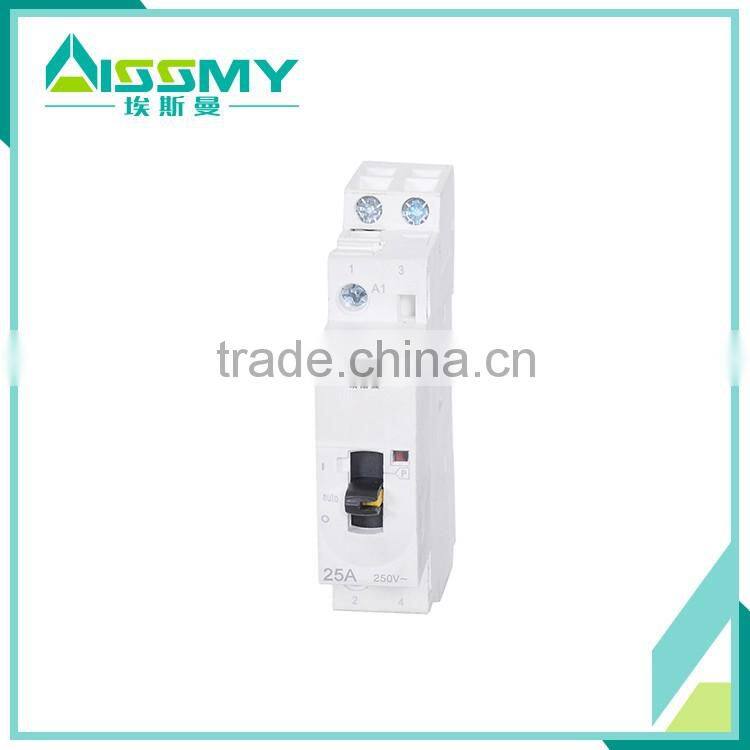

Household AC contactor

The contactor is mainly used in the power system of AC 50Hz/60Hz, rated voltage up to 400V, rated working current up to 100A, under the AC-1, AC-7a using categories, for long distance switch and control circuit.

Main technical parameters:

Model			16A	20A	25A	40A	63A	100A
In(A) Rated current In(A)	AC-7a		16	20	25	40	63	100
	AC-7b		6	7	8.5	15	20	30
Prescribed heating current Ith(A)			25	25	25	63	63	100
Rated insulation voltage Ui(V)			500
Rated operating voltage Ue(V)			250V(1P 2P) 400V(3P 4P)
Number of main contacts	1P		1NO 1NC
	2P		1NO1NC 2NO2NC
	3P		3NO 3NC
	4P		2NO2NC 3NO1NC 4NO 4NC
Control power (KW)	AC-7a	230V	3.5	4.5	5.5	9	14	22
		400V	6.5	8	10	16	25	38
	AC-7b	230V	1.4	1.6	2	3.5	4.5	5.5
		400V	2.4	2.4	3.4	6	8	11
Electrical life (times)			10*10000
Mechanical life (times)			100*10000
Maximum switching frequency/1h			30
Rated control supply voltage Us (V)			AC 24/50Hz AC 230/50Hz
