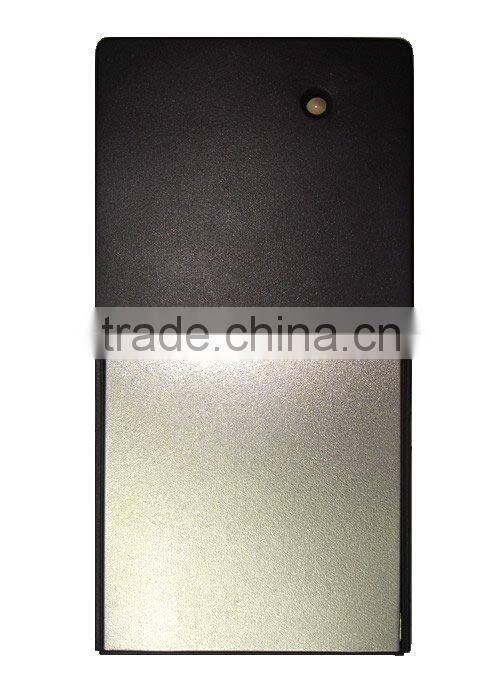

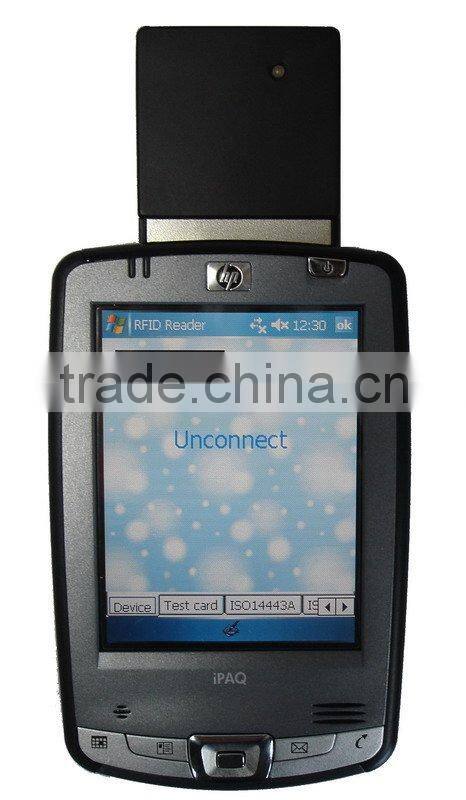

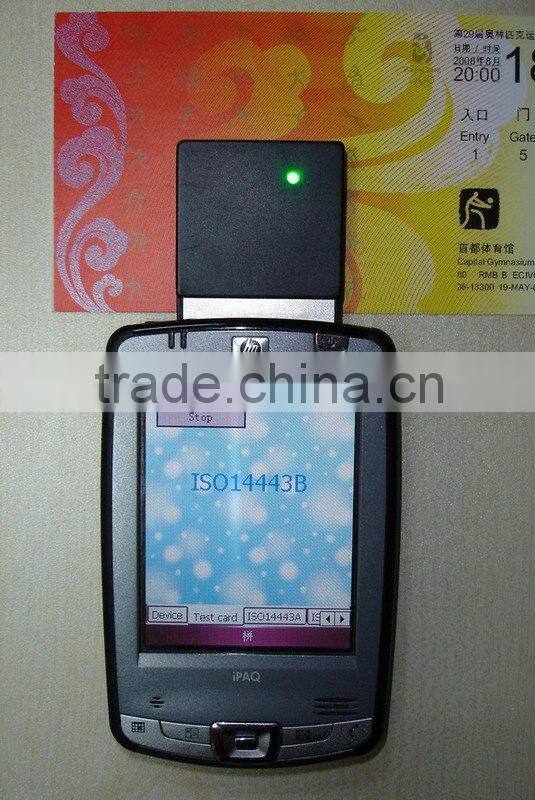

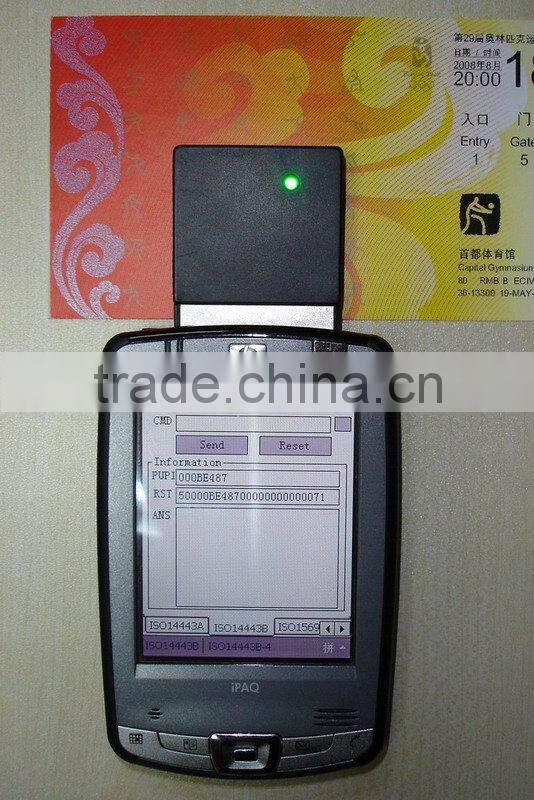

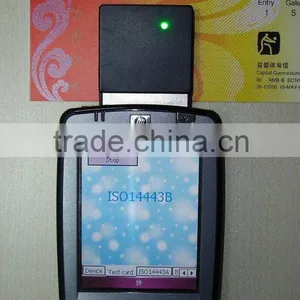

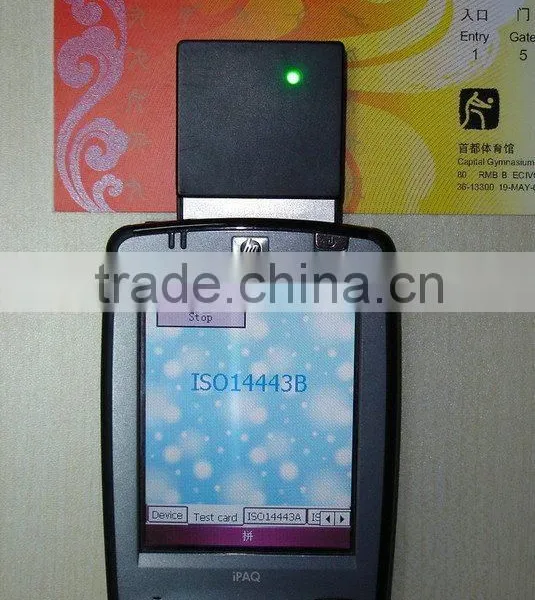

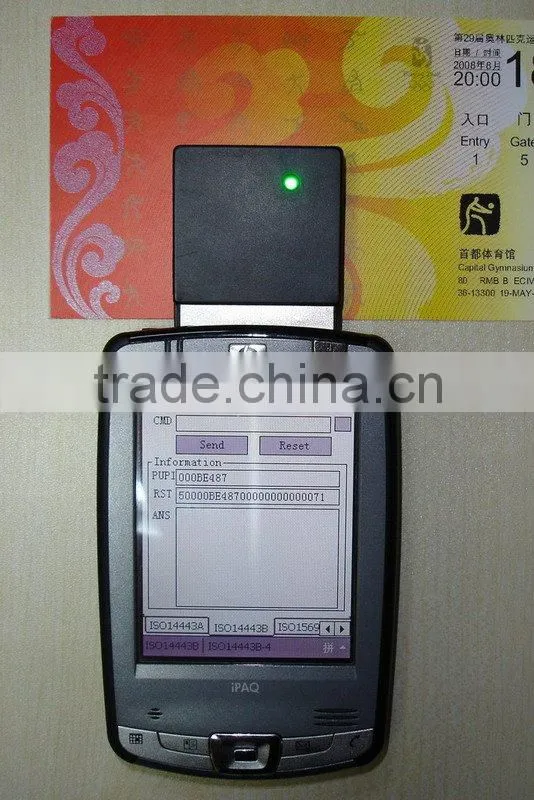

14443 15693 CF HF handheld RFID reader and writer High Frequency (HF) MutiTag CF reader is a Radio Frequency Identification (RFID) contactless read/write device that supports most of 13.56MHz tags from different suppliers. The CF reader comes with a Compact Flash interface and fits into Personal Digital Assistant (PDA), Smartphone or hand-held device with a CF slot. The RFID reader is easy and fast to be integrated into systems and applications.
Typical Applications
- Asset Tracking
- Document Tracking
- Health Care / Pharmaceutical
- Retail logistics
- Process control
- Public Transport
- Event Ticketing
- Mobile Payment
Part Number |
KD801 |
RF Transmit Frequency |
13.56MHz |
Supported Standards |
ISO 14443A, ISO 14443B, ISO 15693 |
Supported Tag-ICs |
I-Code, I-Code SLI Mifare 1K, Mifare 4K, Mifare DESFire Tag-it HF-I |
Communications Interface |
Supports most PDAs and Smartphones |
OS Compatibility |
Microsoft Pocket PC 2002/2003, Windows Mobile 2003, and Windows Mobile 5.0 Palm OS 4.1 and up |
Power Supply |
Via CF Interface |
Power Consumption |
5 mA (typical) standby , 60 mA (typical) field scanning, 3.3V (typical) operation |
Reading distance |
ISO 15693: Up to 7.0 cm depending on tag antenna configuration and environment ISO 14443A/B: Up to 5.0 cm depending on tag antenna configuration and environment |
Antenna |
Integrated |
Input/Output Connector |
Indication LED for standby, search and data communications |
Size |
83 x 44 x 13mm (L x W x H) |
Weight |
20g± 0.5g |
- shipment:International express or ocean shipping
- Payment:ali-pay,paypal,TT
