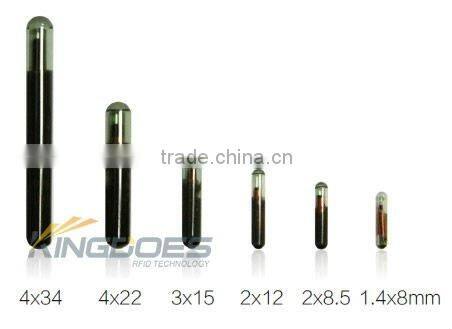

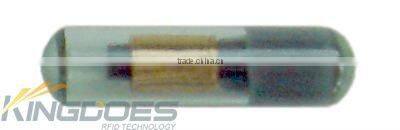

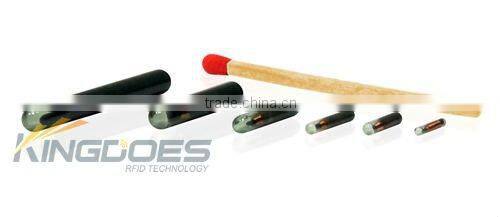

2.12x8.5mm Rfid Pet Microchip Glass Transponder

2.12x8.5mm Rfid Pet Microchip Glass Transponder photo-1
US$ 0.95 - 1.03 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
KingDoes
Model Number:
KD134-8RW
Payment & Shipping
Payment Methods:
Port of Shipment:
by air
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Beijing, China
Brand Name KingDoes
Model Number KD134-8RW

2.12x8.5mm rfid pet microchip glass transponder



SPECIFICATIONS:

  • Unsurpassed quality – fully automated manufacturing and direct-bonding technology ensure tag reliability
  • Optimum operation – the highest out-of-box performance ratings in the industry, with no line-of-sight requirements
  • Practically limitless options – choose from a broad range of standard sizes and integrated chips, or customize to fit any application

TECHNICAL FEATURES:

  • ISO 11784 and 11785 compliant FDX-B or FDX-A
  • Multiple IC options, including EM4305, Hitag S, FDX, or HDX
  • Bioglass capsules with parylene coating ensure optimal biocompatibility
  • Unlimited resistance to water and chemical absorption
  • Memory storage up to 2048 bits
  • Custom sizes and programming available

TECHNICAL PARAMETER:



Product Code

KD134-8RW

Electronic

Operating Frequency

134.2 kHz

Chip Type

EM4305

Memory

512 bit EEPROM

Reading Distance

Dependent upon reader, environment and application

Physical

Dimensions

Φ2.12 x 8.5 mm

Tagging Method

Subcutaneous

Housing Material

Bio-glass

Chemical and Mechanical

Water

IP68, 68° F (20° C), 3.3 ft (1 m) x 24 h

Withstands Exposure To

Alcohol, ammonium chloride 25%, fuel B, HCL 10%, salt water

Environmental Test Conditions

68° F (20° C), 100 h

Vibration

IEC 68.2.6 [10 g, 10 to 2000 Hz, 3 axis, 2.5 h]

Shock

IEC 68.2.29 [40 g, 18ms, 6 axis, 2000 times]

Thermal

Storage:

-40° to +194° F (-40° to +90° C), 1000 h

Operating

-13 °to +185° F (-25° to +85° C)

Peak

248° F (120° C), 100 h; 284° F (140° C), 10 h

Other

Standards

ISO 11784, ISO 11785

Options

Parylene coating (when ordering coating, increase base model number by one), custom programming

Warranty

2 Years





2.12x8.5mm rfid pet microchip glass transponder2.12x8.5mm rfid pet microchip glass transponder2.12x8.5mm rfid pet microchip glass transponder2.12x8.5mm rfid pet microchip glass transponder2.12x8.5mm rfid pet microchip glass transponder



What is RFID Microchip?

Radio Frequency Identification

RFID Microchip also known as a transponder, is about a size of a grain of rice. The transponder which is coded with a permanent code, is implanted under the animal's skin for identification purpose. Using Radio Frequency, the animal can be identified by using a RFID scanner.



What are the benefits

  • Unique identity for every livestock and pet.
  • Import and export control.
  • Lost pet can be easily traced back to it's owner.
  • Veterinarians are able to keep the animal's heath record.
  • Easily implanted and no impact on the animal.
  • Suitable for use in extreme conditions.
  • Coupled with software, the RFID tag is a must inmanagement of animals, either livestock or household pet.

Why are our Microchips much cheaper?

  • Factory strategically located.
  • Direct from our factory.
  • Sophisticated cost savings production process.

How we deliver superior quality Microchips?

  • Equipment and Machines imported from Germany, Japan, USA etc.
  • Strict quality control.
  • Microchip tested and inspected individually.
  • Use only top quality material to manufacture microchips.

Why use ICAR (International Committee for Animals Recording) Approved Microchips?

  • Specially designed for animals.
  • Superior quality.
  • Strict manufacturing guidelines.
  • Safe for use for a wide range of animals.
  • Readable by all ISO 11784/11785 tag readers.
  • Unique identification globally.
  • Encased in bio-compatible glass capsule.
  • Microchip will not migrate once implanted.
