Help CenterTube Embossing Machine
Related Products
Description of pipe embossing machine:
Our tube & pipe embossing machines have absorbed the advantage technology at home and abroad, which are widely applied for the tube process of stainless steel, iron, aluminium, etc., with good quality, low cost, high efficiency.
1. Stainless steel/ iron/ aluminium pipe embossing machine;2. Processing diameter range for the pipe 6-150mm
3. Description: Automatic embossing machine,creasing embossing machine,high speed embossing machine.
4. Embossing shape: Flat flower, round flower, craft flower, bulk flower, eggs, flowe and others.
5. Processing material: stainless steel pipe, iron pipe, aluminium pipe.
6. Machinable diameters range: 6-150mm.
7. Machinable thickness range: 0.2-5.0mm.
8. Features: Good processing quality, low cost and high efficiency characteristics.
Main technical parameters:
| Item | 25 model | 51 model | 76 model | 114 model |
| Mould size(W*L*H) | 35*300*55 | 50*300*75 | 70*400*60 | 90*650*70 |
| Tube diameter(mm) | Φ12-Φ25 | Φ25-Φ51 | Φ51-Φ76 | Φ38-Φ114 |
| Tube thickness(mm) | 0.25-0.5 | 0.3-1.2 | 0.7-1.5 | 0.7-1.5 |
| Forming length(Max) | 290 | 290 | 360 | 600 |
| Forming time(S/time) | 3-12 | 3-20 | 8-30 | 10-40 |
| Main motor power(KW) | 3 | 4 | 7.5 | 11 |
| Rotation speed of main shaft(r/min) | 300 | 200 | 200 | 200 |
| Machine weight(kg) | About 1500 | About 2000 | About 3000 | About 5000 |
Tube mould

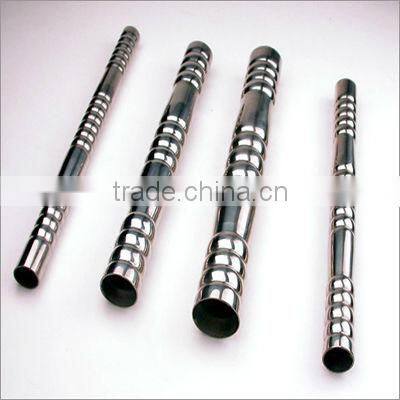

Stainless steel embossed tube
