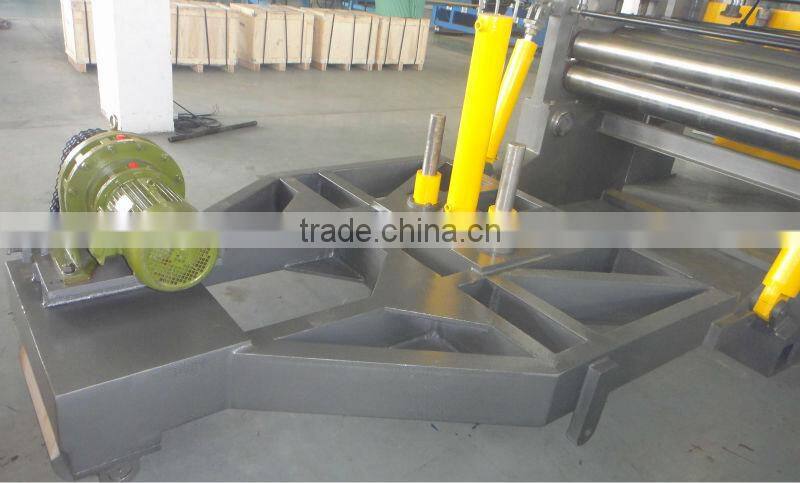

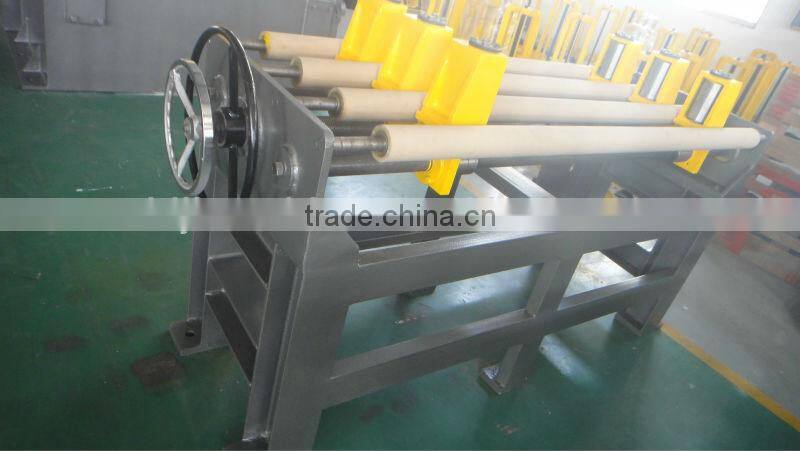

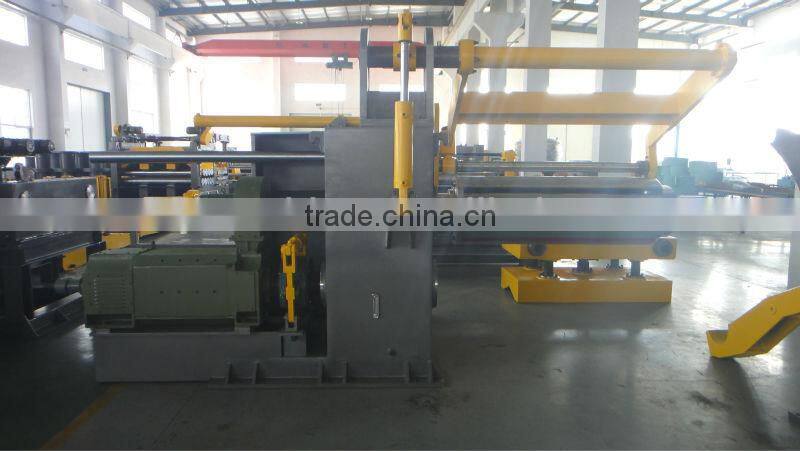

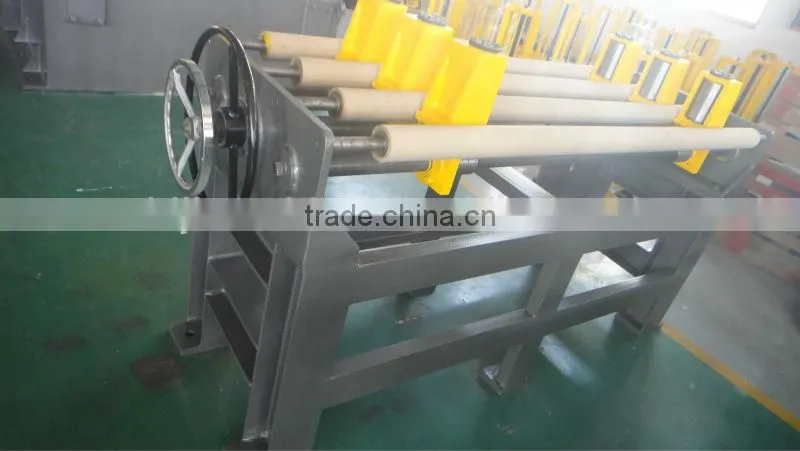

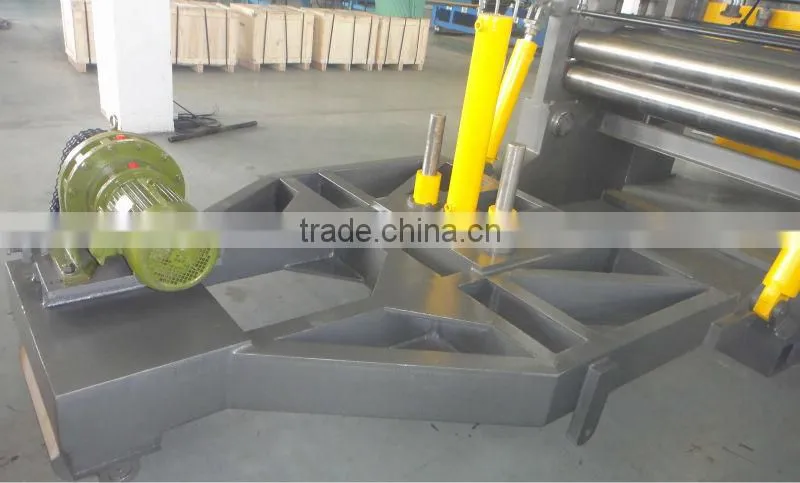

Help CenterWTM-(3-10)*2000mm High Speed Slitting Machine
Related Products
-
WTM-(3-6)*1800mm Steel Coil Slitting MachineNegotiableMOQ: 1 Set -
WTM-(2-8)*1600mm Steel Sheet SlitterNegotiableMOQ: 1 Set
-
WTM-(0.5-4.0)*1600mm Automatic Slitting LineNegotiableMOQ: 1 Set
-
WTM-(0.3-3.0)*1600mm Automatic Steel Coil Slitting MachineNegotiableMOQ: 1 Set
-
WTM-(0.3-1.0)*1000mm Steel Sheet Slitting LineNegotiableMOQ: 1 Set
I. Introduction:
This middle thick sheet slitting line, also called metal coil slitter, is a kind of production line to break down master coils into smaller coils of a particular width. The slitting line is made up of coil-loading car, single mandrel uncoiling, coil-end-feeding and shoveling, double roller pinching feeding, three-roller-leveling, end-cutting, strip-aligning, disk shearing, scrap reeling, hole accumulator, pre-separator, tensioning, recoiling ,coil down car, hydraulic control, and electric control.
Because of the thickness of slitting sheet, the coil slitting line can be divided into thin coil slitting line, middle thick sheet slitting line and thick coil slitting line. Among them, the middle thick sheet slitting line: strip thickness: (2-8) mm, (3-6) mm or (3-10) mm; strip width: 600-1600 mm, 600-1800mm or 600-2000mm.
II. Advantages:
1. The middle thick sheet slitting line is controlled by electrical controls system, a key to increasing yield; while the traditional one is adjusted by operators.
2. Offline setup, push-button slitter tooling lock-up, powered indexing tension rolls, quick-change tooling bars and automatic transmissions are on all DC motors.
3. Some design elements on this coil slitting line improve the high yield output, including slit edge quality, straight-wall slit coils as well as the ability to hold tight slit strip tolerances.
III. Main technical parameters:
Strip thickness: 3-10mm
Strip width: 600-2000mm
Inner diameter of coils: φ508mm, φ610mm, φ760mm
Max.outer diameter of coils: φ2000mm
il weight: 30000kg
Uncoiling mandrel: φ508, φ610, φ760
Leveling roller: φ160
Material of leveling roller: 40
CrMaterial of disc cutter: SKD-II
Recoiling spindle: φ508×1850mm
Slitting speed: 0-80 m/min, adjustable
