Help CenterSlitting Line for Steel Strip
Related Products
I. Introduction of the slititng line:
Slitting line machine is not only for the steel serivice cutting industry, but also for the pipe industry. A lot of customers make the pipes before slitting the large coil to the small size of coils.
Slitting line can do uncoiling, slitting and recoiling works, make coil steel to any needed width coil steel. It mainly includes coil car, uncoiler, coil guide, slitting machine, scrap winder, tension unit, recoiler and coil car, hydraulic system, etc. It mainly used in coil or hot rolled carbon steel, silicon steel and all the other kinds of metal materials with surface spreading.
This line can be adjusted to do recoiling or dividing work to meet customer’s demand.
II. Consist of the metal slitting machine:
1. Coil car

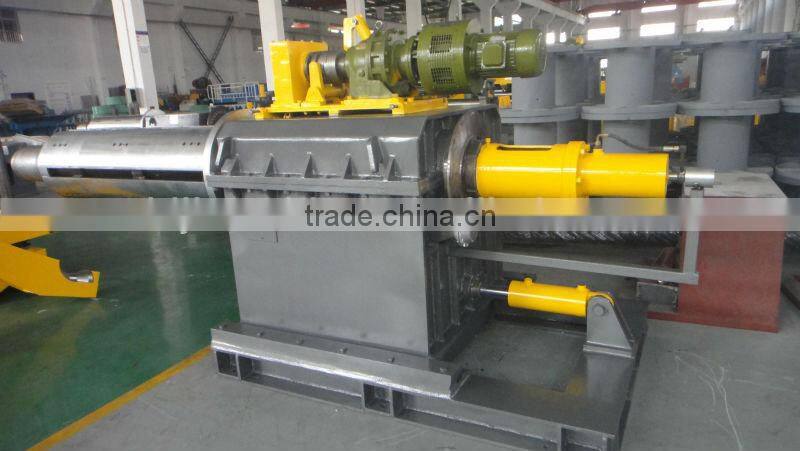

2. Decoile
3. Peeler entry table

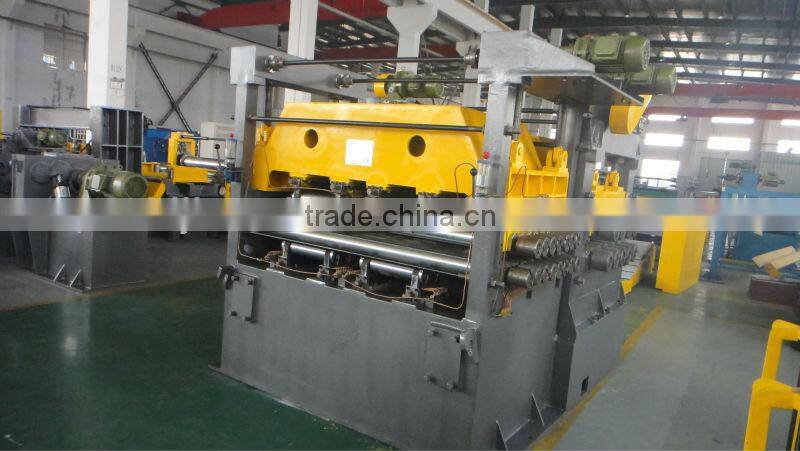

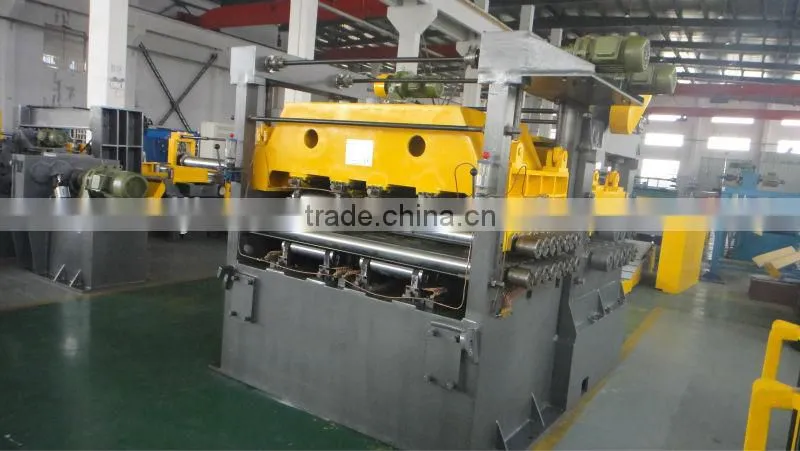

4. Straightener
5. Shearing machine

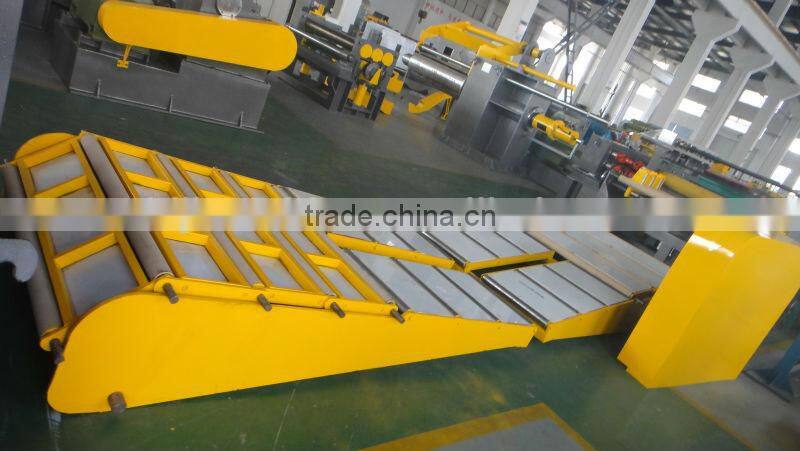

6. Loop table
7. Coil guide and pinch roll
8. Slitting machine
9. Scrap winder (both sides)
10. Loop table
11. Separator and tension table
12. Deflector roll and exit threading table

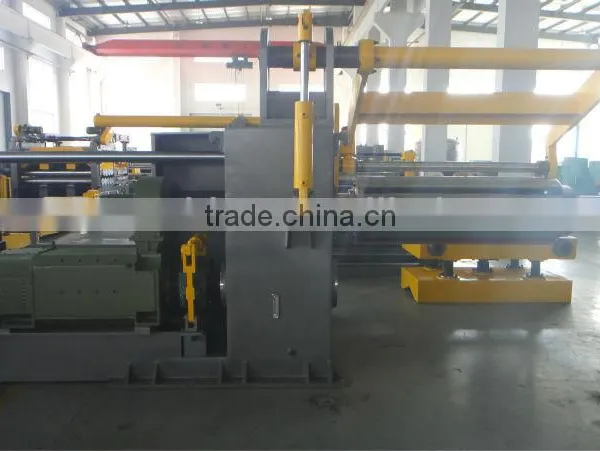

13. Recoiler
14. Over arm separator in the recoiler.
15. Exit coil car for recoiler
16. Hydraulic system
17. Pneumatic system
18. Electrical control system
