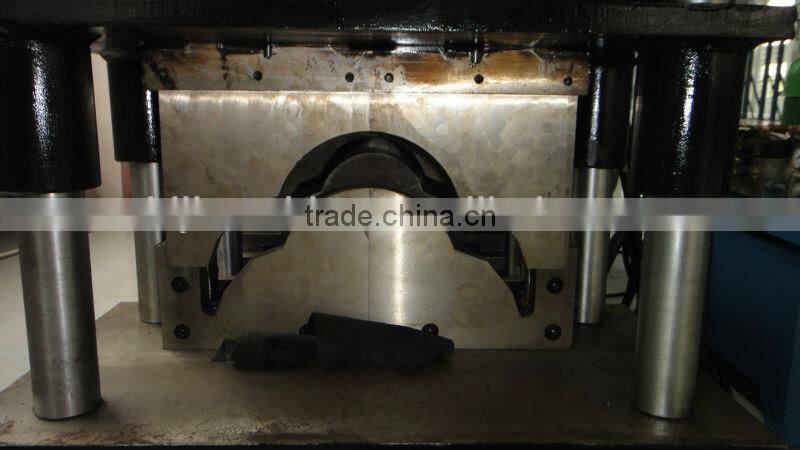

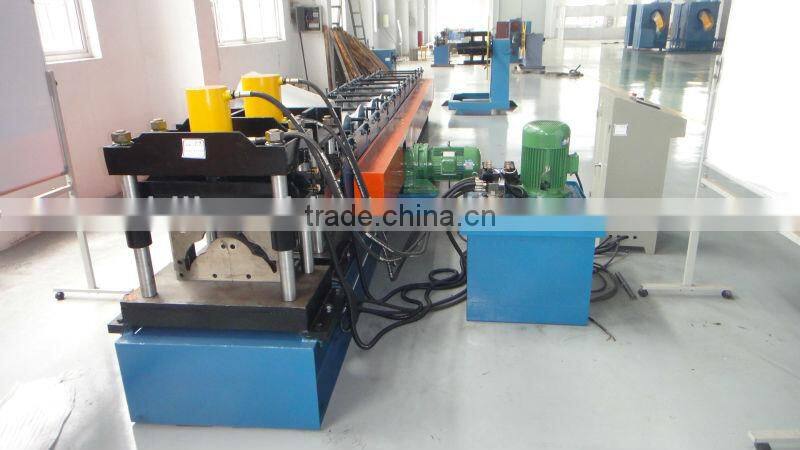

Roof ridge cap roll forming machine

I. Main features of roof ridge cap roll forming machine:

Our roof ridge cap roll forming machine can form metal ridge which is mostly used with colorful roofing tile sheets. After roll formed by this machine, the surface will be smooth and beautiful without any scratch on surface.

The roof ridge cap is widely used in many kinds of industrial factory, civilian buildings, and wall board for attached part product. It has advantage of pretty appearance, durable using and so on. It is producted continuously as roll forming machine instead using bending machine to make angle tile saving human resources, lower labor cost.

II. Technological process:

Uncoiling—Feeding—Leveling—Punching—Roll forming—Cutting—Products

III. Main technical specifications of roof ridge cap roll forming machine:

Steel thickness: 0.4-0.8 mm

Forming speed: 3-6 m/min

Roller stands: 16 stand

Roller material: 45# steel, coated with chrome

Main motor power: 7.5 kw

Hydraulic cutting power: 4 kw

Hydraulic pressure: 10-12 Mpa

Power supply: 380V,50HZ, 3 phase

Tolerance: 1.5 mm

Material of cutting: Cr12

Control system: PLC with touch screen

Machine net weight: 8 T
