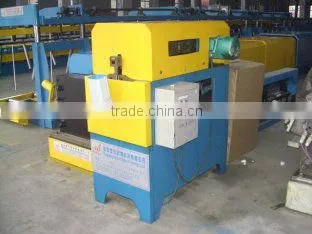

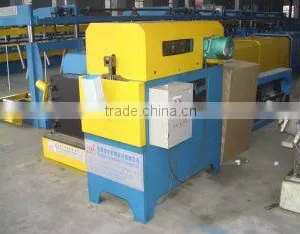

I. Description of down pipe roll forming machine:
Down Pipe Roll Forming Machine with Production for Rain Water Storage Solution
Downspout (Down pipe) is a pipe for conveying rain water from a roof or gutter to the ground, also referred to as Leaderpipe, Downpipe, or Drainspout. The downspouts are more and more widely applied in rain water storage solution. Downspout disconnection (sometimes called roof leader disconnection) represents a cost-effective on-site alternative for reducing the volume and cost of stormwater that requires public management. Runoff from residential rooftops is collected by eaves troughs, which are installed along the edge of the roofline. Water collected in the eaves trough is conveyed to ground level by one or more downspouts. Downspouts may then connect directly into the storm sewer system into a combined storm and sanitary sewer system. Disconnecting downspouts brings a number of economic and environmental benefits to the municipality and the homeowner
Our roll forming line of downspout machines run copper, steel, or aluminum. These are also ideal for piping for the HVAC industry for small sizes ductwork.
II. Main features of downspout roll forming machine:
The whole production line is controlled by PLC;
The downspout roll forming machine mainly consists of decoiler, roll forming system, cutting equipment, protective guard, hydraulic system, control system and out table. It can make curve for down pipe to meet the requirement of practical engineering projects.
III. Technological process of downpipe roll forming machine:
Uncoiling---Feeding---Leveling---Punching----Roll forming---Cutting---Products collecting
IV. Technical parameters:
Steel thickness: 0.5-0.8mm
Forming speed: 8-10m/min
Roller stands: 20 stand
Roller material: 45# steel, coated with chromeMain motor power: 3kw
Shaft diameter: 80mm
Hydraulic cutting power: 7.5kw
Hydraulic pressure: 12Mpa
Power supply: 380V 50HZ 3 phase
Tolerance: 1.5mm
Material of cutting: Cr12
Control system: PLC with touch screen
Machine net weight: 10T
