I. Description of C/Z interchange purlin roll forming machine:

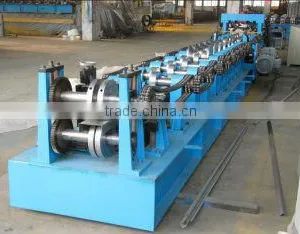

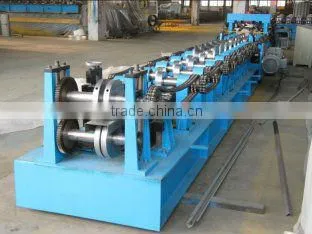

C / Z Interchange Roll Purlin Forming Machine for Supporter of Roof and Wall
The C and Z purline forming line has advantage of automatic fixed-length cutting automatic punching. Besides, its installation is convenient having high level automation. The purline produced by this machine has the feature of bending and pressing resistance with high level glancing flatness. This kind of products is mainly used for large and medium industrial or civil architecture including factories, storage locomotive sheds and aero plane sheds stadium, exhibition and Movie Theater and free market. Cold forming sectional steel is main material to produce light section steel structure produced by steel plate and cold forming sectional steel. The machine can produce variety kinds of profiles and cold rolled steels with regular thickness, but in complex section shape. Those products can not produced by general heat rolling method.
The products of C or Z shape purline forming machine have excellent anti-bending property and areeasy to install. They are widely used as the supporter of roof and wall in large-scale and mid-scaleconstruction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.
II. Technical process flow:
Decoiling the Sheet—Sheet Guiding —Coil Strip Leveling—Roll Forming—Punching for horizontal hole—Punching for vertical hole —Measure Length —Cutting the Panel—Panels to the Supporter.
III. Main technical parameters:
(1) Suitable Coil Thickness: 2.0-3.0 mm
(2) Suitable Raw Materials: Q235 A
MACHINE COMPONENTS:
(1) Manual Un-coiler 1 set
(2) Leveling Device 1 set
(3) Roll-Forming M/C 1 set
(4) Hydraulic cutting (with four cutting mould) 1 set
(5) PLC Control System 1 set
(6) Product rack (un-powered) 1 set
