1. Profile drawing
2. Main technical parameters
Material: galvanized steel sheet
Sheet thickness: 0.15-1.0mm
Max. Input width: 1250mm
Number of stations: 18 stations
Rolling speed: about 12-20m/min
Structure: Wall panel
Way of drive: by chain
Electric Source: 380V, 50HZ, 3 phase, Also can satisfy customer’s require
Roll material: Gcr15 steel, heat treatment;
Main shaft material: 45# steel, quenching and tempering treatment;
Chain: material 45# steel, high-frequency hardening, pitch: 31.8; number of teeth: 10;
Main motor power: 5.5KW;
Cutting: use saw cutting. Blade material: Cr12Mov; Quenching HRC58-62;
Electric control system: Siemens system;
Machine size: 14000mm×2000mm×2400mm;
Total machine weight: about 14 tons.

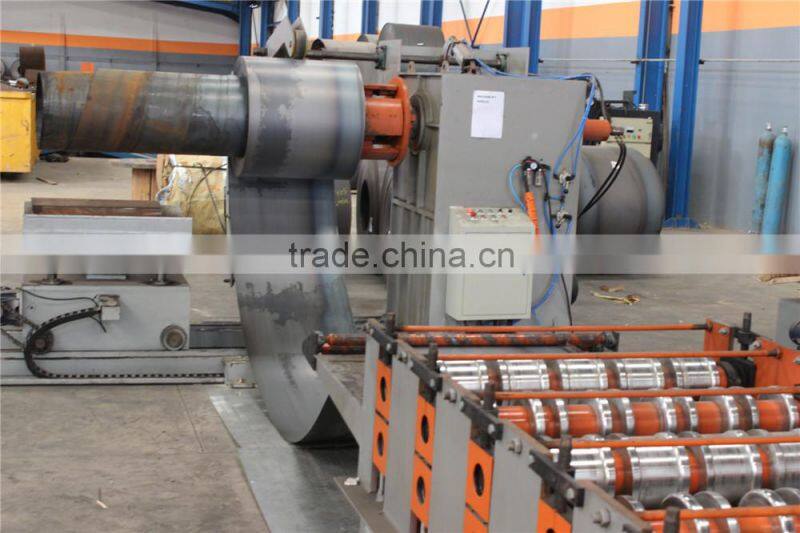

De-coiler; Roll Forming Machine Unit; Hydraulic Automatic Cutting Unit; Run Out Table; PLC Control Cabinet; Electrical system; Hydraulic system.
3. Technical process
De-coiler→ Feed with guide→ Roll forming→ Hydraulic cutting unit→ Run-out table→ PLC control system
