I. General Induction of Cut to Length Line:
Cut To Length Lines can do uncoiling, leveling, measuring, cross-cutting to length and stacking work. It mainly includes uncoiler, leveler, measuring encoder, shearer, conveyor, stacker, hydraulic system, pneumatic system and electrical system, etc., the line can make sure of accurate feeding and shearing. It can be widely used in cold or hot rolling carbon steel, tinplate, stainless steel and all the other kinds of metal materials with surface coating.
Cut to length line is controlled by NC servo system. It has PLC controlled the length measurement. The information of length, shearing numbers and speed can be input to the PLC systems. When the need shearing number is reached the line can stop automatically. The line speed can be adjusted, It has a encoder with high precision, and whole line can work automatically and operate easily, smooth sheet can be made.
II. Component of Metal Sheet Cut to Length Line:
1. Hydraulic loading coil car

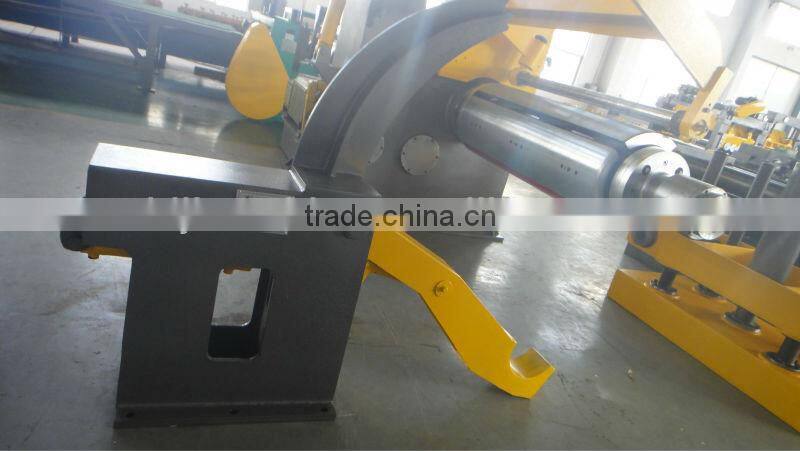

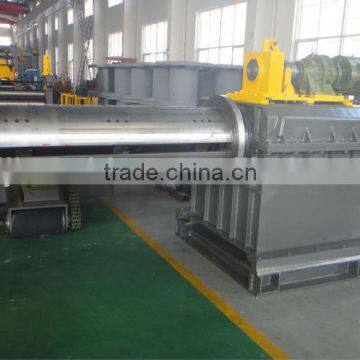

2. Hydraulic decoiler
3. Hydraulic supporting arm

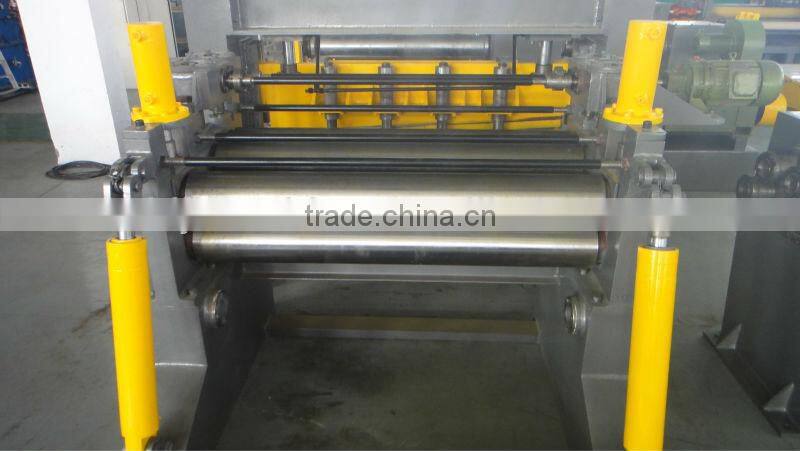

4. Leveller & length controller
5. Looping pit & transfer bridge
6. Side guider
7. Servo feeding system
8. Hydraulic shearing machine

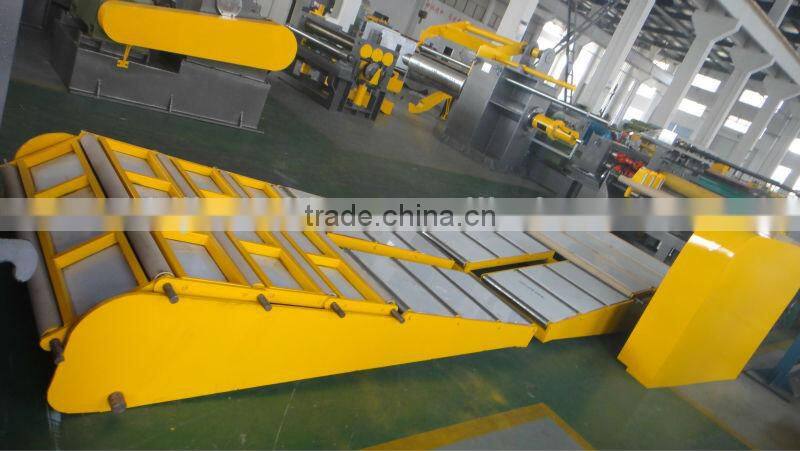

9. Conveyer table
10. Simple stacking system
11. Hydraulic system
12. Electric control system
III. Main technical parameters:
Specification |
Thickness (mm) |
Width (mm) |
Coil weight (T) |
Work speed (m/min) |
2×1600 |
0.2-2 |
600-1600 |
15 |
60 |
4×1600 |
1-4 |
600-1600 |
15 |
50 |
6×1600 |
1-6 |
600-1600 |
15 |
40 |
8×2000 |
2-8 |
800-2000 |
20 |
30 |
10×2200 |
3-10 |
800-2200 |
20 |
25 |
12×2200 |
3-12 |
800-2200 |
25 |
20 |
14×2200 |
4-14 |
800-2200 |
25 |
20 |
16×2500 |
6-16 |
1000-2500 |
35 |
20 |
20×2500 |
8-20 |
1000-2500 |
35 |
20 |
Remarks: We produce series of Cut to Length Machine for HR coil, CR coil, etc. according to clients' demand.
