Help CenterGJ-20A 0.15mm to 2mm 4 Axis Coil Spring Machine
Related Products
-
0.15mm-2mm CNC Compression Spring MachineNegotiableMOQ: 1 Set -
GJ-40A 0.8mm-3.5mm 4 Axis CNC Compression Spring MachineNegotiableMOQ: 1 Set
-
GJ-40B 1.2mm-4mm 4 Axis CNC Compression Spring MachineNegotiableMOQ: 1 Set
-
GJ-60A 2mm-6mm CNC Spring Coiling MachineNegotiableMOQ: 1 Set
-
GJ-80A 3mm-8mm CNC Spring Coling MachineNegotiableMOQ: 1 Set

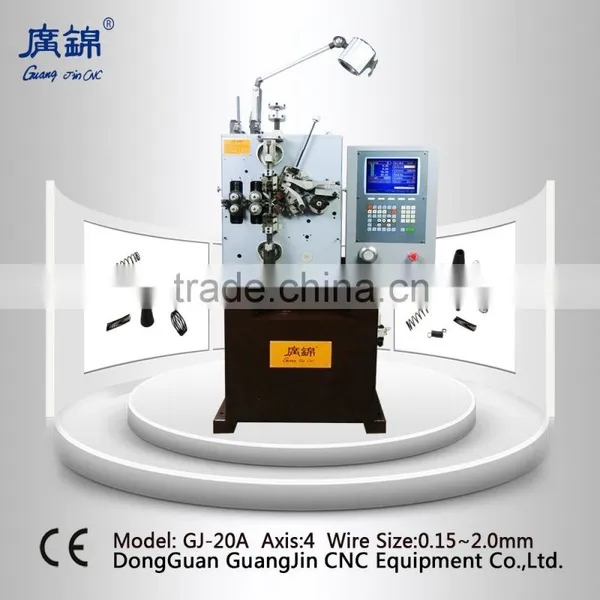

Machine Pictures
Features of GJ-20A coil spring machine
1, The hardware system highly integrated,so that failure rate is reduced to a minimum and the stability is improving greatly.
2, Don’t need to stop the machine can use hand- shaking wheel at anytime to change the speed of the machine
3, Simple repetitive programming cooperates with the probe speed can be set for producing flat springs etc., manifold cycles
4, ensure that the 100% Taiwan imported, superior quality
Technical Parameters
| Machine | Coill spring machine |
| Model | GJ-20A |
| Wire Size | Φ 0.15- Φ 2.0mm |
| Axis | 4 axis |
| Wind direction | Right and Left Hand |
| Feeding Length | ±0.1~±9999.99 |
| Wire feed speed | 0~150m/min |
| Cam Setting value | ±0.1°~±359.9° |
| Max Feeding length | Unlimited |
|
Wire feed servo motor Cutter servo motor Pitch servo motor Cam servo motor |
2.0kw 1.5kw 1.5kw 1kw |
| Power AC | 380v±10%V50HZ |
| Dimensions(L*W*H)mm | 540*800*1300 |
| Weight | 650kg |
Sample
Our Advantage
1, 12 years' experience in this area
2, Experienced employee and international famous components make the machine high stable and accuracy.
3, We research and develop new machines or modify machines according to clients' products.
4, Get trusted by famous company, Midea, TK, etc. And, our machines art exported to more than 10 countries.
Service
1, Making samples for free after getting your order
2, 1 year warranty
3, Free training to your engineer
4, Lifetime maintenance
Company profile
Dongguan city guang jin CNC equipment co., LTD Is engaged in the computer spring machine, compression spring machine, professional production, research and development, design, sales, service as one of the famous high-tech enterprises in guangdong province, product marketing in Europe and southeast Asia and other countries and regions,deeply domestic and foreign customers favor!"Guang jin" can be the development and manufacture according to customer's personalized needs of different specifications of the models.
