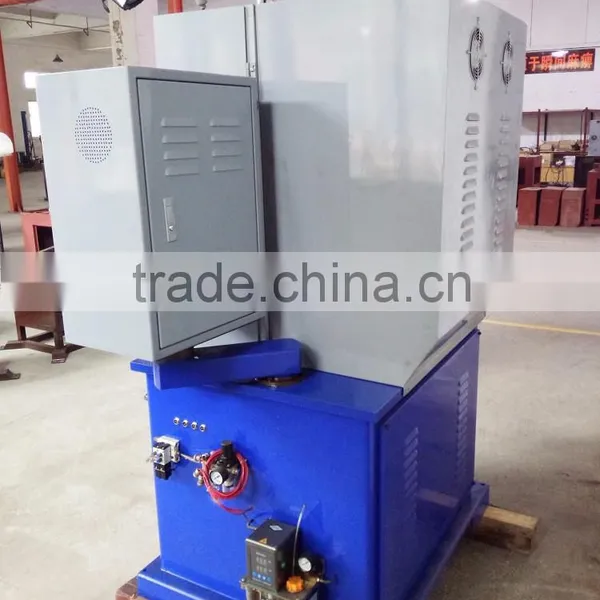

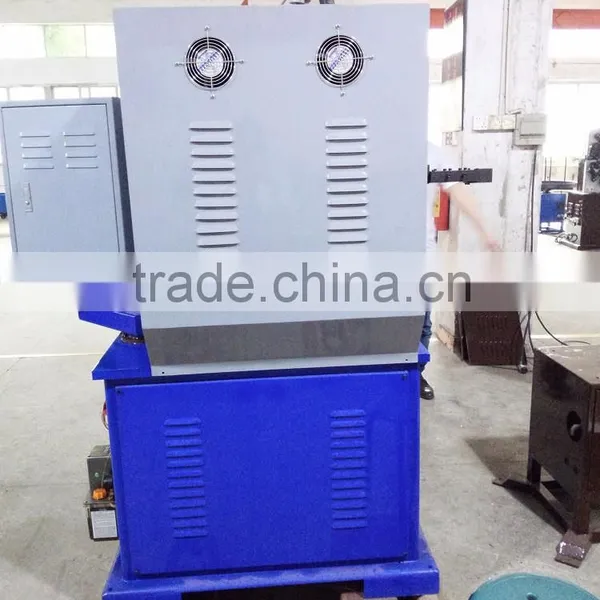

GJ-40B CNC spring coiling machine
Description
1,The hardware system highly integrated,so that failure rate is reduced to a minimum and the stability is improving greatly.
2. Customers can upgrade the software system by RS232 communication controller port at any time.
3.Don’t need to stop the machine can modify the processing program
4. Don’t need to stop the machine can use hand- shaking wheel at anytime to change the speed of the machine
5,Simple repetitive programming cooperates with the probe speed can be set for producing flat springs etc., manifold cycles
6, ensure that the 100% Taiwan imported CNC system, superior quality
7, Can according to the customer request to match length gauge.
Technical Parameters
| Model | GJ-40B spring coiling machine |
| Wire Size | Φ1.2- Φ4.0mm |
| Axis | 4 axis |
| Wind direction | Right and Left Hand |
| Feeding Length | ±0.1~±9999.99 |
| Wire feed speed | 0~120m/min |
| Cam Setting value | ±0.1°~±359.9° |
| Max Feeding length | Unlimited |
|
Wire feed servo motor Cutter servo motor Pitch servo motor Cam servo motor |
5.5kw 2.7kw 2.7kw 2.7kw |
| Power AC | 380v±10%V50HZ |
| Dimensions(L*W*H) | 750*1150*1600mm |
| Weight | 1500kg |
Coil spring Samples
Packaging
The spring machine are packed in a very fir wood case, and the machines are protected by plastic film inside.
Company profile
Dongguan city guang jin CNC equipment co., LTD Is engaged in the computer spring machine, compression spring machine(spring coiling machine), professional production, research and development, design, sales, service as one of the famous high-tech enterprises in guangdong province, product marketing in Europe and southeast Asia and other countries and regions,deeply domestic and foreign customers favor!"Guang jin" can be the development and manufacture according to customer's personalized needs of different specifications of the models.

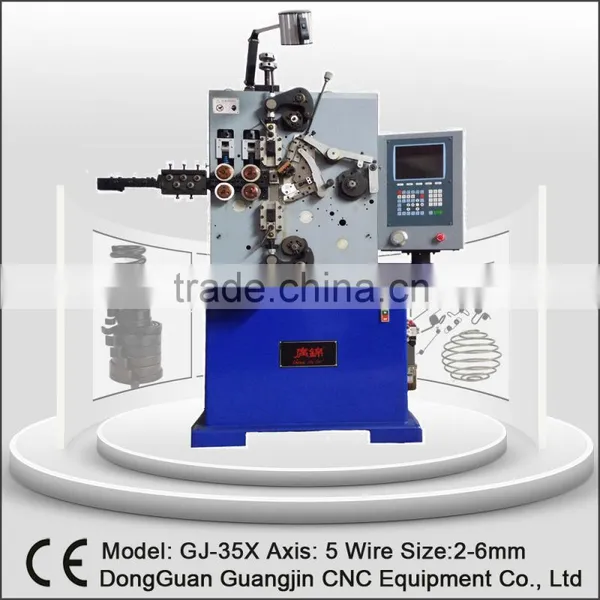

OUR MACHINES
