amusement ride pixel led lights 36mm 6 leds
1. Amusement ride pixel led lights 36mm 6 leds is the upgrades version of our hot sell ucs1903 26mm rgb led pixel lights.
Why we say this? Got many many positive feedfbacks from our customer that if could do much bigger, much brighter but keep 26mm pixel led's shape. Based on the 26mm rgb led pixel lights to creat this new 35mm 6 pixels rgb led pixels to meet clients's requirements.
2. Amusement ride pixel led lights 36mm 6 leds with 6 pcs 5050 smd lamp and a ucs1903 chip soldered to the fiber PCB board, the total luminous intensity of all LEDs can be 36-48 lm. 1.44w power consumption and more than 50,000 hours long lifespan, multiple color chnge effects can be programmed in the software and played perfectly via the controller such as sd card led pixel controller t1000s, DMX.
3. The amusement ride pixel led lights 35mm diameter 6 pixels is individually piece, has two 3pin JST-SM conductor cables
Thanks to the connectors, multiple 35mm rgb led pixel lights could be chained, as many as you wish, just watch for how much current they need.
4. There are two covers are available to choose too, frosted white and transparent cover.Transparent cover is the most popular.
5. When linking multiple 35mm rgb pixel leds together, power should be split and applied to each strand, If you try to powr too many LEDs from just one end of the strip, they'll start to "brown out" the further they are from the power supply. We recommedn connect up to 20 pcs of 35mm rgb 6 pixels leds in a series for better use.
6. They're sealed with silicon gel (IP66), making them weatherproof for outdoor use.
IP68 is available to do now, with the waterproof connector, just the delivery time is a little longer, please note this.
7. This amusement pixel leds widely used for decorating the surface of buildings, amusemet rides, theme parks, ferris wheel, etc
In additional, Although these 6 pixels lights are fairly large pixels, no need to worry about the installation, they are easy to mount, with the screw threadsd on the cover and extra nuts.
Features for amusement ride pixel led lights 36mm 6 leds
Product | amusement ride pixel led lights 36mm 6 leds |
operating voltage: | 12V / 24v |
power: | 1.44W |
light source: | 6x SMD5050 RGB Chip |
Beam angle: | 120° |
Lifetime: | 50.000 hours |
grade: | IP66 |

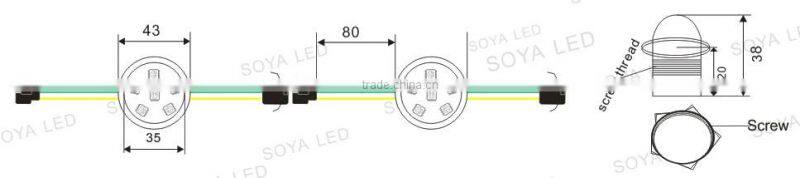

dimension (D x H): | 35x 38mm |
Cover | Transparent cover & Frosted cover |
IC chip | UCS1903 / 2903 |
Each LED chip has three light sources with the following wavelengths and light intensities
Color | wavelength | luminous |
Red | 620 - 640nm | 3.4 Lumen |
Green | 510 - 530nm | 8.9 Lumen |
Blue | 460 - 480nm | 2.3 Lumen |

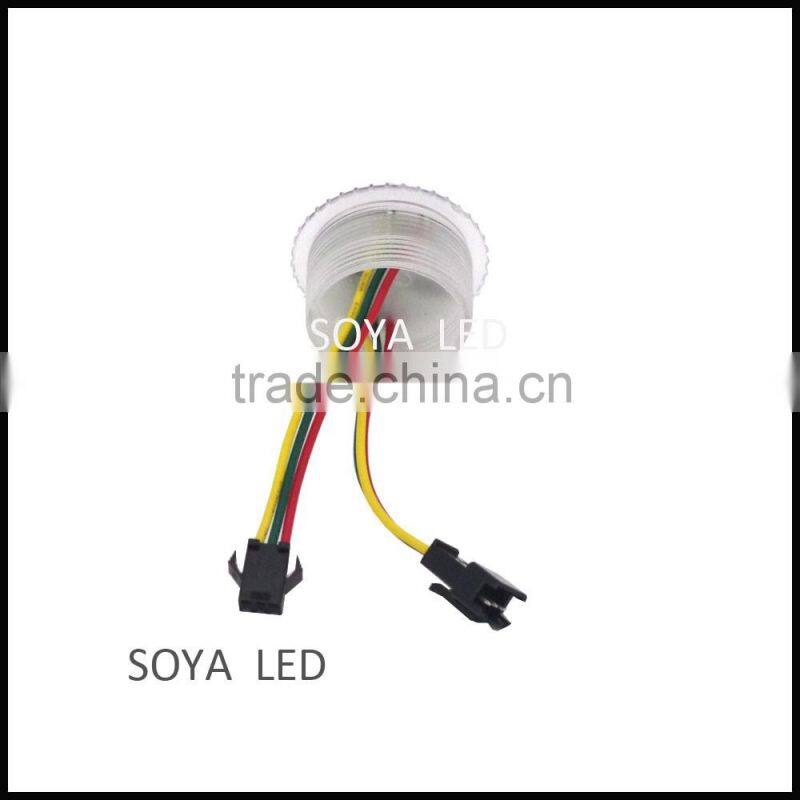

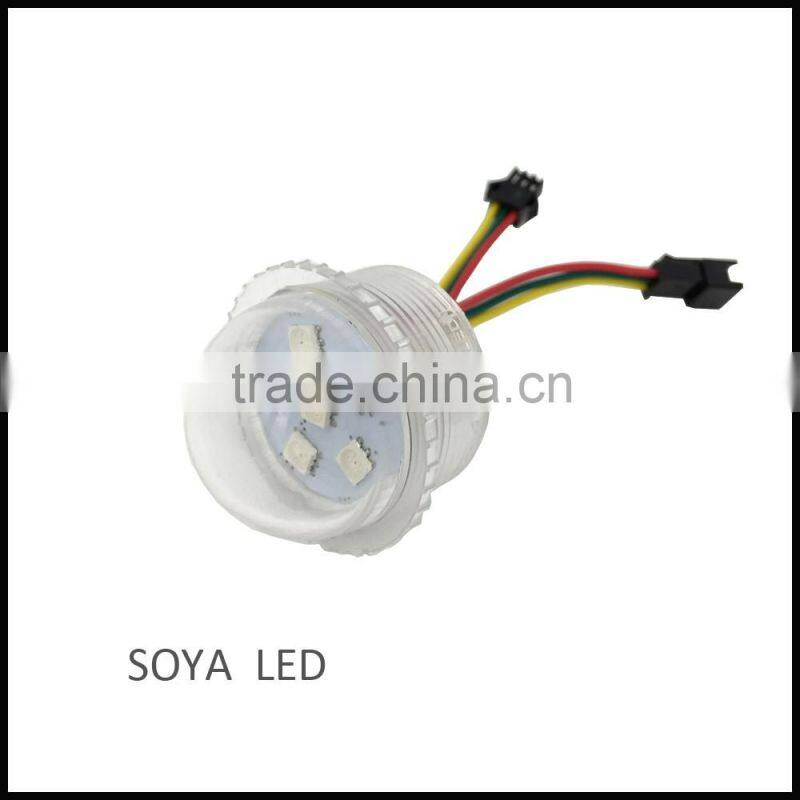

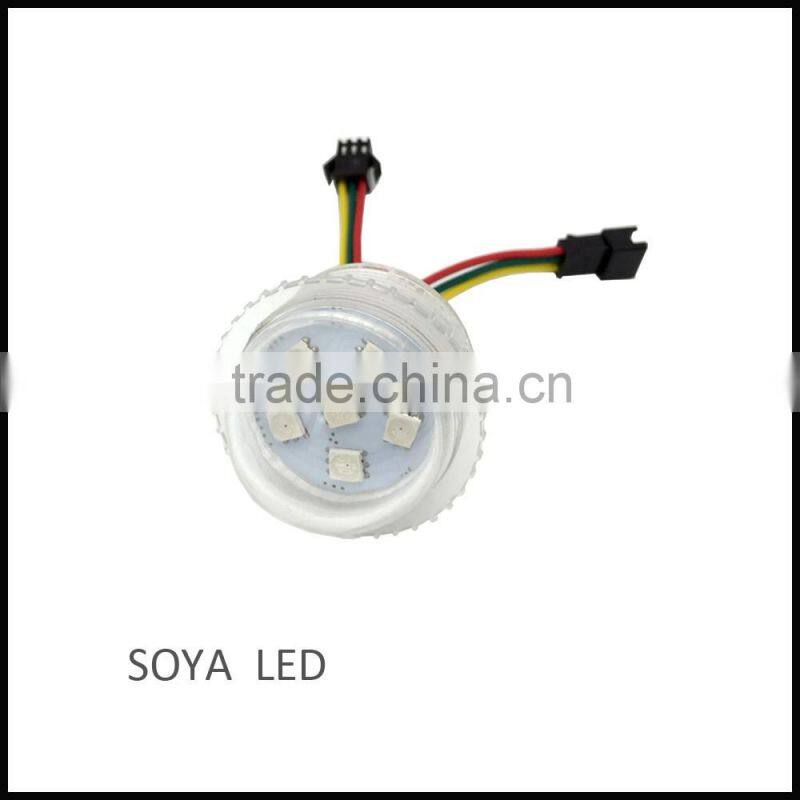

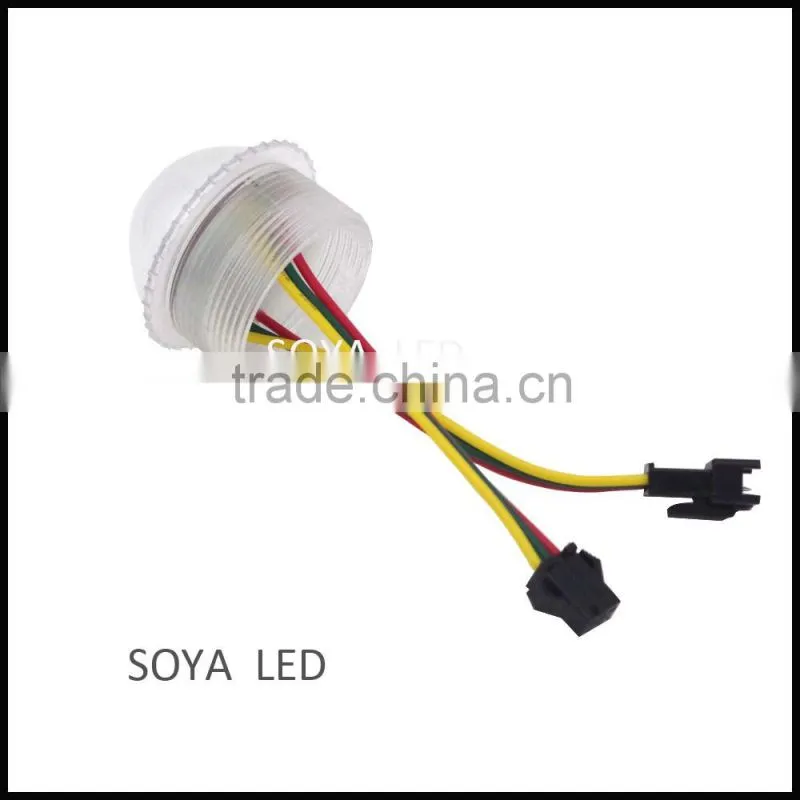

amusement ride pixel led lights 36mm 6 leds detailed images

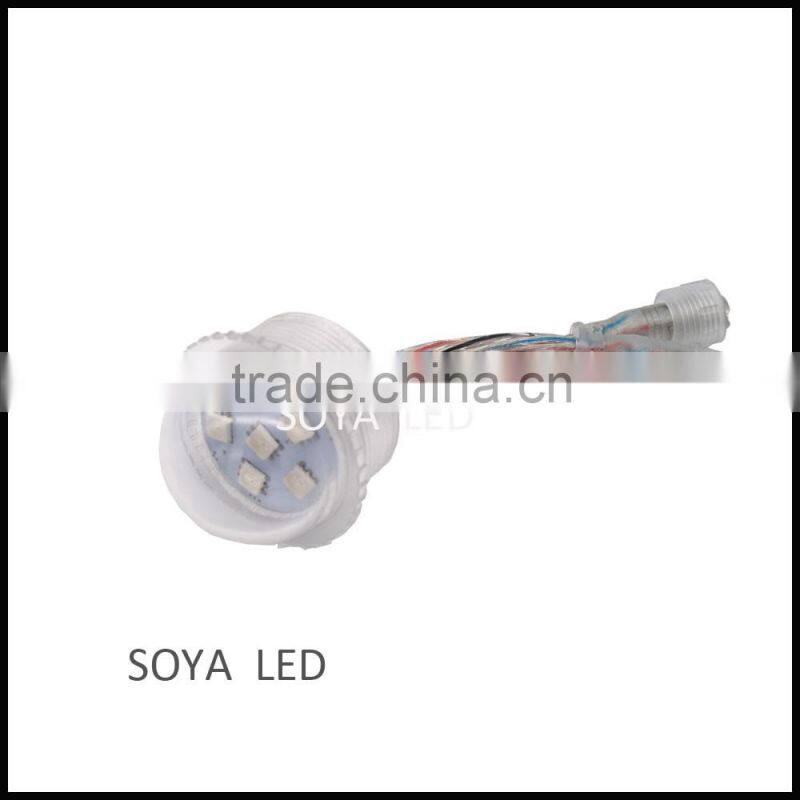

35mm 6 pixels rgb led pixel light with waterproof connector

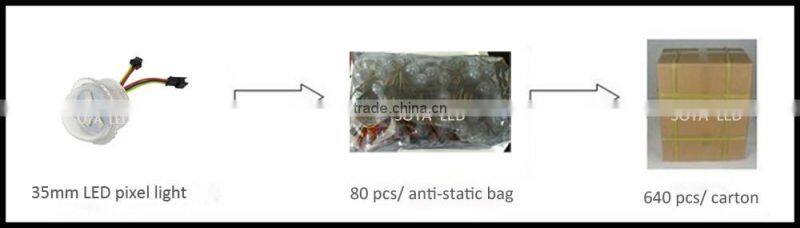

amusement ride pixel led lights 35mm diameter 6 pixels package
Trade Terms
1. Payment Terms:
T/T, Western Union, Aliexpress Escrow
2. Lead Time:
Usually we had materials in stock, regular order delivery time 1--7days after the profoma invoice paid,
OEM products: 10--15days (Customized PCB board).
3.Warranty:
2 years warranty since the data of purchase our LED products.
4. Delivery Way:
DHL, Fedex, TNT UPS, EMS door to door service, by sea, by air, etc
