Breif Intruduction

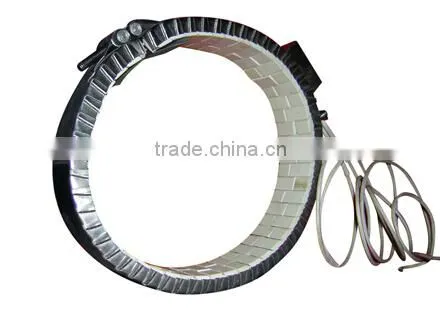

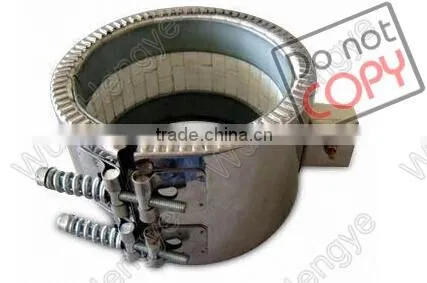

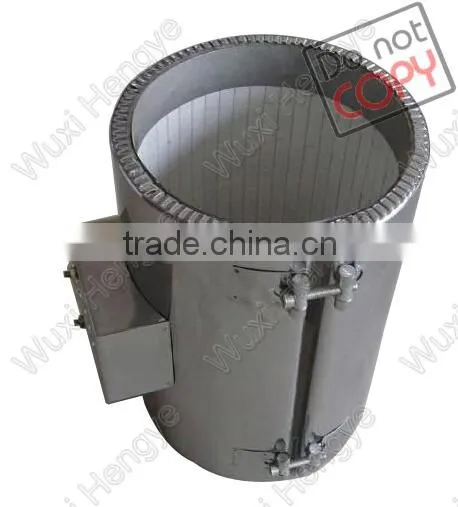

Band heater for injection molding machine ,They are designed to heat up cylindrical parts by conduction.
They are used in many manufacturing processes such as the injection, extrusion and moulding processes or other specific applications
such as tank heating and they are to be found in many industries such as the plastic processing industry, the car industry, chemical and food processing industries, etc.

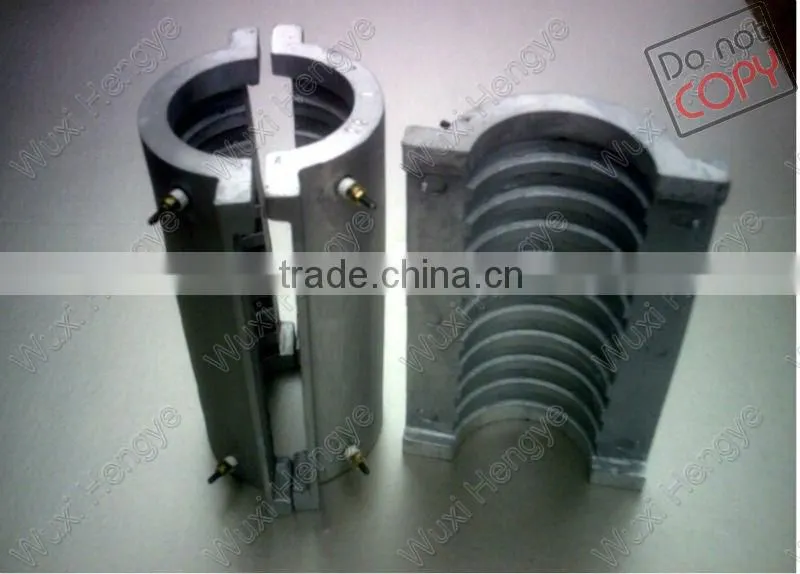

Features for Cast Copper Heater
Efficient Heat Transfer.

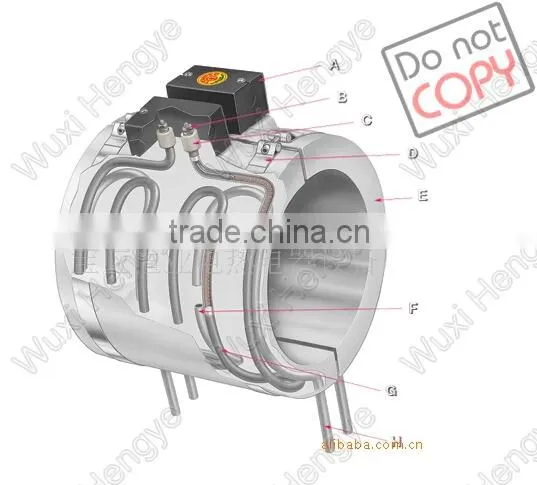

Cast-in heaters can be supplied with cooling tubes & end fitting.
Various Heater terminations.
Uniform surface temperatures.
Also as per your requirements.
Max watt density:
Aluminum alloy - 35 w/sq in on heater elements.
Brass alloy - 45 w/sq in on heater elements.
Max temp:
Aluminum alloy - 375 °C
Brass alloy - 650 °C
Applications
1, Dies
2, Cylinders and drums
3, Holding Tanks
4, Plastic film extruders
5, Injection and blow Moulding machine
6, All Plastic & Rubber Processing Machinery.
When you order, please specify
1, The dia and height of the heater
2, The power and voltage of the heater
3, The length of the lead wire
4, Quantity
