Sigma Mixer Food

Sigma Mixer Food thumbnail-1
Sigma Mixer Food thumbnail-2
Sigma Mixer Food thumbnail-3
Sigma Mixer Food thumbnail-4
Sigma Mixer Food thumbnail-5
Sigma Mixer Food thumbnail-6

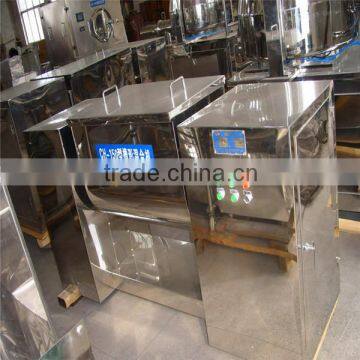

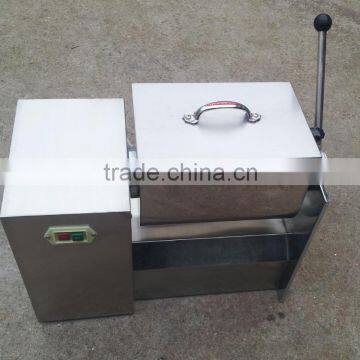

Sigma Mixer Food photo-1
Sigma Mixer Food photo-2
Sigma Mixer Food photo-3
Sigma Mixer Food photo-4
Sigma Mixer Food photo-5
Sigma Mixer Food photo-6
US$ 2,600 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Paddle
Product Type:
Other, powder and liquid
Contact Supplier Request Quote Chat Now
Jiangyin Weiping Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port for Sigma mixer food
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Mixer Type Paddle
Product Type Other, powder and liquid
Application Liquid with Suspended Solids
Additional Capabilities Other, electric heating
Place of Origin Jiangsu, China
Brand Name WP
Model Number CH-200
Max. Loading Capacity 200L
Voltage 3 phase Customized
Power(W) 5500
Dimension(L*W*H) 1700*600*1020MM
Certification CE ,ISO
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

Sigma mixer food

Product Description

1.Applications

 As a stainless steel horizontal mixer, the machine is suitable for the mixing of target materials in powder or paste state evenly in pharmaceutical, chemical and foodstuff industries.



2.Working method

By driving of mechanism of the mixer, the S stir paddle turns the target material to and fro to mix it evenly. Electric control is applied to set the mixing time and the mixer will stop automatically when time is up, so as to improve mixing effect of each batch material.

Technology





 Model

CH-30

CH-50

CH-100

CH-150

CH-200

CH-300

CH-400

CH-500

CH-600

Type of paddle

 S Type of paddle

S Type of paddle

 S Type of paddle

S Type of paddle



SType of paddle





S Type of paddle





S Type of paddle





S Type of paddle





S Type of paddle



Working volume(L)

20

30

60

90

140

180

250

300

280

Mixing speed(rpm)

24

24

24

24

24

24

24

24

24

Turningangle(r)

<105

<105

<105

<105

<105

<105

<105

<105

<105

Agitation motor(kw)

0.75

1.5

2.2

3

4

5.5

7.5

11

15

 Discharging motor(kw)

0.12

0.55

0.55

0.75

0.75

1.1

1.5

1.5



 Overall dimensions (L×W×H)(mm)

1065×380
×520

1265×430
×720

1580×500
×830

1685×600
×1000

1850×600
×1000

2160×70
0×1200

2280×700
×1250

2450×700
×1250

2500×900
×1350



Weigh(kg)



150

200

300

650

720

750

780

820

850



The above is our technical data. We can also design and manufacture different varieties upon your request.

Detailed Images

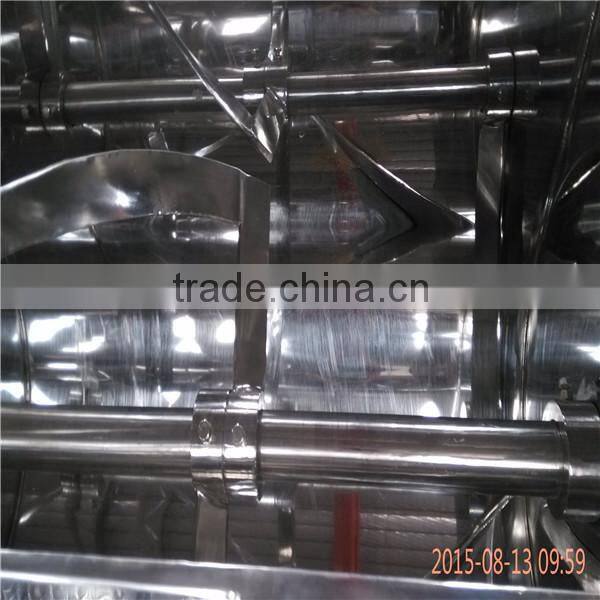

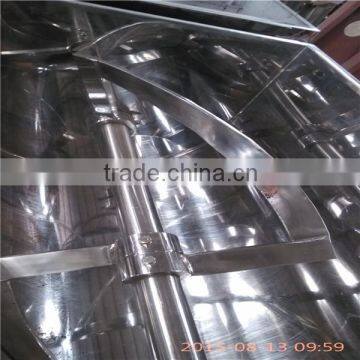

S single paddle

Sigma mixer food

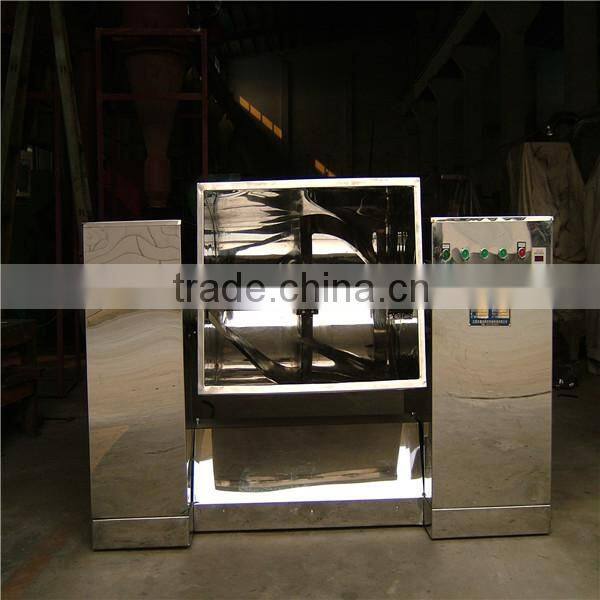

Trough Shape,Power control
Sigma mixer food

Company Information

Jiangyin Weiping Machinery equipment Co.,ltd is located in Zhutang Town,Jiangyin city,

Jiangsu Province,China.



Our company specializes in producing pharmaceutical machinery,food machinery,chemical machinery.We are a professional manufacturing factory with research,development and sales of medicine machinery.Through the rigorous testing system to ensure 100% qualified.

Main products:Pulverzier,sifting machine,mixer,granulator and dryer machine

Our company products in the market are welcomed and praised by customers.



PLS CONTACT us  If you are interested in this machine ,and have any questions about this machine!



CPHI & P- MEC China

Sigma mixer food

Packaging & Shipping

Sea standard Wooden cases or as costumer requirements

Sigma mixer food



Certifications

CE CONFIRMED

  Sigma mixer food



Our Services





A. Technical service

1, We calculate the capacity and recommend the best models.

2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.

3, We supply the spare parts and technical support in & after the warranty time.

4, We supply the training course to your workers at our factory if you need.



B. After-sales service

1, Technical support for your installation, operation and maintenance.

2, One year’s warranty, and you can pay for extended warranty.

3, Spare parts and technical support at most economic prices after the warranty.



FAQ

Why us ?

1.100% manufacturer

2.One-stop service without any outsourcing

3. Best Materials selection

4. Full equipped printing technology

5. On time delivery

6. Quality guarantee

7. Factory visit is welcome





How to choose a right mixer ?Could you share us

 1)your feeding material ;

 2)the moisture;

 3)the capacity(kg/time).







 4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...etc.

 (We usually provide 3P, because our machines are all for industrial use.)

5) Usually we use stainless steel SS304, if you want SS316,please tell us.

How to contact us?

Website:

Tel:+86-510-86380586





Fax:+86-510-86388305





TM:cn1515426317rxbf






Skype:Lanye0904

WhatsApp/WeChat:+86-18015386858
QQ:2536191568
