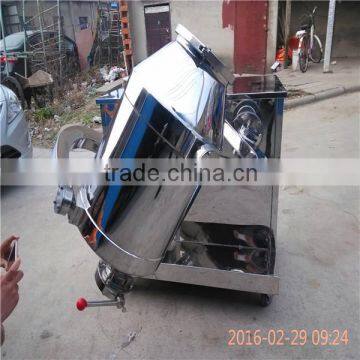

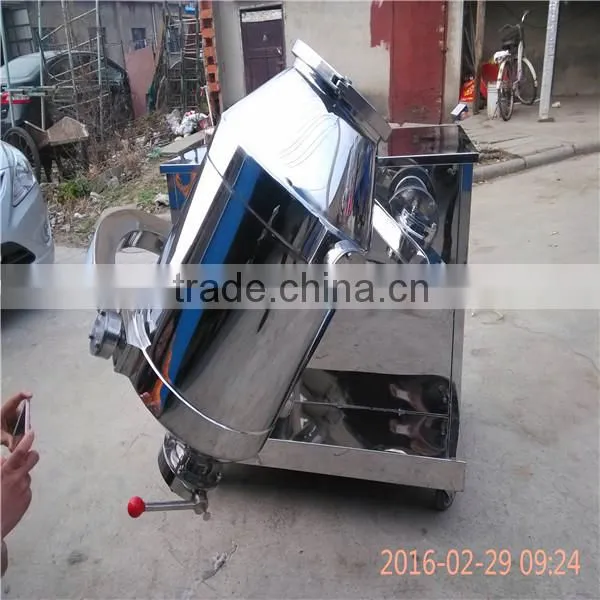

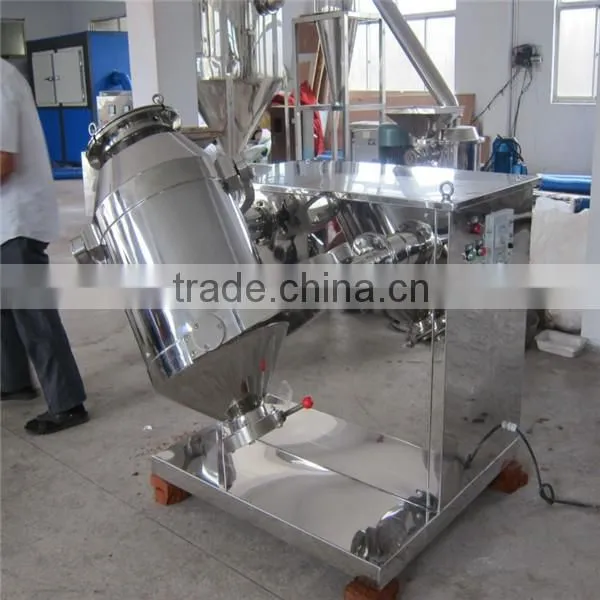

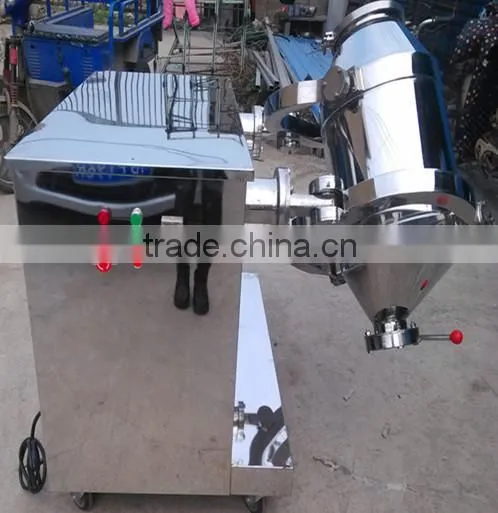

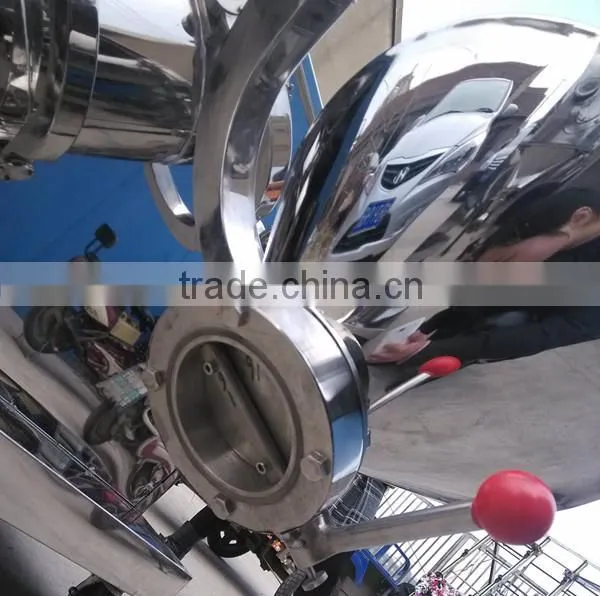

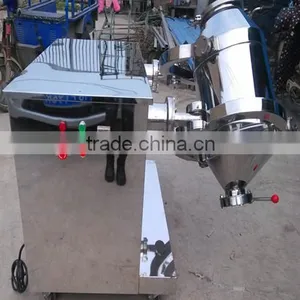

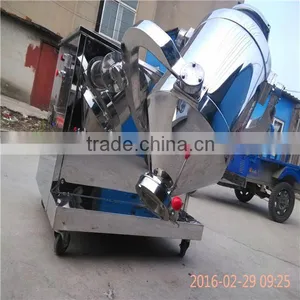

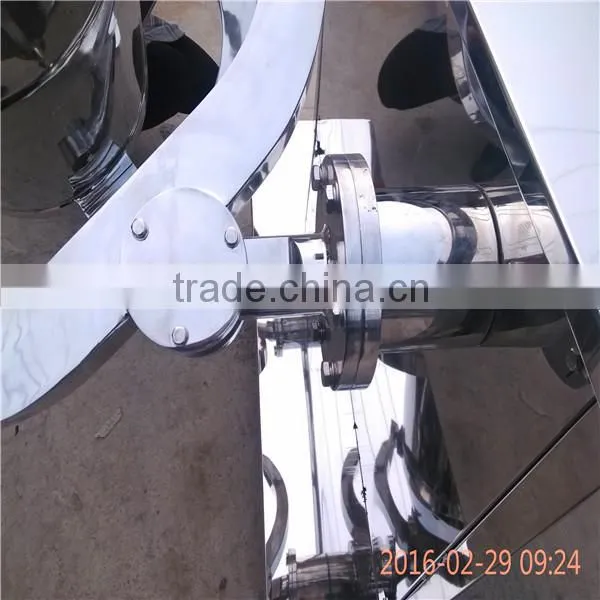

SYH series paprika powder
3d swing mixing machine
Applications
This machine is widely applied for the mixing of powder material in pharmacy, chemical, and foodstuff industries,
as well as for the quick and even mixing of various materials in different granules size and specific gravity.
Specifications
1. powder mixer machine
2. made of SS304/316L
3. best mixing effect currently
4.Inverter (Changed mixing speed)
5. CE
Features
With its unique three-dimension swing, parallel moving and rolling principle, the mixer can generate a strong pulse movement to push forward and mix the target materials continuously. The excellent mixing effects are the result of its changeable vortex movement that possesses the energy grads inside. It also has the merits of smooth running, low noise, high load factor and shortly mixing time as well.
Techinical Parameters
| Model | 50 | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
| Mixing barrel volume (L) |
50 | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
| Max. loading volume (L) |
40 | 80 | 160 | 240 | 320 | 400 | 480 | 640 | 800 |
| Max. loading weight(kg) | 25 | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
| Speed of principal axis(r/min) | 8-12 | ||||||||
| Power(KW) | 1.1 | 1.5 | 2.2 | 4 | 4 | 5.5 | 5.5 | 7.5 | 7.5 |
| Overall size (L× W× H) (mm) |
1000 × 1400 × 1100 |
1200 × 1700 × 1200 |
1400 × 1800 × 1500 |
1800 × 1950 × 1700 |
1800 × 2100 × 1800 |
1900 × 2000 × 1950 |
1900 × 2100 × 2100 |
2200 × 2400 × 2250 |
2250 × 2600 × 2400 |
| Weight (kg) | 300 | 500 | 800 | 1000 | 1200 | 1380 | 1500 | 2000 | 2500 |
The above is our technical data. We can also design and manufacture different varieties upon customer's request.
CE CONFIRMED
Jiangyin Weiping Machinery equipment Co.,ltd is located by the site of Taihu lake with the economic prosperity and beautiful scenery —Zhutang Town,Jiangyin city,Jiangsu Province.
Our company specializes in producing pharmaceutical machinery,food machinery,chemical machinery.We are a professional manufacturing factory with research,development and sales of medicine machinery.Through the rigorous testing system to ensure 100% qualified.

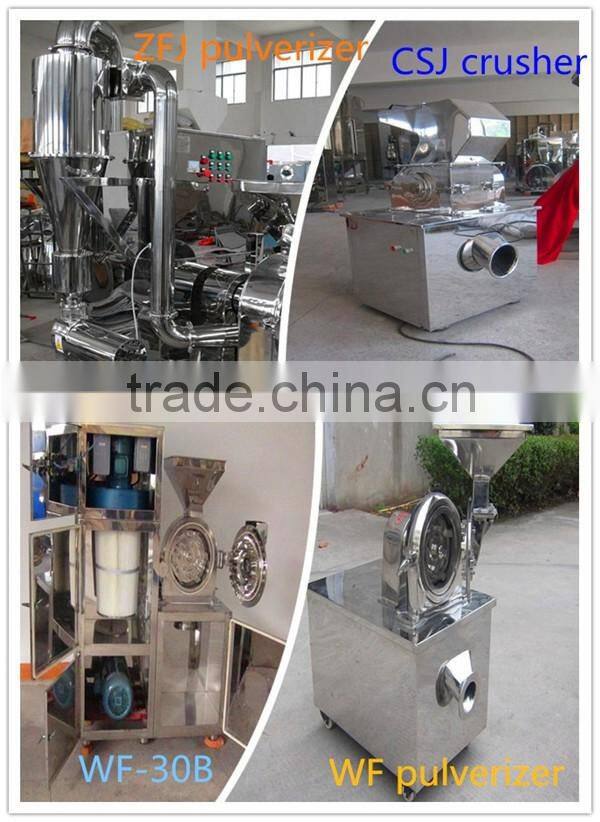

Main Five series products:Pulverzier,sifting machine,mixer,granulator and dryer machine
Our company products in the market are welcomed and praised by customers.
Sea standard Wooden cases or as costumer requirements
Why us ?
1.100% manufacturer
2.One-stop service without any outsourcing
3. Best Materials selection
4. Full equipped printing technology
5. On time delivery
6. Quality guarantee
7. Factory visit is welcome
How to choose a right mixer ?Could you share us
1)your feeding material ;
2)the moisture;
3)the capacity(kg/h).
