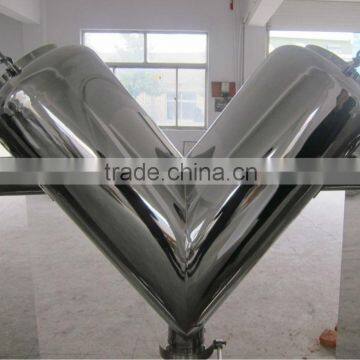

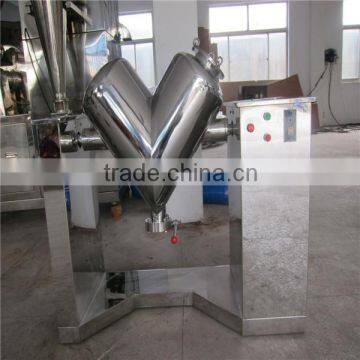

Stainelss Steel V Type Dry Mixing Powder Blender Machine

Stainelss Steel V Type Dry Mixing Powder Blender Machine photo-1
Stainelss Steel V Type Dry Mixing Powder Blender Machine photo-2
Stainelss Steel V Type Dry Mixing Powder Blender Machine photo-3
Stainelss Steel V Type Dry Mixing Powder Blender Machine photo-4
Stainelss Steel V Type Dry Mixing Powder Blender Machine photo-5
Stainelss Steel V Type Dry Mixing Powder Blender Machine photo-6
US$ 4,000 - 4,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Agitator
Product Type:
Other, chemical powder
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port for stainelss steel V type dry mixing powder blender machine
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Mixer Type Agitator
Product Type Other, chemical powder
Application Powder
Additional Capabilities Drying
Place of Origin Jiangsu, China
Brand Name WP
Model Number V-500L
Max. Loading Capacity 300L
Voltage 380V
Power(W) 2.2kw
Dimension(L*W*H) 2700*800*2050mm
Certification ISO 9000 CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas
stainelss steel V type dry mixing powder blender machine
Product Description

 1.Application: This series of machine are newly design, high efficient and high accuracy mixer. It is widely used for dry material grains in the field of medical, chemical, food, metallurgical and other industry.

 2.Working Principle: the machine is mainly composed of mixing tank, spiral agitating vane and transmission parts. There are two layers of spiral agitating vane. The outside vanes accumulate the material from side to center, while the inner vanes separate the material from center to side. So that material will mix to each other in convective mixing inside the tank. It’s high efficient.



Technology



GHJ Series High Efficient Mixer
model 0.18 0.3 0.5 1 1.5 2 2.5 3 4 5 6
productive capacity(kg/h) 72 120 200 400 600 800 1000 1200 1600 2000 2400
time of raw material fed in(min) 3-5 3-5 4-6 6-9 6-10 8-12 8-13 8-15 10-15 15-20 18-25
mixing time(min) 4-8 6-10 6-10 6-10 6-10 6-10 6-10 8-12 8-12 8-12 8-12
total volume(m³) 0.18 0.3 0.5 1 1.5 2 2.5 3 4 5 6
stirring speed(rpm) 12 12 12 12 12 12 12 10 10 10 10
power of motor(kw) 1.1 1.1 2.2 4 4 5 7.5 7.5 10 15 18.5
rotating height(mm) 1580 1760 2400 2840 3010 3240 3680 3700 4350 4800 5300
weight(kg) 280 320 550 950 1020 1600 2040 2300 2800 3250 3850



Detailed Images

 stainelss steel V type dry mixing powder blender machinestainelss steel V type dry mixing powder blender machine

stainelss steel V type dry mixing powder blender machine

stainelss steel V type dry mixing powder blender machine



Our Services



1) Professional advice and  rich experience help to choose machine.
2) Lifelong maintainance and considerate technical support

3) Technicians can be sent to abroad to install.

4) Any problem before or after delivery, you could find and talk with us anytime

5) Video / CD of test running and installation, Maunal book, tool box sent with machine



Certifications

 stainelss steel V type dry mixing powder blender machine



Trade Shows

 stainelss steel V type dry mixing powder blender machine





Packaging & Shipping

 woooden packing

stainelss steel V type dry mixing powder blender machine
