Product name:
YK Series Pharmaceutical Oscillating Granulator
Main applications:
By driving of mechanism,the swinging to-and-fro to force the target material squeezed from sieve to make out granules or to smash it as granules.
Working Method
The machine can make granules from wet power materials or break down the dry lumpish material,which is widely used by the industries of pharmacy,chemical and foodstuff.
Model |
YK-60 |
YK-100 |
YK-160 |
YK-250 |
Capacity(kg/h) |
5-30 |
30-200 |
200-300 |
200-500 |
Motor power(kw) |
0.37 |
1.1 |
3 |
5.5 |
Cylinder speed(r/min) |
48 |
55 |
55 |
38 |
Granulating diameter(mm) |
0.8-5 |
0.8-5 |
0.8-5 |
0.8-5 |
Cylinder dimeter(mm) |
Φ60 |
Φ100 |
Φ160 |
Φ250 |
Weight(kg) |
70 |
280 |
380 |
550 |
|
Overall size (L×W×H)(mm) |
530×450×580 |
700×600×1050 |
1000×800×1300 |
1050×890×1320 |

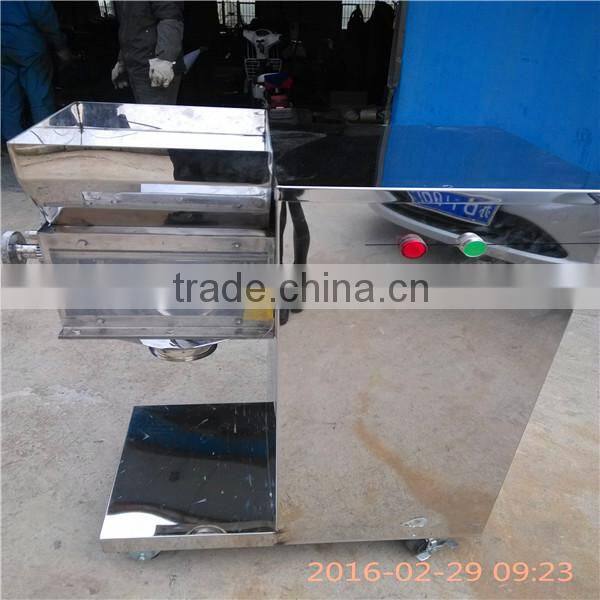

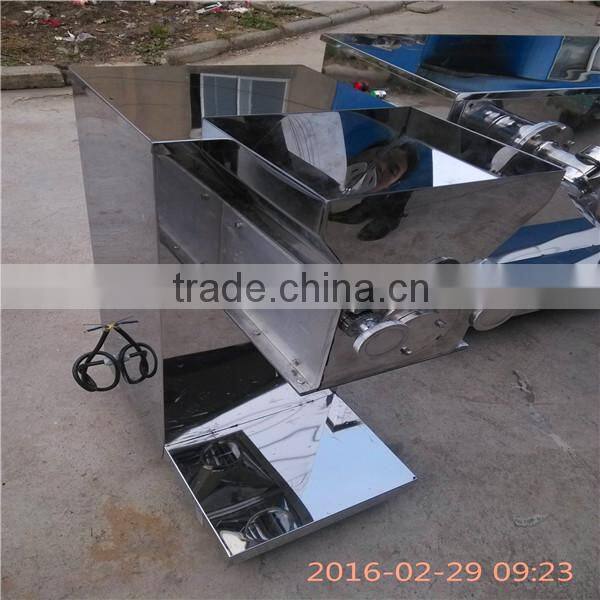

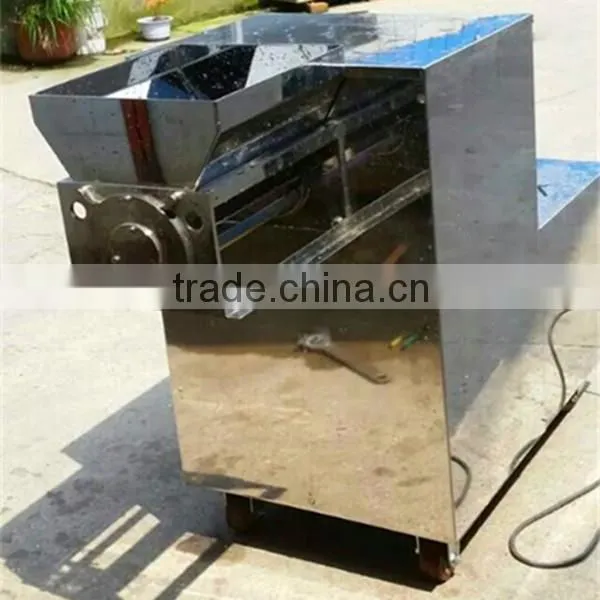

the whole machine
Jiangyin Weiping Machinery equipment Co.,ltd is located by the site of Taihu lake with the economic prosperity and beautiful scenery-Jiangyin city,Jiangsu Province,China
Our company specializes in producing pharmaceutical machinery,food machinery,chemical machinery.We are a professional manufacturing factory with research,development and sales of medicine machinery.Through the rigorous testing system to ensure 100% qualified.
Main Five series products:Pulverzier,sifting machine,mixer,granulator and dryer machine
Our company products in the market are welcomed and praised by customers.
PLS CONTACT ME If you are interested in this machine ,and have any questions about this machine!
Exhibition show
Related machines
Wooden cases
fessional advice and rich experience help to choose machine
nical support by email
3.one year guarantee for whole machine
4.calling or door-to-door service
5.user manual and detailed video/CD
Why us ?
1.100% manufacturer
2.One-stop service without any outsourcing
3. Best Materials selection
4. Full equipped printing technology
5. On time delivery
6. Quality guarantee
7. Factory visit is welcome
How to choose a right machine ?Could you share your
1)your feeding material ;
2)the meshes and ports;
3)the capacity per hour.
