Home > Products > Granulator > High speed Stainless Steel Quick Sorting Machine/granulator
High speed Stainless Steel Quick Sorting Machine/granulator
USD $2,580 - $2,800
/ Set
1 Set(Min.Order)
- 20 Set / Sets per Month
- Shanghai port for High speed Stainless Steel Quick Sorting Machine/granulator
- T/T
You May Like
-
organic fertilizer production line
-
machine for making organic fertilizer
-
Chicken Manure Drying and Organic Fertilizer Making Machine for Poultry Farming
-
Organic Fertilizer Making Machine For Poultry Manure
-
Organic fertilizer production line
-
Low Temperature Granule Making Organic Ball Fertilizer Granulation Machine
Product Details
| Condition: | New | Product Type: | Other, granulator | Place of Origin: | Jiangsu, China |
| Brand Name: | WP | Model Number: | KZL-160 | Voltage: | 380V |
| Power(W): | 1.5KW | Dimension(L*W*H): | 1060*850*1350mm | Weight: | 180kgs |
| Certification: | ISO9000 CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
High speed Stainless Steel Quick Sorting Machine/granulator
Product Description
1 Main application
The machine is widely used in pharmaceutical, chemical and foodstuff industries with good effect. The granulator, equipped with reasonable filter net and shankpiece, can smash those easy dispersed block materials and screen them carefully via the screen with special mesh under centrifugal force. The size of granules can be acquired by changing the screens. The machine can replace the swing granulator.
2 Characteristics
1.The machine is suitable for the smashing and arranging of granules in pharmaceutical, foodstuff, chemical pigment and fodder industries. The shape
and specification of granules are varied from different process and equipment. Those granules can be formed into ones with almost same size and
specification after treated through the machine.
2.The machine is made of stainless steel with surface polished, easy to dismantling and assembling as well as cleaning.
3 Technical Specifications:
MODEL | MODEL 80 | MODEL 120 | MODEL 160 | MODEL 200 | |||
Rotor length(mm) | 185 | 185 | 185 | 185 | |||
filter mesh diameter(mm) | 1-8 | ||||||
Capacity(kg/h) | 50-100 | 100-200 | 150-300 | 200-400 | |||
Motor power(kw) | 0.55 | 1.1 | 1.5 | 2.2 | |||
speed range(rpm) | Single speed 2800 or(frequency changing speed control300-3600) | ||||||
Overall size (L×W×H)(mm) | 650×450×1000 | 1000×800×1200 | 1060×850×1350 | 1100×1000×1500 | |||

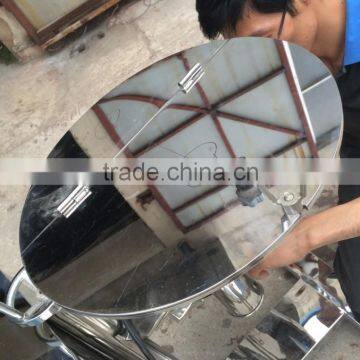

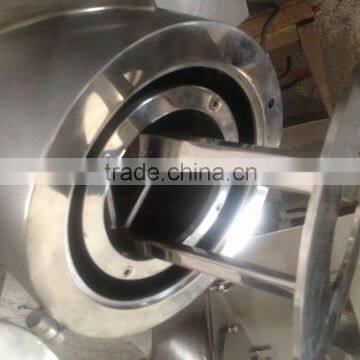

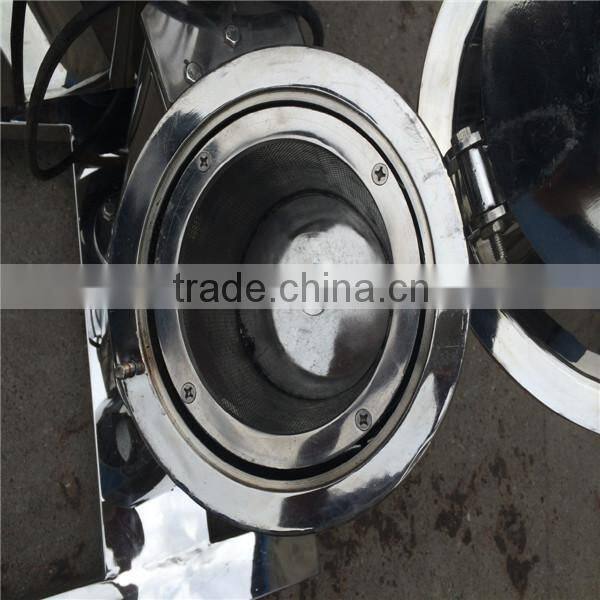

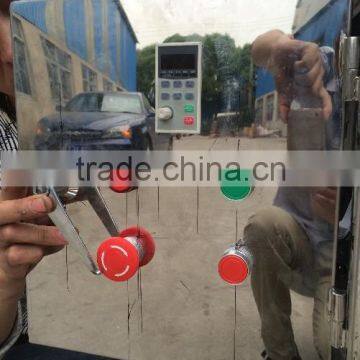

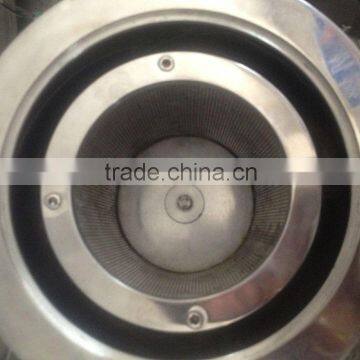

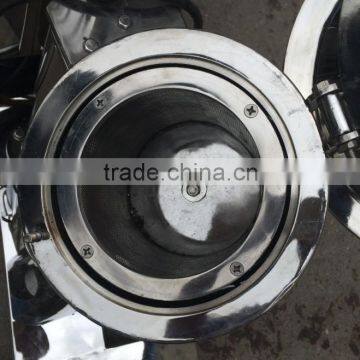

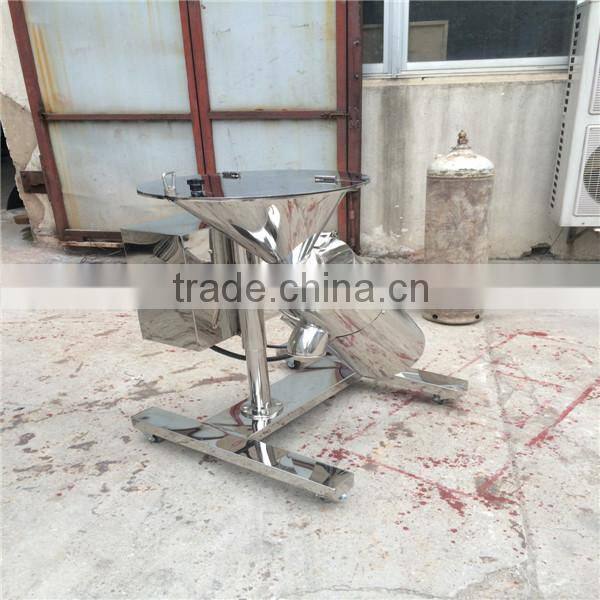

Detailed Images
Packaging & Shipping
wooden packing
Our Services
one year guarantee for whole machine
24 hours technical support by email
calling or door-to-door service
user manual and detailed video/CD
Certifications
Contact Us
- Jiangyin Weiping Machinery Co., Ltd.
- Contact nameRaind Wang
- Phone0086-510-86380586
- AddressNo. 26, Xinzhuang Road, Zhutang Town, Jiangyin
