pharmaceutical oven
- 20 Set / Sets per Month
- Shanghai port for pharmaceutical oven
- T/T
Product Details
| Condition: | New | Type: | Drying Oven | Place of Origin: | Jiangsu, China |
| Brand Name: | WP | Model Number: | RXH-4 | Voltage: | 380V |
| Power(W): | 4kw | Dimension(L*W*H): | 1460*1100*1750mm | Weight: | 800kg |
| Certification: | ISO 9000 CE | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

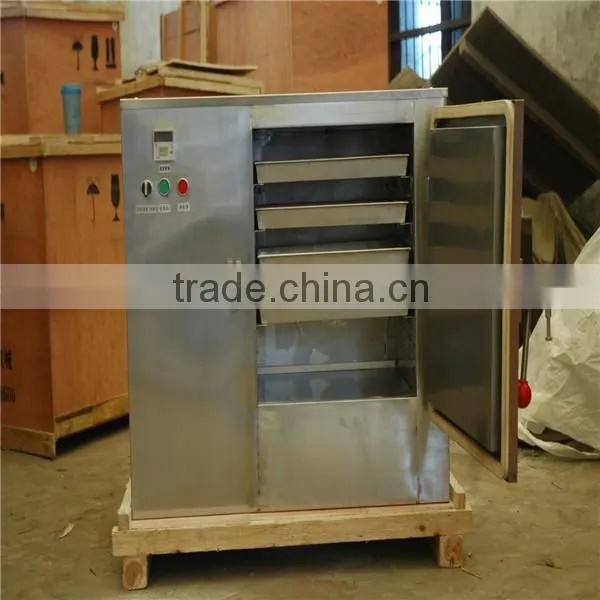

pharmaceutical oven
Main Application:
The air circulating oven is a versatile drying equipment,it is suitable for heating,soliding and drying material and product in the field of pharmaceutics,chemical,foodstuff,light industry such as:raw material medicine,Chinese traditional medicine,power granule,crude drug,packing bottle,pigment,dyestuff,dehydration vegetable,foodstuff,plastic resin,electric component,coat,wool,salt,catalyzer etc.
Features:
Most hot air is circulated in the oven.The heat efficiency is high and the energy is saved.
It use the forced ventilating function,there are adjustable air distribution plates inside the oven,the materials can be dried uniformly.The heating source might be steam,hot water,electricity and far infrared,with a wide selection.
The machine is low in the noise.The operation is in balance.The temperature is controlled automatically.The installation and maintenance are easy.
The application is wide.The machine can be used for drying various materials and is a versatile drying equipment.
Model | RXH-4 |
Dry quantity(kg) | 4 |
Power of fan (kw) | 0.12 |
Power of heat(kw) | 4 |
Temperature | ± 2 |
Oven plate | 4 |
Machine size | 590*940*940mm |
Weight(kg) | 115kg |
| Type for the industry standard | Type | Drying capacity for each time(kg) | Power (kw) | Steam to be consumed(kg/h) | Heart radiation area | Air capacity (m³/h) | Temperature between the top and the bottom(℃) | Baking pan | Overall dimension(L×W×H)mm | Baking cart to be used(set) |
| RXH-14-C | CT-C-I | 120 | 0.45 | 18 | 20 | 3450 | ±2 | 48 | 2300×1200×2000 | 2 |
| RXH-27-C | CT-C-II | 240 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | 2300×2200×2000 | 4 |
| RXH-41-C | CT-C-III | 360 | 1.35 | 54 | 80 | 10350 | ±2 | 144 | 2300×3220×2000 | 6 |
| RXH-54-C | CT-C-IV | 480 | 1.8 | 72 | 100 | 13800 | ±2 | 192 | 4460×2200×2290 | 8 |
| RXH-5-C | CT-C-O | 30 | 0.45 | 5 | 5 | 3450 | ±2 | 8 | 1460×1100×1750 | 1 |
| RXH-41-C | CT-IS | Special baking bottle | 2.2 | 60 | 100 | 6900 | ±2 | - | 1140×6160×3240 | 6 |
| RXH-25-A | High effect and high temperature far infrared sterilization oven | 1200×1000×1600 | 1 | |||||||
Quality first, Service Best!
