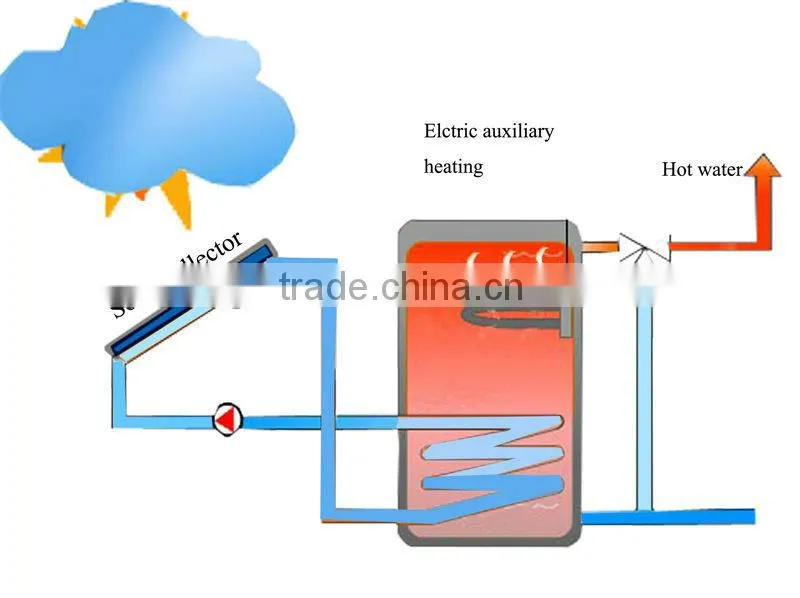

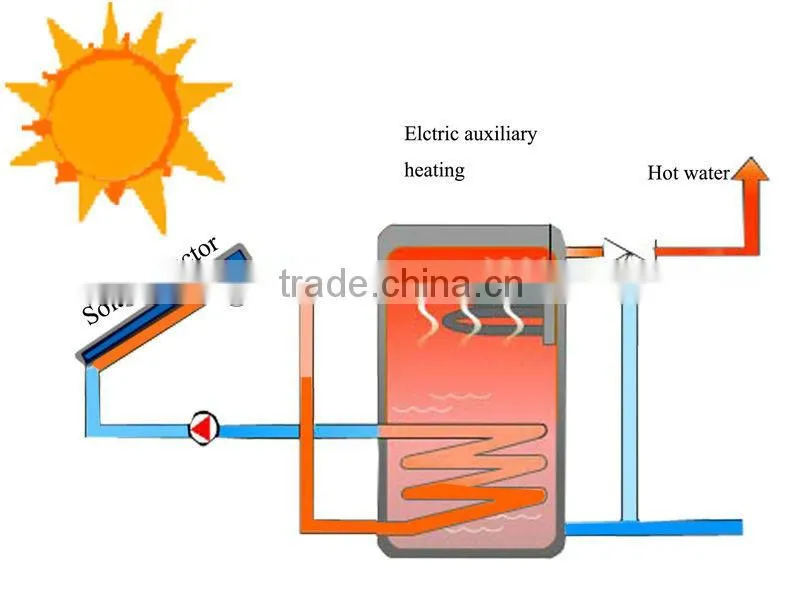

Separated Pressurized Solar Water Heater Working Principle:
1. Copper heat pipes for rapid heat transfer .
2. Easy plug-in installation.
3. Maintenance Free.
4. Suitable for mains pressure water (up to 8 bar/116psi)
5. Corrosion resistant silver brazed copper header
6. All stainless steel frame (304 2B grade SS).
7. Powder coated (black, brown or silver) aluminum casing
8. Stable solar conversion throughout the day (tubes passively track the sun)
9. The perfect solar collector for domestic solar water heater systems
10. Ideal for commercial solar water heating applications

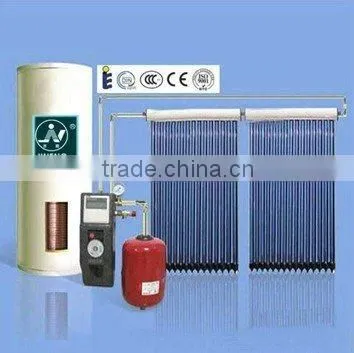

The main components of Split Solar Water Heater System:

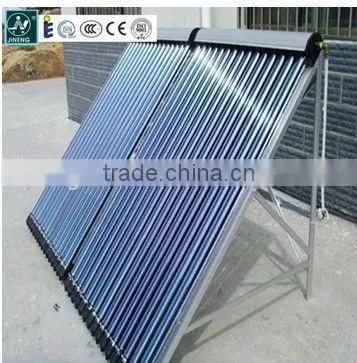

1. Jineng Vacuum Tube Solar Collector
2. One Work Station including:
Intelligent solar controller with sensors;
Circulation Pump;
Pressure meter;
Check valve.

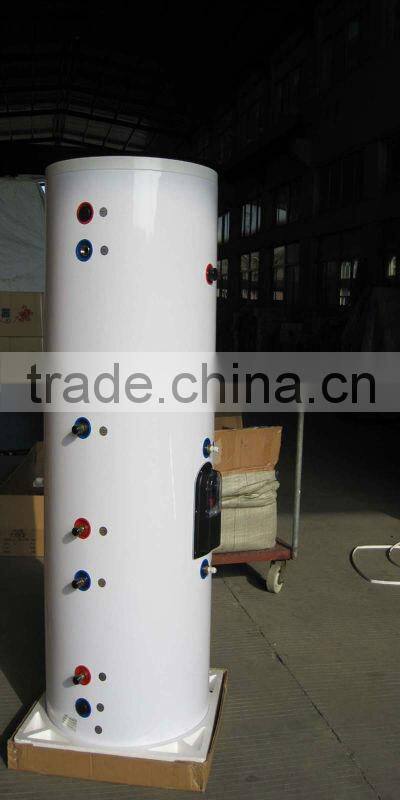

3. Solar pressurized tank With copper coil from 100L to 500L
| Jineng Separated Pressurised Solar Water Heater | |
| Inner Tank: | 1.2-1.5mm food grade SUS3042B |
| Inner Tank diameter: | 340/360/380mm |
| Outer Tank: | 0.4mm stainless steel or painted steel |
| Outer Tank diameter: | 470/480/500/520mm |
| Collector channel | Cu pipe |
| Frame: | 1.5mm alluminum alloy |
| Vacuum Tube: | High Borosilicate 3.3 |
| Tube Dimension | 58mm×1.8m / 47mm×1.5m |
| Working Pressure: | 0.6Mpa |
| Tube Qty.: | 12/15/18/20/24/30 tubes |
| Heat Insulation Layer: | 50-60mm Polyurethane Foam |
| Installation: | anywhere in the building |
| Heat preservation: | 72 to 80 Hours |
| Absorptance: | >94% |
| Hail resistance: | 25mm |
| Tank Capacity: | 100L-500L |
Split Type Solar Water heater
---------------------------Why Jineng Solar----------------------
Primary competitive advantages:
1) CE, Solar Keymark, CCC, ISO certificed.
2) High quality, competetive price, prompt delivery.
3) Satisfied after-sale service.
4) Environmental Protection.
5) Export experience to 49 countries.
6) OEM accepted.
