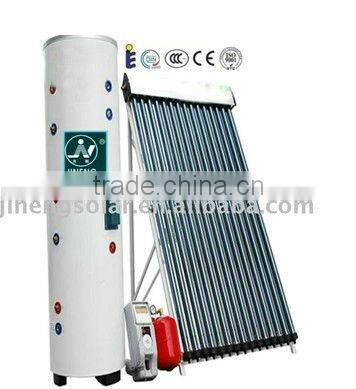

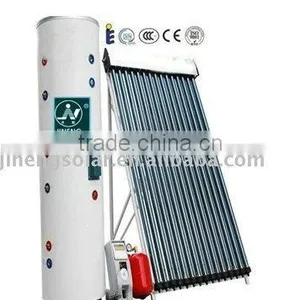

Separated Pressurised Solar Water Heater
US$ 580 - 1,600
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JINENG
Model Number:
JNSP
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Split Pressure Solar Water HeaterUS$ 300 - 2,000MOQ: 1 Set -
Split Pressure Solar Water Heater Solar Keymark CEUS$ 590 - 1,600MOQ: 1 Set
-
Solar Keymark CE Split Pressure Solar Water HeaterUS$ 580 - 1,600MOQ: 1 Set
-
Heat Pipe Split Type Solar Water HeaterUS$ 500 - 2,000MOQ: 1 Set
-
Heat Pipe Split Type Solar Water HeaterUS$ 400 - 2,000MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
JINENG
Model Number
JNSP
Type
Other, split pressure
Application
Water Heater
Pipe Material
Other, glass and copper
Specifications
Solar Water HeaterUsed very widely and spoken highly of the efficiency.
SUS 304 2B
OEM available
Solar Water Heater
working priciple
when the temperature of the heat collector reaches the set value, the controller shall start the circulation pump automatically.
the circulation pump makes heat-conducting liquid circulate automatically.
The heat-conducting liquid transfers heat to water by the heat exchanger in the water tank.
In case the temperature of the circulation pump does not reach the set value, the circulation pump shall be stop working automatically.
In case the temperature of the water tank does not reach Tmax, then start the electrical heater.
Feature:
Equiping with electric heater setting, safty valve and magnesium bar.
Closed-loop system with pressure bearing of 0.6Mpa.
Intelligent controller automatically control whole sytem working.
carrying out installation of separation according to fabricating yard.
carrying out installation of separation according to fabricating yard.
specification:
| Jineng Separated Pressurised Solar Water Heater | |
| Inner Tank: | 1.2-1.5mm food grade SUS3042B |
| Inner Tank diameter: | 340/360/380mm |
| Outer Tank: | 0.4mm stainless steel or painted steel |
| Outer Tank diameter: | 470/480/500/520mm |
| Collector channel | Cu pipe |
| Frame: | 1.5mm alluminum alloy |
| Vacuum Tube: | High Borosilicate 3.3 |
| Tube Dimension | 58mm×1.8m / 47mm×1.5m |
| Working Pressure: | 0.6Mpa |
| Tube Qty.: | 12/15/18/20/24/30 tubes |
| Heat Insulation Layer: | 50-60mm Polyurethane Foam |
| Installation: | anywhere in the building |
| Heat preservation: | 72 to 80 Hours |
| Absorptance: | >94% |
| Hail resistance: | 25mm |
| Tank Capacity: | 100L-500L |
