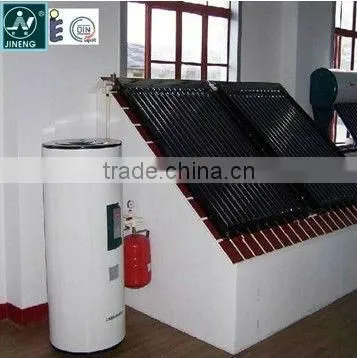

A Split Solar Water Heater System is suit for climates where there is no risk of freezing. Recirculation freeze protection can be provided by the Recirculation feature in the controller. An Open Loop Water Heating System provides many advantages. It is the simplest and typically the least expensive active system to install. There is no heat exchanger, which allows efficient heat transfer directly to the water. The system operates at standard line pressure. It is simple to add capacity to the system if demand changes. The system integrates easily with existing systems..
The main components of Split Solar Water Heater System:
1. Jineng Vacuum Tube Solar Collector.
2. One Work Station including:
Intelligent solar controller with sensors;
Circulation Pump;
Pressure meter;
Check valve.
3. Solar pressurized tank With copper coil from 100L to 500L.
| Jineng Separated Pressurised Solar Water Heater | |
| Inner Tank: | 1.2-1.5mm food grade SUS3042B |
| Inner Tank diameter: | 340/360/380mm |
| Outer Tank: | 0.4mm stainless steel or painted steel |
| Outer Tank diameter: | 470/480/500/520mm |
| Collector channel | Cu pipe |
| Frame: | 1.5mm alluminum alloy |
| Vacuum Tube: | High Borosilicate 3.3 |
| Tube Dimension | 58mm×1.8m / 47mm×1.5m |
| Working Pressure: | 0.6Mpa |
| Tube Qty.: | 12/15/18/20/24/30 tubes |
| Heat Insulation Layer: | 50-60mm Polyurethane Foam |
| Installation: | anywhere in the building |
| Heat preservation: | 72 to 80 Hours |
| Absorptance: | >94% |
| Hail resistance: | 25mm |
| Tank Capacity: | 100L-500L |
Solar Hot Water
---------------------------Why Jineng Solar----------------------
Primary competitive advantages:
1) CE, Solar Keymark, CCC, ISO certificed.
2) High quality, competetive price, prompt delivery.
3) Satisfied after-sale service.
4) Environmental Protection.
5) Export experience to 49 countries.
6) OEM accepted.
