This is the link for review:
/watch?v=f9_WG_tYO-w&feature=youtu.be

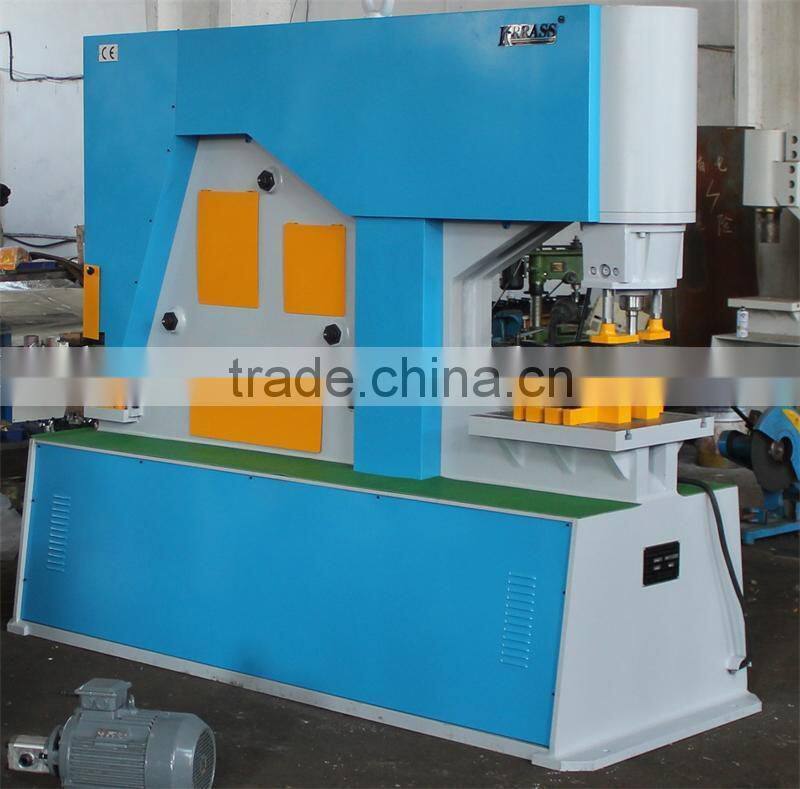

Q35Y-16 Series metal worker machine q35y-20 with high precision and low price all kinds of materials such as plate, square bar, angle, round bar, channel and so on.
KRRASS Industrial hydraulic ironworkers have been designed and built to the highest quality standards in the industry.
This profitable machine will serve any grueling fabrication shop for decades to come.
This machine is typically in stock for quick deliveries.
1. hydraulic ironworker machine Punching
Full range of universal punches and dies are hydraulic ironworker available.unique style allows for large angle iron punching and large channel
punching.Large viewing window on stripper swing away design for ease of operation.large two piece gauging table
with rulers and stop as standard fittings.Quick change coupling nut and sleeve for rapid replacement of change.
2. hydraulic ironworker machine Shearing
Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/square bar,
channel/beam cutting. Large strong guarding for max safety. The angle shear has the ability to cut angle at 45°both top and bottom leg. This gives the operator the ability to make a picture frame corner for perfect welds.
Diamond shaped blade for quality cuts that is minimal material lost and deformity. Easily adjustable hold-down device for accurate plate cutting.
Large 15″squaring arm with inlaid scale.Special anti-distorted blade for quality cutting.Lower blade has four usable edges.There is screw allow for gap adjust no shim needed.
3. hydraulic ironworker machine Notching
Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for
precise positioning.The notching section of this hydraulic ironworker is perfect for notching out metal plate,
angle iron and much more. The notching station also has an oversized table with material stops.
This section of the machine can also be outfitted with the optional vee notcher.
4. hydraulic ironworker machine Bending
Also bend the plate below 500mm. All the components of Machine are of the highest quality in their safty,
function, capability and maintenance.
cnc ironworker machine Technical feature:
Model |
Q35Y-16 |
Q35Y-20 |
Q35Y-25 |
Q35Y-30 |
Q35Y-35 |
Q35Y-40 |
Q35Y-50 |
Q35Y-60 |
Working Pressure(Ton) |
55 |
75 |
110 |
140 |
175 |
200 |
250 |
300 |
Max. Cutting Thickness (mm) |
16 |
20 |
25 |
26 |
30 |
35 |
40 |
45 |
Plate Strength (N/mm2) |
lower than 450 |
lower than 450 |
lower than 450 |
lower than 450 |
lower than 450 |
lower than 450 |
lower than 450 |
lower than 450 |
Shear Angle (degree) |
7 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
Shearing Size Of One Stroke T*W(mm) |
16*250 8*400 |
20*330 10*480 |
25*330 16*600 |
26*330 20*600 |
30*400 20*600 |
35*400 25*700 |
40*400 30*750 |
45*400 30*800 |
Ram Stroke (mm) |
80 |
80 |
80 |
80 |
80 |
100 |
100 |
100 |
Stroke Times (per minute) |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
Throat Depth (mm) |
300 |
355 |
400 |
600 |
600 |
600 |
600 |
600 |
Punching Thickness (mm) |
16 |
20 |
25 |
26 |
28 |
35 |
40 |
40 |
Max. Punching Diameter (mm) |
25 |
30 |
35 |
38 |
40 |
40 |
40 |
45 |
Power Of Main Motor (kw) |
4 |
5.5 |
7.5 |
11 |
11 |
15 |
18 |
18 |
Overall Dimensions L*W*H (mm) |
1640*730*1770 |
1860*800*1990 |
2355*960*2090 |
2680*1040*2300 |
2720*1080*2400 |
2770*1240*2450 |
3000*1440*2480 |
3050*1550*2500 |
Weight Of Machine (kg) |
1770 |
2200 |
4800 |
6200 |
7000 |
9200 |
12800 |
13500 |

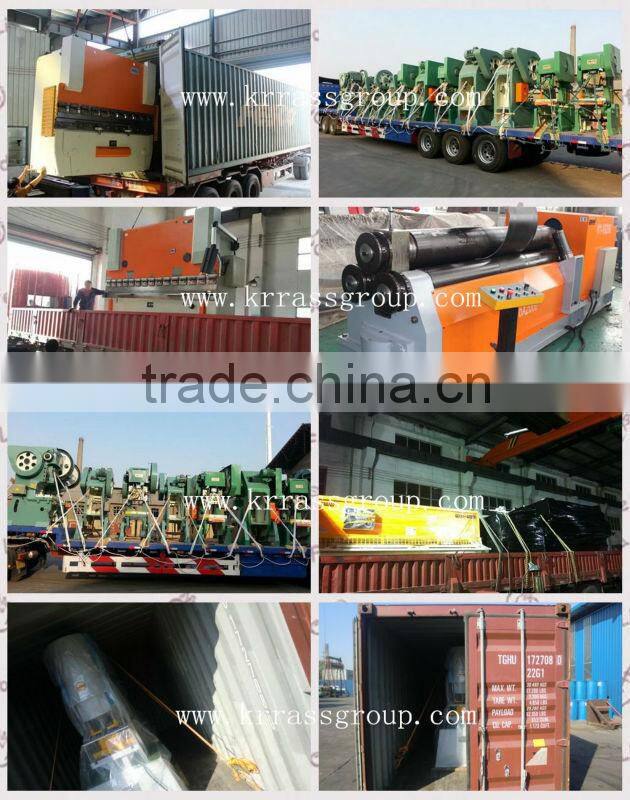

packing &delivery
Packing detail :Wooden Case for Q35Y-16 Series metal worker machine q35y-20 with high precision and low price Delivery: 20 days after received your depositPayment term
- 30% T/T is down payment as deposit, and 70% is paied before shipping.
- 100% irrevocable letter of credit (L/C)at sight
How about your machine quality? We are worry about the quality.
RE: KRRASS is a mature brand in CHINA,through our 21 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.
Whether the machine price can be more discount?
RE:1.KRRASS always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.
RE:2. we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.
Welcome to our factory and check our machine. Your precious advice is our strongest confidence!
