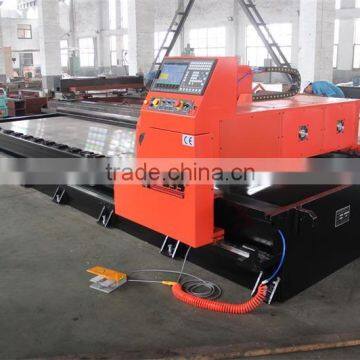

Help CenterKRRASS 4000mm Length Cutting Machine Aluminum Composite Panel Grooving Machine
Related Products
-
KRRASS Beautiful Cnc 3000mm Aluminum Composite Panel Grooving MachineUS$ 5,000 - 15,000MOQ: 1 Set -
KRRASS Series Aluminium Homemade Panel Grooving and Cnc Cutting MachineUS$ 5,000 - 15,000MOQ: 1 Set
-
KRRASS Series Aluminium Plate Cutting and Cnc Grooving MachineUS$ 5,000 - 15,000MOQ: 1 Set
-
KRRASS Series nc Gantry v Groover Stainless Steel Grooving MachineUS$ 5,000 - 15,000MOQ: 1 Set
-
Top Quality V-notch Machine With CEUS$ 26,605 - 38,204MOQ: 1 Set
| Nanjing Klaus cnc machinery co., ltd |
| Address: new river road no.18 lishui district,nanjing,jiangsu,china |
| Tel:0086-025-57268586 Mb:0086-18652069510(whatsapp) |
| Website: |
| Email: krrass05(at) |
| Main product: Grooving machine,shearing machine,press brake,punching machine, stamping power press, Y32,Y27,Y28 hydraulic press |
| Video of grooving machine: https://youtu.be/Wz64XwjAcAA |
Product Features
Advantages: conventional machine is clamps hold the sheet metal moving over the working table, so the sheet surface is very easy to be scratched. Now this machine’s biggest advantage is sheet metal fixed, has no relative motion. the work piece is protected perfectly, especially for use in mirror stainless steel plates on decoration, and so that the machine has a high processing speed. |

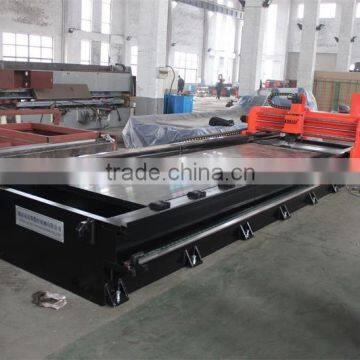

Frame structure with the overall table, mobile gantry beam also welded frame structure, the implementation of the overall welding, tempering after welding the whole, all to ensure the overall good rigidity, have to ensure that the future use is not deformed. |

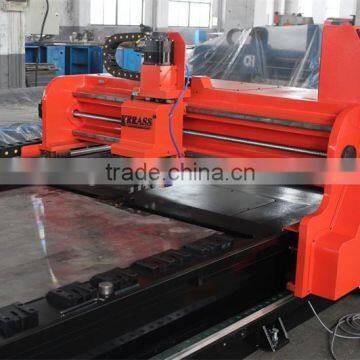

work: Overall table frame fixed and mobile gantry beam for cutting slotting, grooving speed frequency control, smooth and efficient cutting process, the cutting surface quality is good. |
|
numerical control systems, slot machine adopts PLC + touch screen CNC system A color touch screen controller adopts special software, Chinese / English operation menu, simple and straightforward. Manual, automatic two working modes to choose from, fully meet the various processing requirements. Man-machine dialogue interface, easy to learn and operate, convenient processing size input, process real-time display, error alarm will automatically |

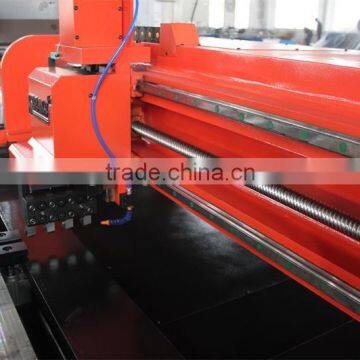

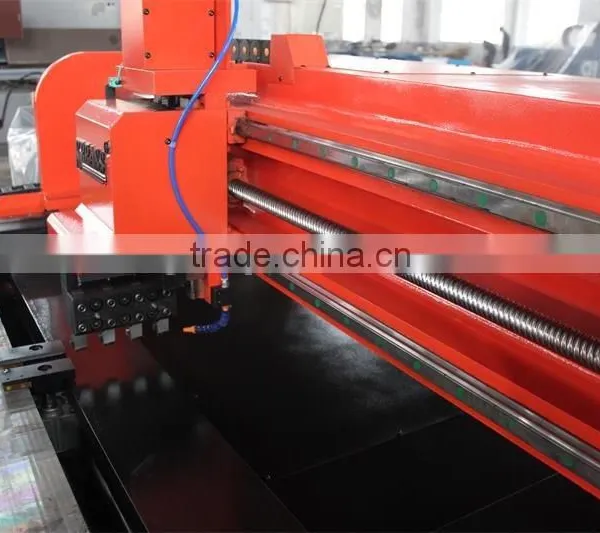

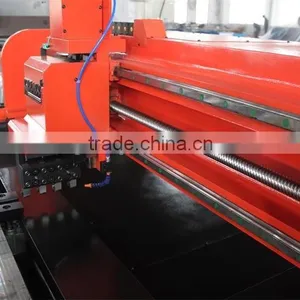

| Machine is 4 axes control, the X-axis, Y1 axis, Y2 axis, Z axis. high positioning accuracy, where Y1, Y2 through the PLC synchronization system, guaranteed to always synchronized. X-axis is with inverter controlled AC gear motor. HIWIN brand high precision ball screw, helical rack and pinion driven sound small and precision |
Alone the working table, there is hydraulic clamps. According to different material or thickness, clamping force can be adjusted. |

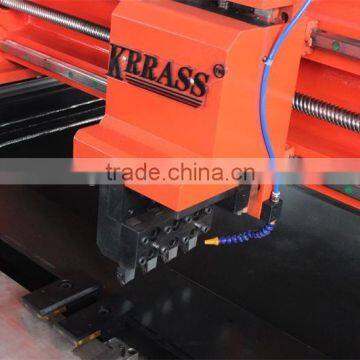

the machine uses three alloy knife while processing methods, thus cutting is more evenly, work piece deformation will be reduced, tool life will be longer, production costs cost will be lower. |
|
HYRAULIC VGROOVING MACHINE: manker sure high strengthandhighrigiditywithoutdeformation
|
| WORKING MODE: The whole table frame is immobilized, just gantry blade adapter movew to slot with ariable frequency speed,effective slotting process,and high-quality surface.
|
|
CNC CONTROL SYSTEM:PLS&TOUCHING SCREEN: Colorful touch screen,special sofrware, convenient processing dimension input,processing instantly displaying and error automatic alarming.
|
| TRANSMISSION PARTS: X,Y1,Y2and Z4 axis control,high positing accuracy,Y1 and Y2 synvhronized by
|
|
CLAMPING DEVICE: With adjustable hydraulic system,Side clamping unit and top following pressing device make sure enough pressure to hold various thickness sheet.
|
| HIGH EFFICIENCE: (1)Three alloy blades simultaneous process at the same time ,which makes even cutting rate,less workpiece deformation,longer blades service life,and lower producting cosr.
|
technical data;
Model |
KRS-3212 |
KRS-4012 |
KRS-6012 |
||
Machining Capacity |
Plate |
Material |
STS304&Q345 |
||
Length |
3200mm |
4000mm |
6000mm |
||
Width |
1220mm |
||||
Thickness |
0.6mm-4mm |
||||
Minimum edge |
8mm |
||||
CNC Specifics |
Control Type |
Axis CNC control(X Y1 Y2 Z) |
|||
Display |
10 inches high definition color LCD |
||||
Memory Capacity |
20group,112piece per group(available to add SD card) |
||||
Working System |
Ball screw/Linear guide rail/Gear rack |
||||
Machining Sped |
X Axis Forward-Cutting |
50m/min(Servo ,available to adjust grooving speed) |
|||
X Axis Backward |
60m/min |
||||
Knife rest(Y1axis)and Y2 Axis |
20m/min |
||||
Z-Axis UP-Down |
20m/min |
||||
Machining Precision |
Y1 Precision |
0.01mm |
|||
Y1Stoke |
1250mm |
||||
Y1precision |
0.01mm |
||||
Z stoke |
50mm |
||||
Driving Mode |
X-Axis |
4.5KW SEW Converter Motor |
|||
X-Axis |
0.85KW YaskawaServo Motor |
||||
Y1 Axis |
0.85KW YaskawaServo Motor |
||||
Y2 Axis |
0.85KW YaskawaServo Motor |
||||
clamping device |
pneumatic circuit |
0.3-0.6Mpa |
|||
boundary dimension |
Lenght |
5200mm |
6000mm |
8000mm |
|
Width |
2380mm |
||||
Highth |
1580mm |
||||
Weight |
6800kg |
7800kg |
12000kg |
||
Table Flatness |
800mm |
||||
Video LINK |
https://youtu.be/Wz64XwjAcAA |
||||
