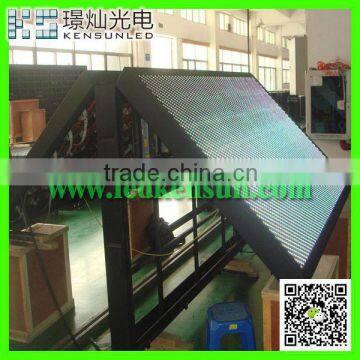

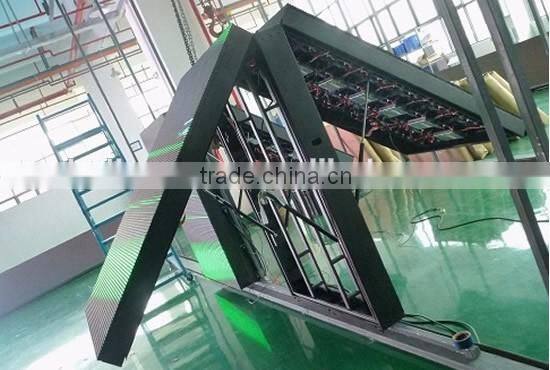

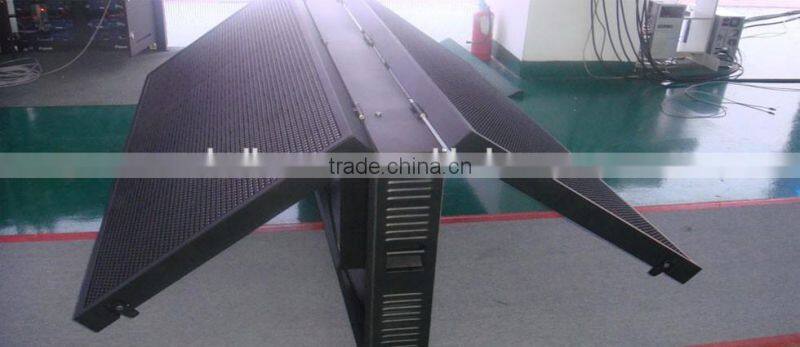

Indoor outdoor single dual full color led double side display billboard
- 10000 Square Meter / Square Meters per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- 60W UL CE LED Canopy Lamp with aluminum frame Ex-factory price from Shenzhen
- 80W Energy-Saving Gas Station LED Canopy Lamp hot sale from Shenzhen
- 60W UL CE Energy Saving LED Canopy Lamp with 3 years warranty from Shenzhen
- 2014 new design, led flood light, led Gas Station Lamp, LED canopy light 100w
- Led flood light, led Gas Station Lamp, LED canopy light 100w
- 120W High power cree led canopy lamp Wholesale from Shenzhen for gas staton
Product Details
Place of Origin: | Guangdong, China | Brand Name: | JC | Model Number: | JC-FSO-PH10MM |
Usage: | Outdoor | Tube Chip Color: | Full Color | Display Function: | Video |
Pixels: | 10mm | Screen Dimension: | 960mmx960mm |
Product Description
Indoor outdoor single dual full color led double side display billboard
Feature and Advantage
1.High brightness Contrast:4000:1, which is a very high level to ensure a vivid image of our LED display screen system
2. First-class LED chip: Supplied by Cree & other high strictly selected LED chip to ensure the long lift-time and high brightness of our LED display screen system
3.Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROIof your LED display screen's investment.
4.Long-term Brightness:More 7000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.
5.Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
6.Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
Our service
1.Your inquiry related to our products or price will be replied in 24hrs
2.OEM&ODM,any your customized lightings we can help you to design and put into product
3.Distributoership are offered for your unique design and some our current models
4.Protection of your sales area,ideas of design and all your private information
5.Top Quality+Reasonable Price+Responsible After Service=Successful & Win
6. Export countries : Peru, Mexico, Colombia, Turkey, US, UK, etc.
Trade Terms
1.Payment: T/T 35% as deposits before production, T/T 65% balance before delivery
2.Shipping freight are quoted under your requests
3.Shipping port: Shenzhen, Mainland China
4.MOQ:1sqm
5.Delivery time: 10-15days after receive pre-payment
LED Screen Parameter
Description | Technical parameter | |
Unit module | Module size | 160*160mm |
Pixel pitch | 10mm | |
Pixel density | 10,000dots/m2 | |
Pixel configuration | 1R1G1B | |
Led specification | Φ3ellipse | |
Pixel resolution | W:16dots*H:16dots | |
Cabinet | Dimension | 960mm*960mm*150mm |
Quantities of module | 36pcs | |
Power supply | 6pcs | |
Thermal discharge | Fan*2pcs | |
Total weight | 50kg | |
Best viewing distance | 10-100m | |
Temperature | Storage: -35°C~+85°C | |
Working: -35°C~+85°C | ||
Thickness | 15cm can adjustable | |
Remarks: cabinet size can changed, upon project need. | ||
Power | Working voltage | AC220V/110V±10% |
Average power consumption | 300-400W | |
Max. Power consumption | ≤1000W/sqm | |
Current | ≤20mA(single LED) | |
Control system | CPU | Pentium4 or above |
Operating system | WIN98/2000/NT/XP | |
Control method | Synchronization | |
Main technical parameter | Driving device | 1/4scanning |
Drive type | Constant Current driver IC | |
Refresh frequency | ≥400Hz | |
Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color | |
Brightness of white balance | More than 8000cd/sqm | |
Brightness adjustment | 256 levels of each color(R/G/B)by software | |
Operating ambient humidity | 10%--95% | |
Video signal | PAL/NTSC | |
Control system | DVI display card+full color controller card | |
MTBF | ≥10,000hours | |
Life span | ≥100,000hours | |
Flatness | Tolerance of interpixel ≤0.3mm | |
Tolerance of modules clearance≤0.6mm | ||
Power switch | Automatic switch | |
Display mode | 1024*768 | |
Software | LED media player |

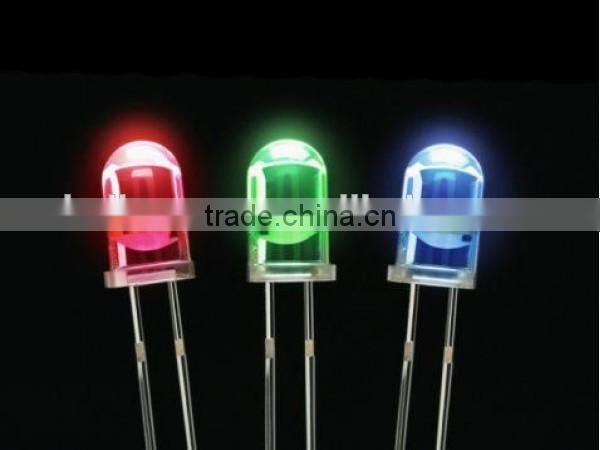

High quality LED lamps material

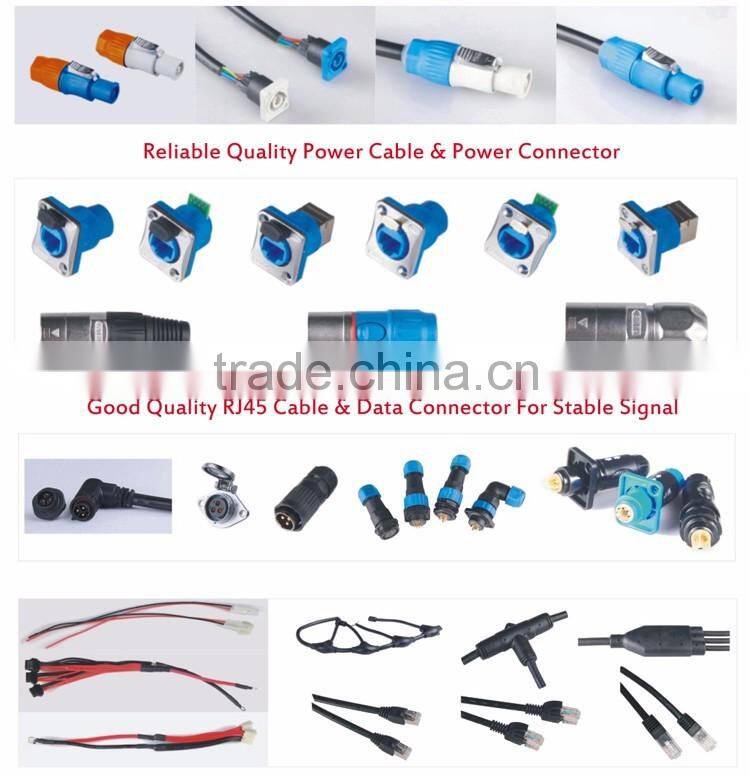

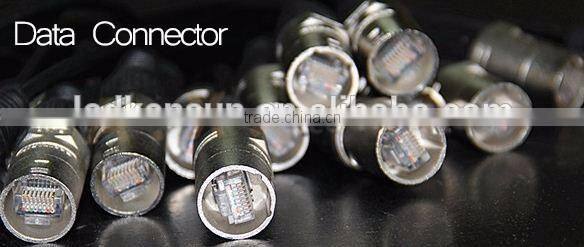

High quality led connectors
LED Control system diagram

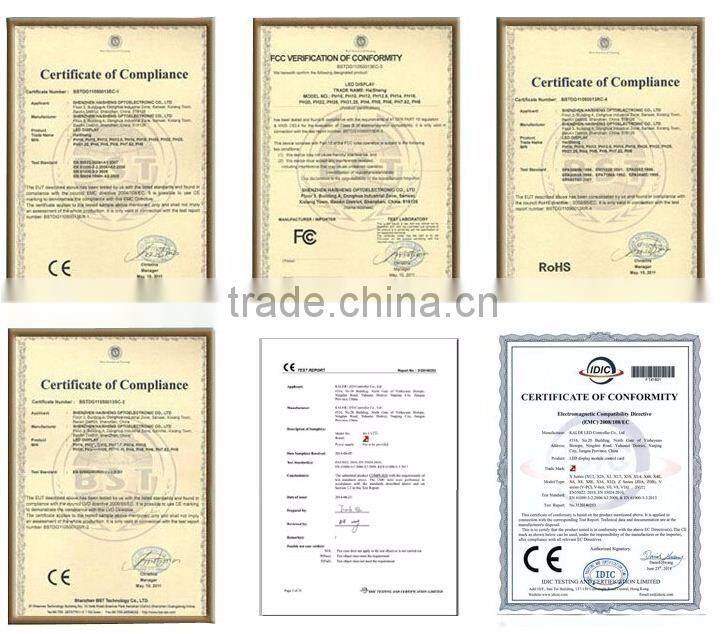

LED display certificates

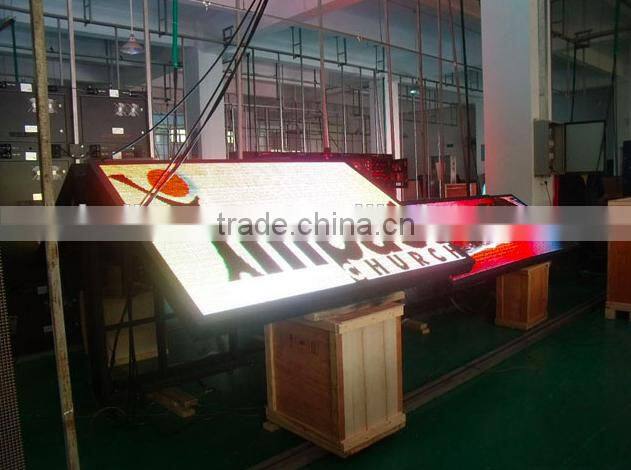

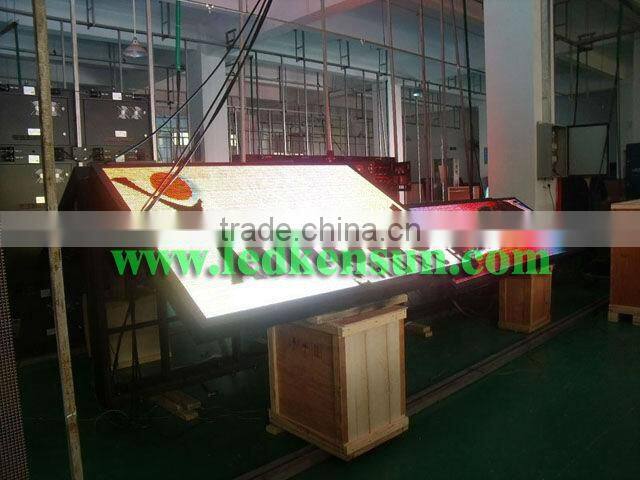

Working factory:
Applications:
Shenzhen Jingcan Opto-Tec Co.,Ltd is a high-tech factory which is professionally engaged in LED display and LED stagebackground lights scientific researching and designing, fabricating andmarketing. We are rich in experienced technicians and sales teams who offercustomers integrated service including professional pre-sales technicalstrategies, skillful technology service, patient after-sales service and safetytransportation service as well.
JINGCAN led factory’s main products areconsist of rental led display, advertising led screen, football stadiumperimeter, stage background video wall, traffic guiding display, special-shapeddisplay like curve and round, led moving light, led Par light, led modules andlaser light, etc. The outstanding features of our led products areenvironmental-friendly, energy-saving and long life-span. All of our LEDproducts have approved by CCC, CE, ROHS, FCC, ISO9001 quality certificatesauthorities. Furthermore, our LED products were exported to more than 90countries till now such as Sweden, USA, Brazil, France, Japan, Thailand, Italy,Australia, Spain and etc. Those LED products were widely used in both indoorand outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.
In addition to being one of the top LEDsuppliers in China, JINGCAN led factory provide advanced technology LEDsolutions and best customer service for our both new and regulate clients.JINGCAN orientation is QUALITY& INTEGRITY which is the basement to guideJINGCAN make a promisingly prosperous future.
We have a professional engineer team who can offer domestic and international LED display installation and maintenance service for life long of the products.
