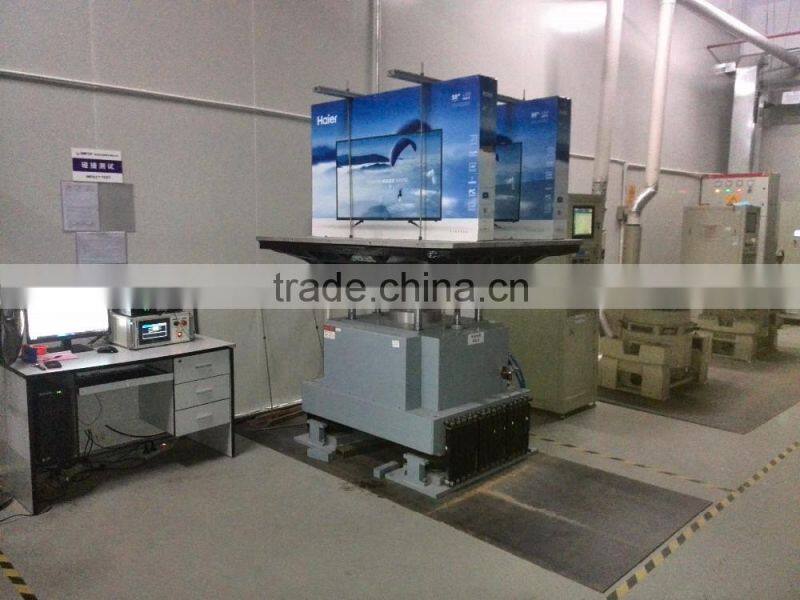

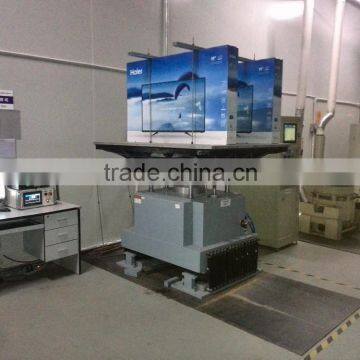

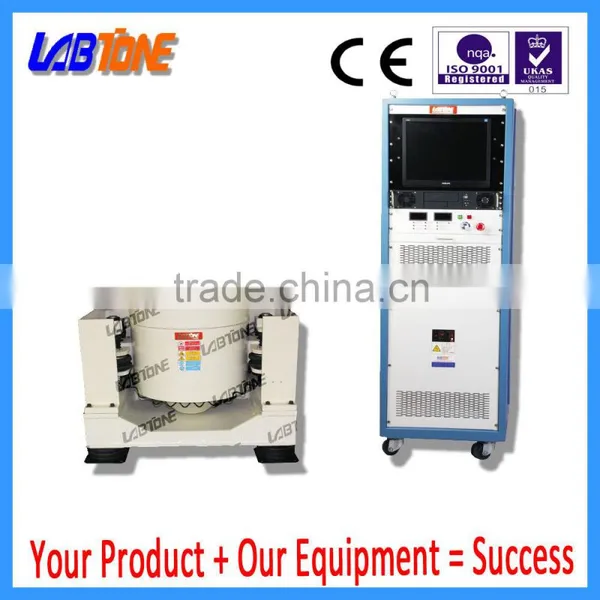

Electrodynamic 5000kg.f exciting force vibration testing systems
Vibration testing system Design standards:MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Vibration testing system Applications:
automotive,electronics,aerospace,vessel,telecommunication,optoelectronics ,instrument etc.
Vibration testing system Features
- Strength of the suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
- Perfect performance on amplitude variation.
- High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.
- Rapid self-test diagnostics and chain safeguard, high high safety and reliability
- Air gasbag isolation damping device realize the the vibration table with no need for special foundation. Perfect reappearance vibration waveform and the reduction of vibration transmission
- Different application on the vertical and horizontal tables.
- Simple operation for the controller.
Vibration testing System Block Diagram
Vibration testing machine Specifications
EV103-EV220 For more types & specifications, please contact us.
| Model | EV232 | EV240 | EV250 | EV260 | EV320 | EV330 |
| Vibration Generator | VG300/25 | VG4000/50 | VG5000/50 | VG6000/50 | VG2000/76 | VG3000/76 |
| Frequency(Hz) | 2-2500 | 2-2500 | 2-2500 | 2-2500 | 2-3000 | 2-2500 |
| Max Exiting Force(kg.f) | 3200 | 4000 | 5000 | 6000 | 2000 | 3000 |
| Max. Displacement (mmp-p) | 50 | 50 | 50 | 50 | 76 | 76 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 | 80 | 80 |
| Max. Velocity(cm/s) | 200 | 200 | 200 | 200 | 200 | 200 |
| Payload(kg) | 500 | 800 | 1000 | 1000 | 1000 | 1000 |
| Armature Mass(kg) | 30 | 40 | 50 | 50 | 25 | 35 |
| Armature Diameter(mm) | φ400 | φ400 | φ450 | φ450 | φ320 | φ320 |
| Cooling Method | Forced Air Cooling | |||||
| Vibration Generator Weight(kg) | 2000 | 2500 | 3500 | 3800 | 2000 | 3000 |
| Vibration Generator Dimension L*W*H(MM) | 1400*900*1100 | 1400*980*1100 | 1600*1120*1340 | 1600*1120*1340 | 850*1000*1100 | 1100*1300*1440 |
| Power Amplifier | Amp35k | Amp50k | Amp60k | Amp70k | Amp30k | Amp45k |
| Cooling Method | Forced Air Cooling | |||||
| Power Amplifier Weight(kg) | 550 | 600 | 800 | 1000 | 550 | 600 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1920 | 800*550*1920 | 800*550*1920 | 800*550*1920 | 800*550*1920 | 800*550*1920 |
| Utility Requirements | 3-phase AC380V ±10% 50Hz | |||||
| Aggregate Capacity(KW) | 45 | 64 | 85 | 95 | 40 | 60 |
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc
1,12 months warranty, lifelong maintenance. If any quality problems on our side occured in this period.
we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer
operation video and English operation muanual. We can provide video-conference. If customers require on-site service,
the transport and travel expense shall be borne by customer.
2,Help choose right model with series of service
3,Customization service-OEM,Design service,Buyer lable
4,Cooperate with measuring if need the third party verification
Welcome to visit Labtone company
Our products have been exported to USA, Mexico, Colombia, Argentina, Dubai, Saudi Arabia, the Philippines, Indonesia, Malaysia, Vietnam, India and other countries.
We hope we can build A GOOD AND STABLE cooperation with you.!!!
.
If you have any inquiry , PLEASE CALL ME ANY TIME. thank you
