CNC Machiene High Pressure Water Jet Cutting Machine Price
US$ 30,000 - 40,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
TIANJUN
Model Number:
TJJ TYPE
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TJ50HB-3020 Stone Machine, Water Jet Cutting MachineUS$ 42,000 - 50,000MOQ: 1 Set -
TJ50HD-3020 Water Jet Stone Cutting MachineUS$ 42,000 - 50,000MOQ: 1 Set
-
TJ50HB-2520 Water Jet Stone Cutter, Marble Cutting MachinesUS$ 42,000 - 50,000MOQ: 1 Set
-
TJ40HD-4020 Water Jet Stone Cutter, Marble MachineUS$ 42,000 - 50,000MOQ: 1 Set
-
TJ40HD-3015 Water Jet Cutting Machine, Stone Cutting MachineUS$ 42,000 - 50,000MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
TIANJUN
Model Number
TJJ TYPE
After-sales Service Provided
Engineers available to service machinery overseas
CNC High Pressure Water Jet Cutting Machine
We can provide 9 types of this machine according to the size of your stone:
TJY-1.2*1.0 ,TJY- 1.6*1.5 ,TJY- 2.0*1.5 , TJY-2.5*1.5 , TJY-2.5*2.0 , TJY-3.0*1.5 , TJY-3.0*2.0 , TJY-4.0*1.5 , TJY-4.0*2.0.
With high pressure pump, original USA ACC INTENSIFIER. Cutting more accuracy and stable performance.
Machine technical datas
| System features | |||||||
| Cod. | Component | ||||||
| 1 | WORKINGTABLE WITH travel:3000*2000 (have seven size) | ||||||
| 2 | HITH PRESSURE INTENSIFIER PUMP 17.5KW | ||||||
| 3 | CNC NUMERICAL CONTROL INDEPENDENTLY DEVELOPED | ||||||
| 4 | PRESSURIZED ABRASIVE TANKING kg 20 WITH MINIHOPPER | ||||||
| 5 | I CUTTING HEAD IMPORT FROM ENGLAND | ||||||
| 6 | INDEPENTLY DEVELOPED SOFTWARE WITH AUTOMATIC NESTING | ||||||
| WORKING TABLE AREA | OUTSIDE TABLE DIMENSIONS | |
|||||||||
| X- AXIS | 3000 MM | X- AXIS | 3050MM | ||||||||
| Y- AXIS | 2000MM | Y- AXIS | 2050MM | ||||||||
| Z- AXIS | 150MM | Z- AXIS | 150MM | ||||||||
| WORKING TABLE HEIGHT | 1000MM | CUTTING ACCURANCY | 0.2MM | ||||||||
| Voltage/Frequency | 380V/50HZ | ||||||||||
| REPEATIBILITY | 0.01MM | RAPID TRAVERSE SPEED | 0~ 12M | ||||||||

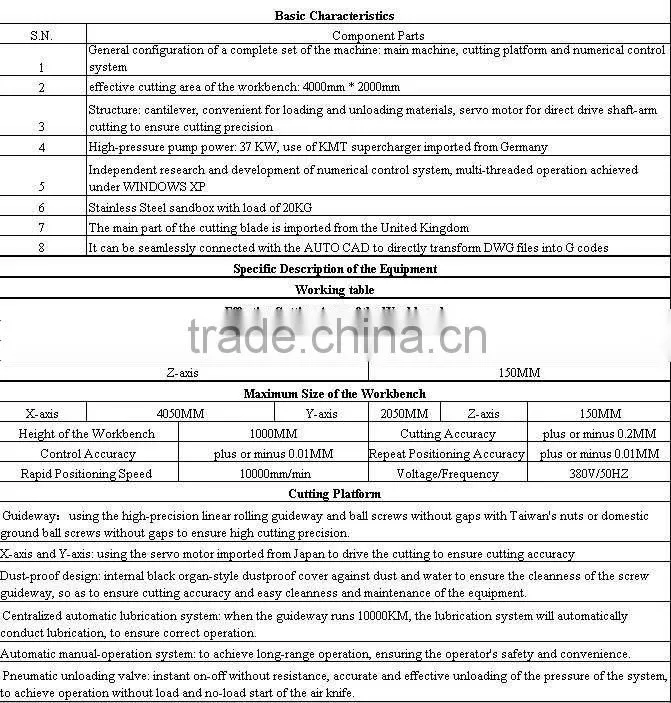

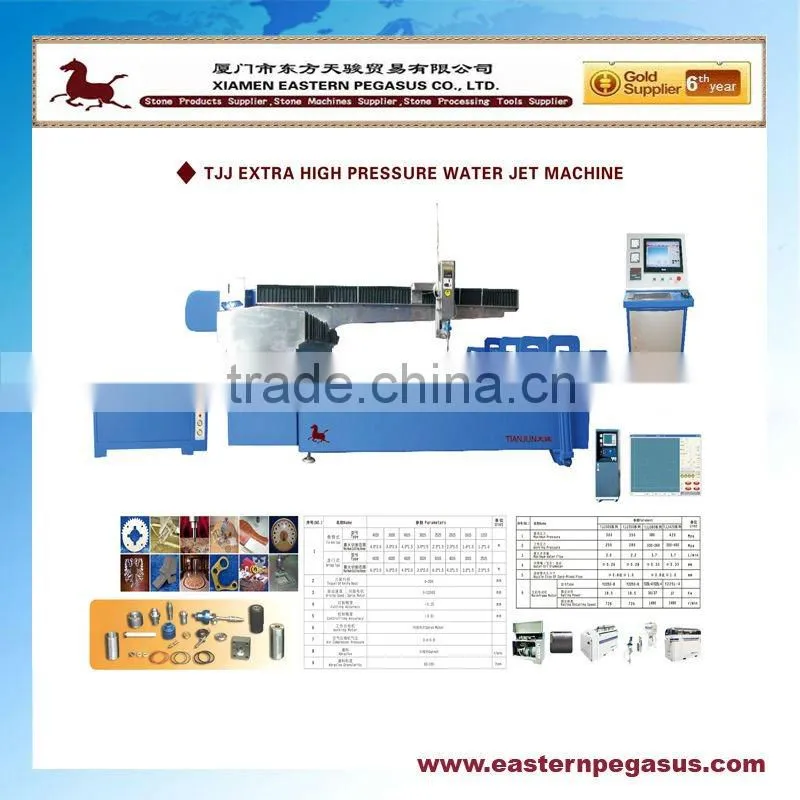

Water jet machine basic characteristics:

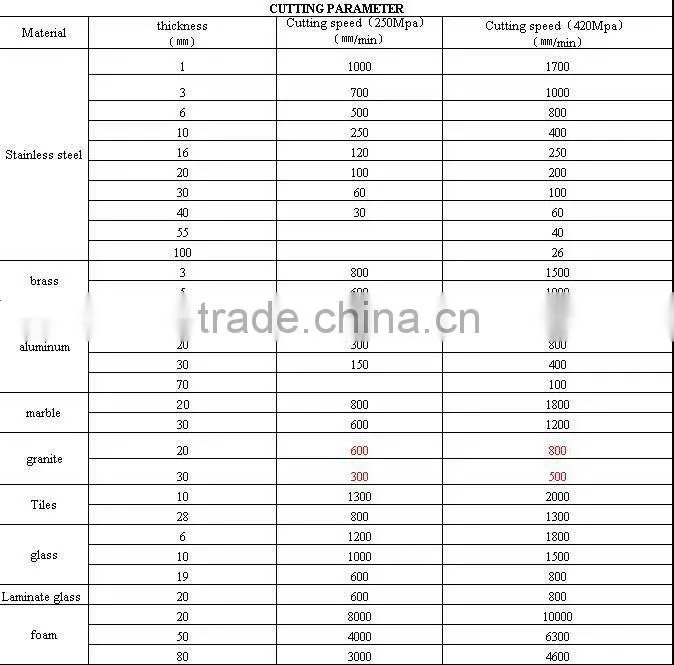

Water jet machine cutting parameter

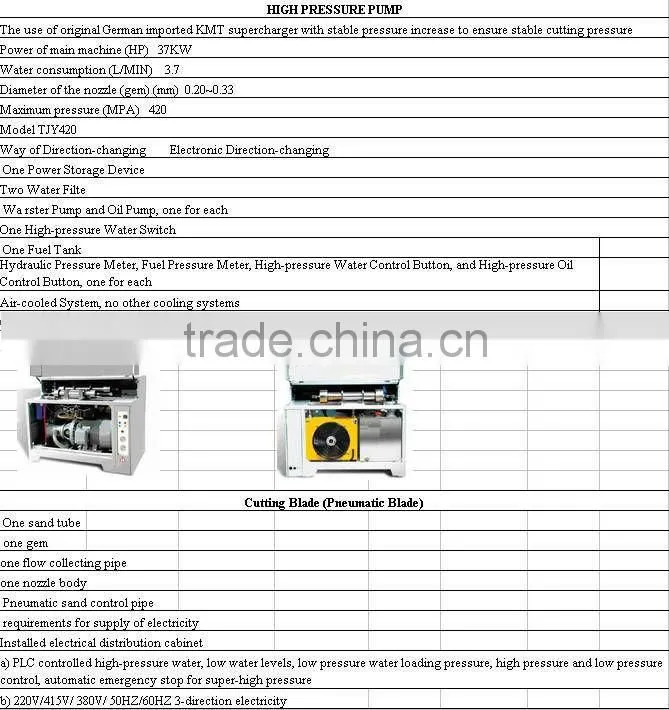

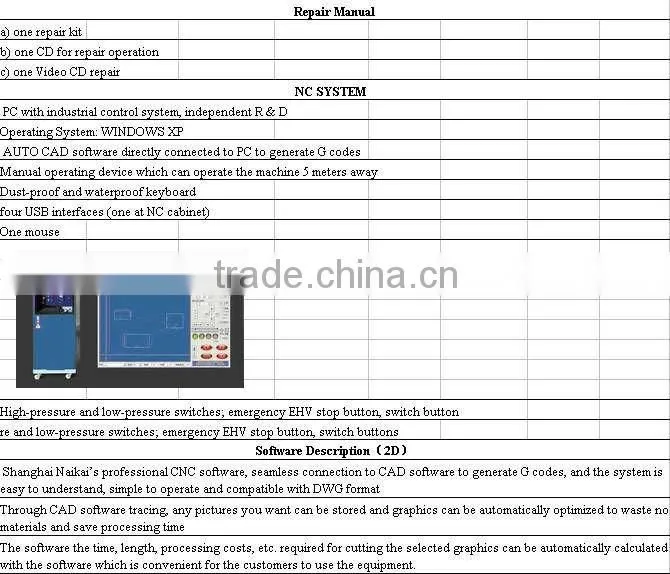

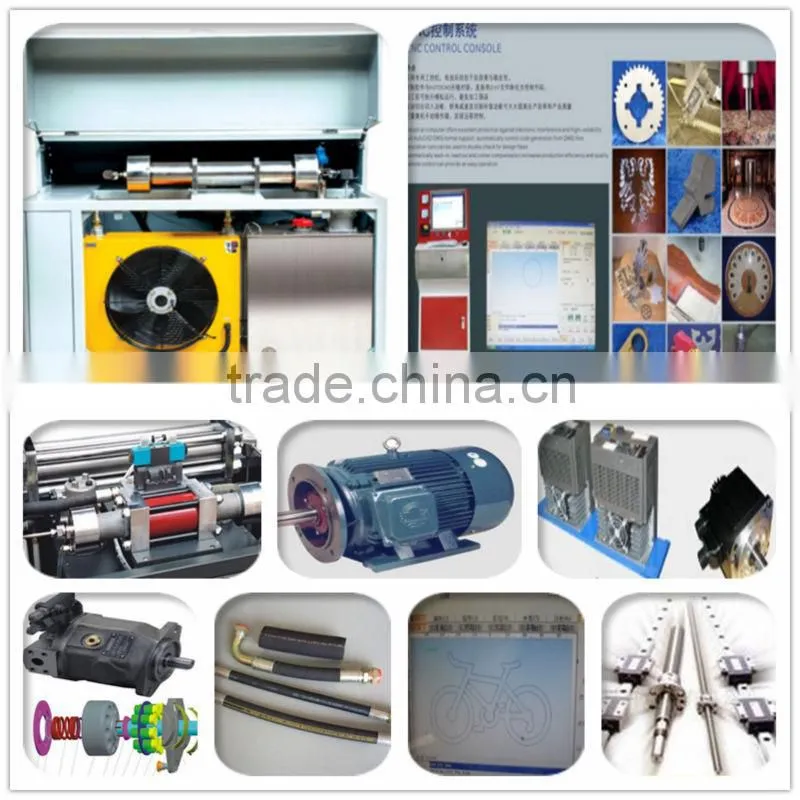

Water Jet Machie material parts details:

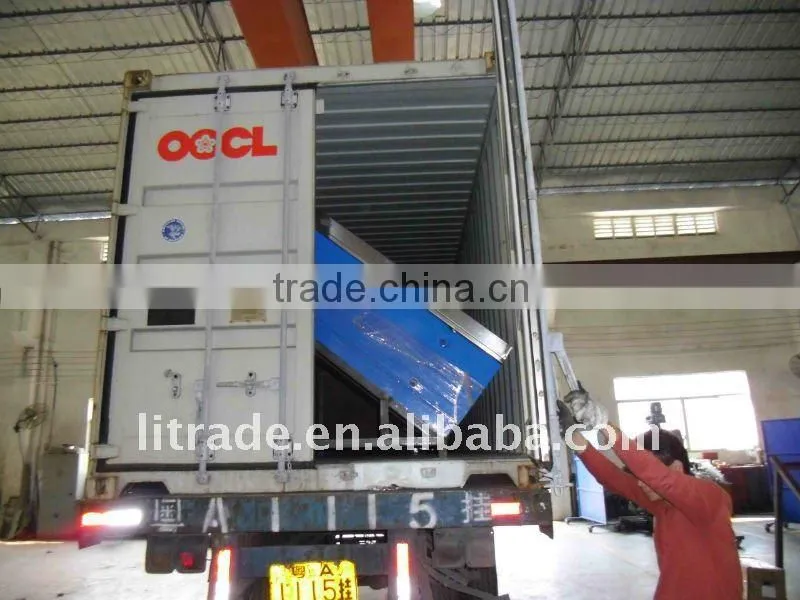

Water Jet Machine packaging photos:

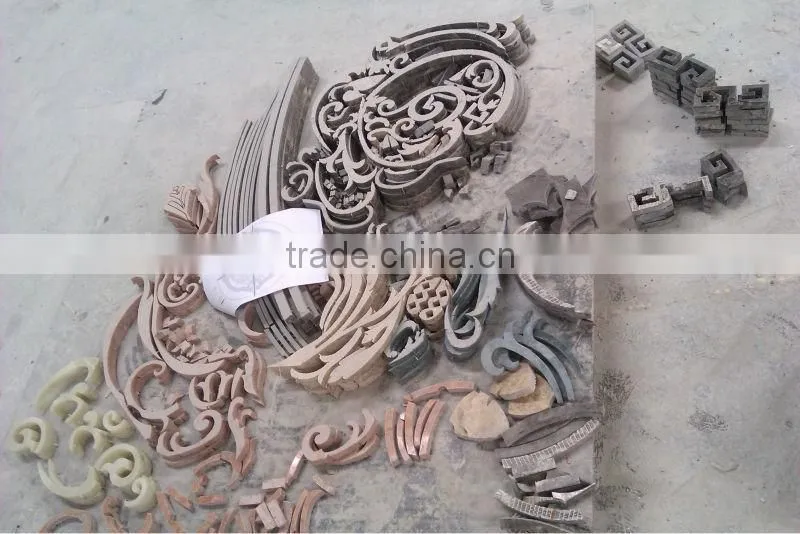

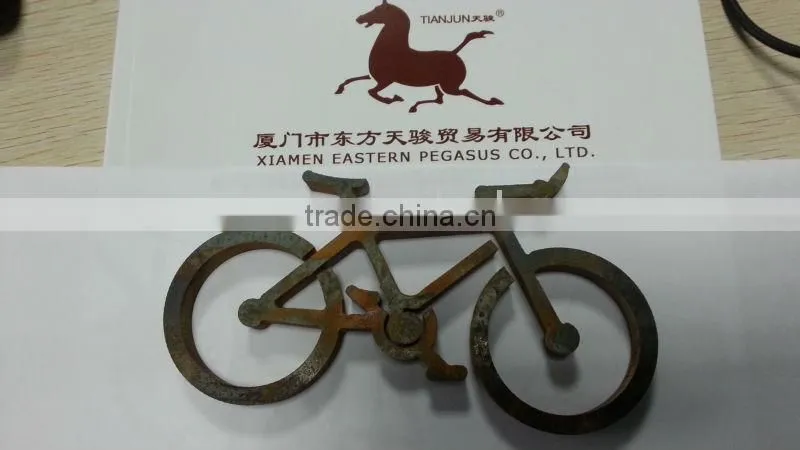

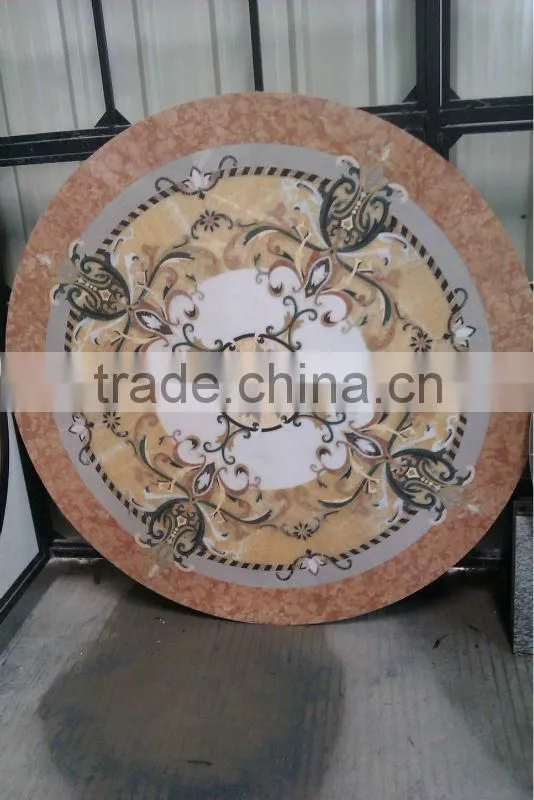

Water jet final products can be:
