TJ 50HD-3020 Water Jet Stone Cutting Machine
With the high pressure of water, cutting different sharps of stone, then make them together into the beautiful picture. Mainly used for hotel floor or wall.
For cutting marble or granite.
General configuration of a complete set of the machine: main machine, cutting platform and numerical control system
effective cutting area of the workbench: According need to choose
Structure: cantilever, convenient for loading and unloading materials, servo motor for direct drive shaft-arm cutting to ensure cutting precision
High-pressure pump power: 37 KW, use of KMT supercharger imported from Germany
Stainless Steel sandbox with load of 20KG
The main part of the cutting blade is imported from the United Kingdom
Guideway:using the high-precision linear rolling guideway and ball screws without gaps with Taiwan's nuts or domestic ground ball screws without gaps to ensure high cutting precision.
X-axis and Y-axis: using the servo motor imported from Japan to drive the cutting to ensure cutting accuracy
Dust-proof design: internal black organ-style dustproof cover against dust and water to ensure the cleanness of the screw guideway, so as to ensure cutting accuracy and easy cleanness and maintenance of the equipment.
Centralized automatic lubrication system: when the guideway runs 10000KM, the lubrication system will automatically conduct lubrication, to ensure correct operation.
Automatic manual-operation system: to achieve long-range operation, ensuring the operator's safety and convenience.
Pneumatic unloading valve: instant on-off without resistance, accurate and effective unloading of the pressure of the system, to achieve operation without load and no-load start of the air knife.
Independent research and development of numerical control system, multi-threaded operation achieved under WINDOWS XP
It can be seamlessly connected with the AUTO CAD to directly transform DWG files into G codes.
One Power Storage Device,Two Water Filte, Water Pump and Oil Pump(one for each),One High-pressure Water Switch, One Fuel Tank,
Hydraulic Pressure Meter, Fuel Pressure Meter, High-pressure Water Control Button, and High-pressure Oil Control Button(one for each)
Air-cooled System, no other cooling systems,One High-pressure Pipe(7~ 10meters)
| Model | TJ50HD-3020 | |
| Max. Working Pressure | MPa | 420 |
| Working Pressure | MPa | 350~400 |
| Max. Flow Rate | L/min | 3.7 |
| Diameter Of Orifice | mm | 0.25~0.33 |
| Nozzle Size | mm | 0.8~1.0 |
| Main Motor Power | kW | 37 |
| Biggest Cutting Range | mm | 3000*2000 |
| Cutting Accuracy | mm | ±0.1 |
| Repeat Positioning Accuracy | mm | ±0.01 |
| Control Accuracy | mm | ±0.01 |
| Rapid Positioning Speed | mm/min | 8000 |
| Travel Knife Rest | mm | 150 |
| Worktable Type | Cantilever | |
| Working Motor Type | YASKAWA Servo Motor | |
| Abraslve | Garnet | |
| Control System | 3-axis-linkage System(5-axis-linkage Optional) |

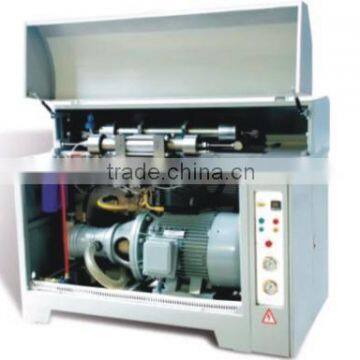

Photos of the machine parts:

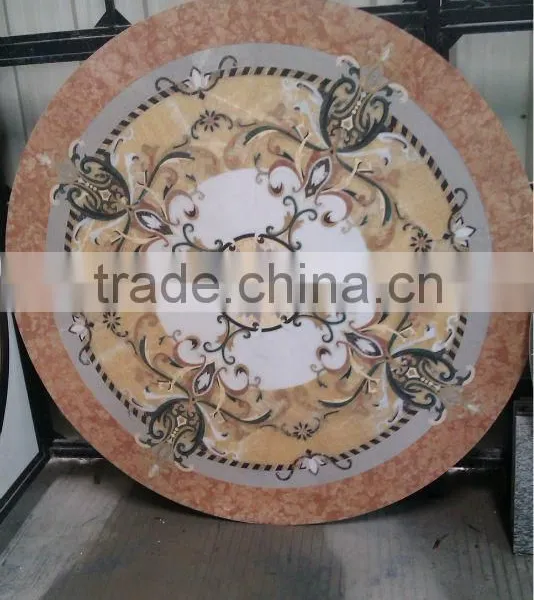

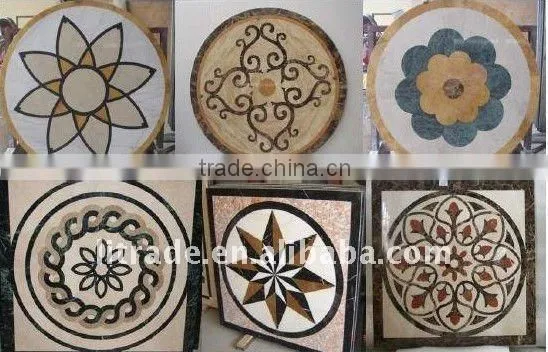

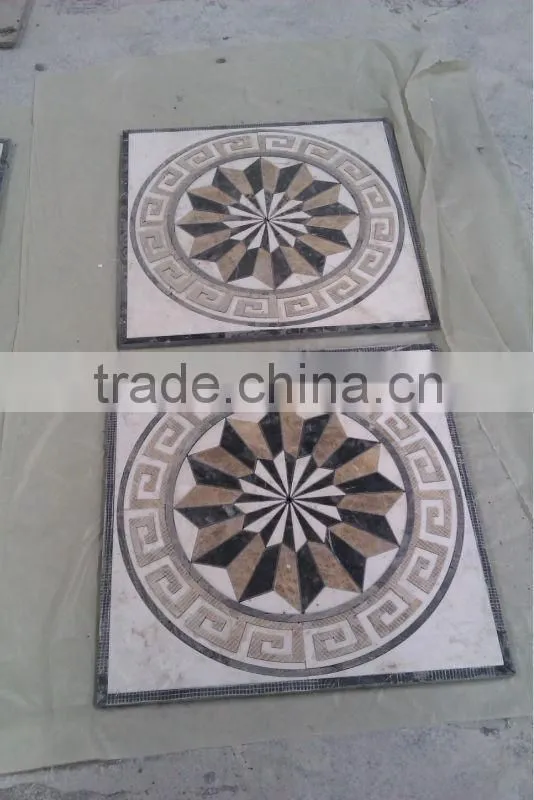

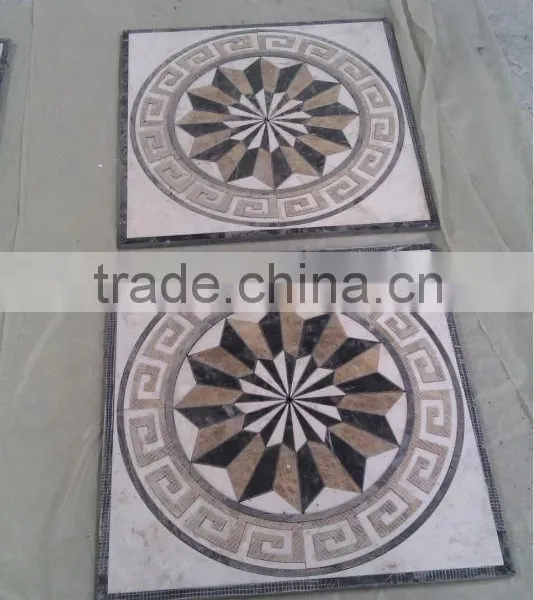

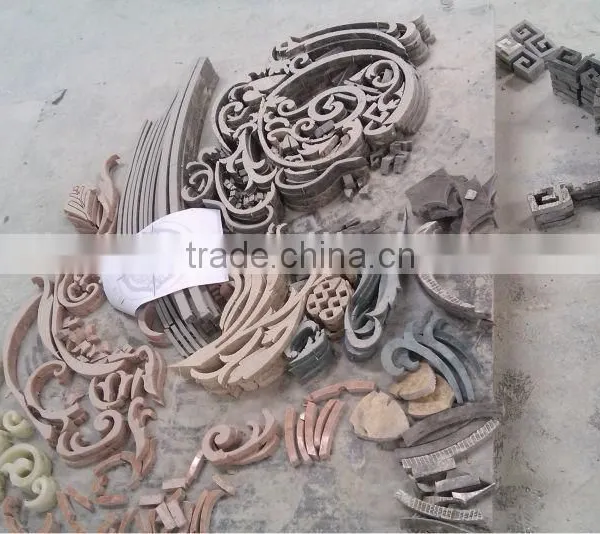

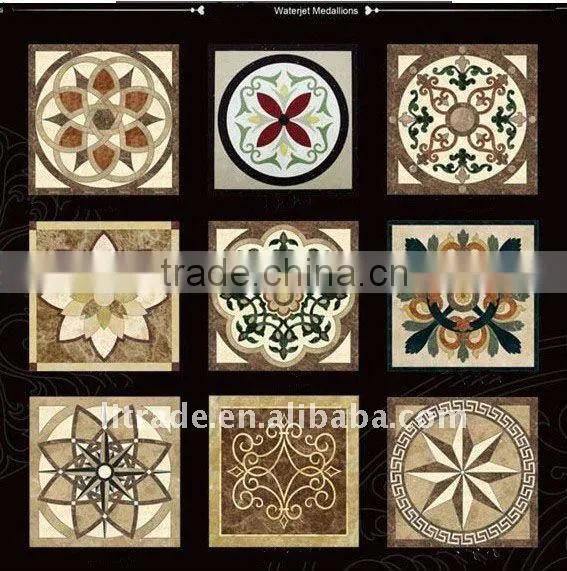

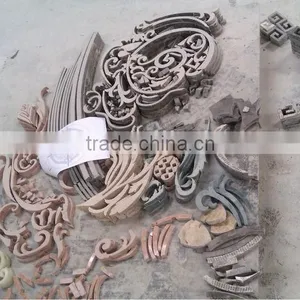

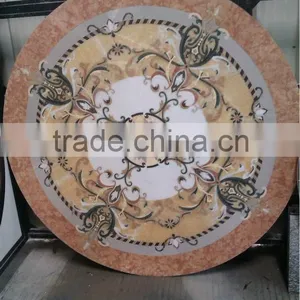

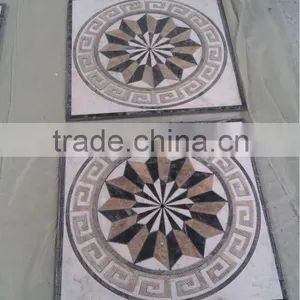

Final products:

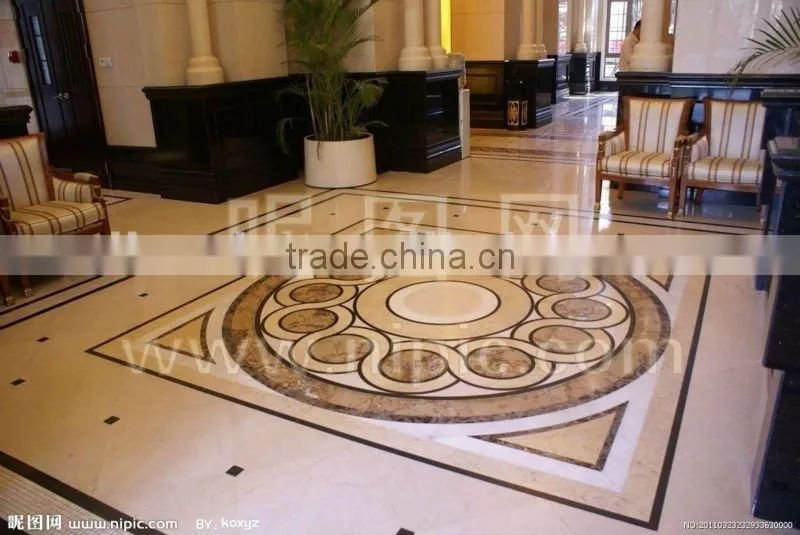

Put on the hotel floor.
