TJ40HD-2515 TYPE Super-high Pressure Water jet Cutting Equipment
With high pressure pump, original USA ACC INTENSIFIER. Cutting more accuracy and stable performance.
Machine technical datas
| Model | TJ40HD-2515 | |
| Max. Working Pressure | MPa | 380 |
| Working Pressure | MPa | 0~350 |
| Max. Flow Rate | L/min | 3 |
| Diameter Of Orifice | mm | 0.28~0.30 |
| Nozzle Size | mm | 0.8~1.0 |
| Main Motor Power | kW | 30 |
| Biggest Cutting Range | mm | 1500*2500 |
| Cutting Accuracy | mm | ±0.1 |
| Repeat Positioning Accuracy | mm | ±0.01 |
| Control Accuracy | mm | ±0.01 |
| Rapid Positioning Speed | mm/min | 8000 |
| Travel Knife Rest | mm | 150 |
| Worktable Type | Cantilever | |
| Working Motor Type | YASKAWA Servo Motor | |
| Abrasive | Garnet | |
| Control System | 3-axis-linkage System(5-axis-linkage Optional) | |
| Way of Direction-changing | Electronic Direction-changing |
Water Jet Machine photos:

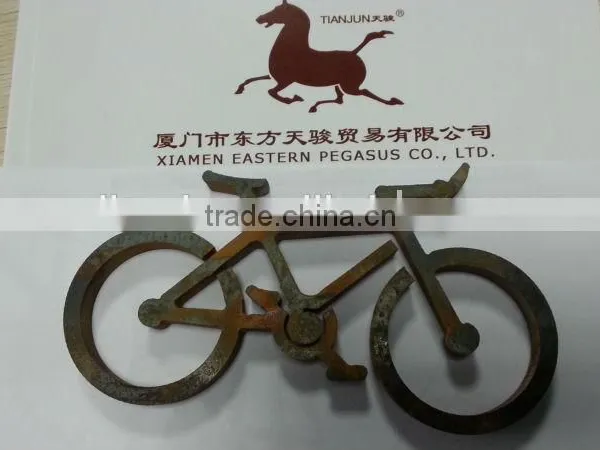

Water jet final products can be: marble, granite, metal, glass, etc.
QUALITY CONTROL:
We can ensure to offer you the good quality products in very reasonable and competitive price, also the full service all the time.
STONE FAIR:
We have attended the stone fair in different countries, such as Russia, Egypt, Brazil, Vietnam, Turkey, India, etc. And you can always find our booth in Xiamen Stone Fair. Welcome to come and visit our company anytime.
OUR CUSTOMERS COVER:
Thanks to the recognition and support of our customers, we have exported products to more than 65 different countries till now, and the number is increasing year by year.
OUR COMPANY:
We are located in the beautiful city, Xiamen, China. Established in March, 2006.
Contact US:
Please feel free to contact us if you get any question or new inquiry,
Also welcome to come and visit our company anytime for further business discussion!
