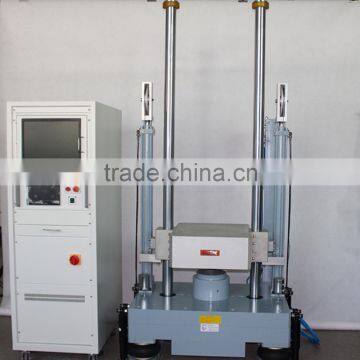

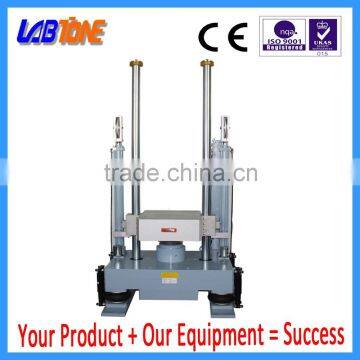

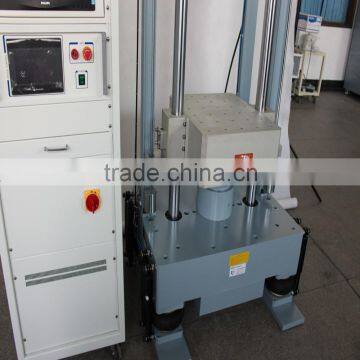

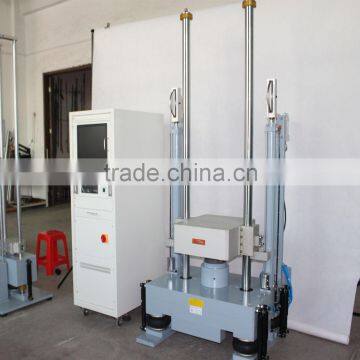

Automatic operation mechanical shock testing machine
Shock testing systems Design standards: GB/T2423-2008, GJB1217, GJB360.23, GJB150, GJB548, MIL-STD-202F, IEC-68-2-27, MIL-STD-883E, MIL-STD-810F, ISTA, UL
Shock testing systems Applications: aviation,aerospace,vessel,military industry,consumer electronics ,automobile,household appliances, display device etc.
Shock testing systems Features
- User-friendly touching screen operation.Half sine, square waveform shock pulse programmers.High rigidity shock tables.
- Half sine, square waveform shock pulse programmers.
- High rigidity shock tables.
- A full range of safety features.
- Apply air and hydraulic pressurization, strong friction brake avoiding secondary shock.
- Apply air spring suspension, hydraulic damping shockproof system, no shock impact on the surrounding, without foundation.
Shock testing System Block Diagram
Shock testing systems Specifications
| Model | SKT30 | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | SKT1000 | |
| Table size (cm) | 40*40 | 50*60 | 70*80 | 100*100 | 120*120 | 150*150 | 200*200 | |
| Maximum Specimen Weight(Kg) | 30 | 50 | 100 | 200 | 300 | 600 | 1000 | |
| Max. Acceleration (G) | half sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 |
| saw-tooth waveform | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| square | 150 | 150 | 150 | 100 | 100 | 100 | ||
| Pulse Duration (ms) | half sine | 40—0.2 | 40~1 | 40~1 | 30~2 | 20~3 | 20~3 | 20~3 |
| saw-tooth waveform | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | |
| square | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | ||
| Machine Dimension(cm) | 120*110*245 | 130*140*260 | 130*120*260 | 150*130*260 | 200*160*300 | 230*180*310 | 250*220*310 | |
| Controller cabinet Dimension(cm) | W55*D50*H80 | |||||||
| Machine Weight(Kg) | 1900 | 2300 | 3200 | 4200 | 8500 | 15500 | 19500 | |
|
Utility Requirements |
3-phase AC380V 50/60Hz 0.5~0.8MPa | |||||||
| Conforming standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL | |||||||
| Model | HSKT10 | HSKT10 | GSKT10D |
| Table size (cm) | 15*15 | 20*20 | 20*20 |
| Shock pulse | Half sine | ||
| Maximum Specimen Weight(Kg) | 5 | 10 | 10 |
| Acceleration Range(G) | 20 ~ 1500 | 20 ~ 1500 | 20 ~ 10000 |
| Pulse Duration (ms) | 0.5~11 | 0.5~11 | 0.2~11 |
| Machine Dimension(cm) | 60*55*250 | 60*55*250 | 90*70*275 |
| Utility Requirements |
AC220V 50Hz 5A,Air pressure: more than 0.5Mpa | ||
| Machine Weight(Kg) | 600 | 650 | 110 |
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc
1,12 months warranty, lifelong maintenance. If any quality problems on our side occured in this period.
we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer
operation video and English operation muanual. We can provide video-conference. If customers require on-site service,
the transport and travel expense shall be borne by customer.
2,Help choose right model with series of service
3,Customization service-OEM,Design service,Buyer lable
4,Cooperate with measuring if need the third party verification
Welcome to visit Labtone company
Our products have been exported to USA, Mexico, Colombia, Argentina, Dubai, Saudi Arabia, the Philippines, Indonesia, Malaysia, Vietnam, India and other countries.
We hope we can build A GOOD AND STABLE cooperation with you.! ! !
If you have any inquiry PLEASE CALL ME ANY TIME. thank you
