Home > Products > wpc machine > Professional R & D WPC Foam Board Machine/Extruder
Professional R & D WPC Foam Board Machine/Extruder
- Qingdao
- T/T
You May Like
-
WPC Machine for WPC Foam Board/ WPC Celuka Foam Board/WPC Furniture Board
-
PVC WPC Foam Board Machine to Replace Plywood Machine
-
Wood Plastic Composite Machine/WPC Foam Board Extruder Machine/Wood Plastic Machine
-
Wood Plastic Extruder Machine for WPC Foam Board Production Line
-
/WPC Foam Board Extrusion Line/WPC Production Line/WPC Foam Board Machine
-
Reusable PVC Construction Formwork Extrusion Line, PVC Foam Board Machine, WPC Foam Board Production Line
Product Details
| Condition | New | Application | Plates | |
| Plastic Processed | PVC | Screw Design | Double-screw | |
| Automatic Grade | automatic | Place of Origin | Shandong, China | |
| Brand Name | SANYI | Model Number | SJSZ80/156 | |
| Voltage | 380-440V | Power(W) | 120kw | |
| Dimension(L*W*H) | 25m*3m*3m | Weight | 28t | |
| Certification | CE, ISO9001, SGS, TUV | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Professional R & D WPC Foam Board Machine/Extruder
Brand Name: SanYi
Certificate: CE, ISO9001, SGS, TUV
Output Capacity: 400kg/h
Specification of finished board: 1220*2440*(3-30) mm or 915*1830*(3-30)mm
After-sales Service : Engineers available to serve overseas
Screw Design: Conical double screw
Model Number: SJSZ80/156
Voltage: 380-440V
Main Motor Power: 120kw
Dimension (L*W*H): 25m*3m*3m
Weight: 28t
Density of finished board: 0.37-0.85 adjustable
Application of Foam Board: Furniture board, construction formwork, decoration board, advertisement board, wall panels, roof, car and boat board etc.
Packing Details: Wood package and PE film covered 2 containers.
Delivery Details: 30 working days
PRODUCT INTRODUCTION
PVC WPC Foam Board Machine is our latest updated products. It's continuously improved during the last 8 years on the basis of requirements and feedbacks from our customers and combined with foreign advanced technology. It shows superior performance, high reliability and practicality with its compact structure, advanced configuration and outstanding output in the production of 3-30mm thick, high-qualified PVC WPC foam board.
PVC WPC Foam Board can be worked with the tools for wood material. It’s easy for sawing, drilling, nailing, bonding and planning. Meanwhile, pvc foam board combines the wood texture of wood and the anticorrosion and waterproof features of plastic. It is a kind of durable outdoor waterproof and anticorrosion building material with excellent performance.

The only professional Manufacturer of PVC Crust Foam Board Machine in China!!!
Dedicated to research and development of crust foaming technology for 8 years!!!
customers all over the world
TECHNIQUE GUARANTEE
Our PVC WPC Crust foam board machine adopts Celuka foam technology, which can produce a kind of PVC WPC foam boards with superior quality. These processes result in a "skinning" or outer layer of foam board and harder or more scratch resistant. This kind of PVC WPC foam board can not only have much smoother surface but also have more skin hardness compared with other PVC WPC boards.

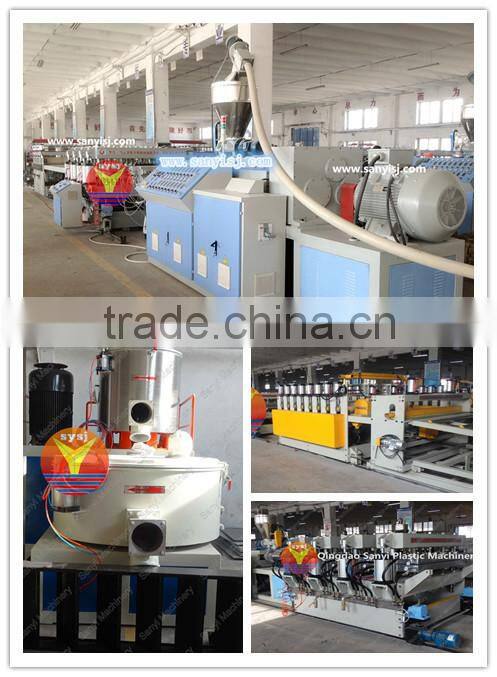

EQUIPMENT STRUCTURES
| Component | Specification |
1 | The 11th Generation Extruder | 75kw (speed adjusted by SIEMENS inverter) 80/156 conical double screw OMRON Temperature controller Output is about 400kg/h. Automatic feeder |
2 | The 11th Generation Mould | (3mm-30mm) x1220mmx2400mm |
3 | Calibration Unit | Calibration plate: 1500mm× 500mm 4couples |
4 | Cooling roller system | Length: 6000mm Trimming knife: 3 sets |
5 | Haul off machine | 8 pairs rubber rollers (controlled by inverter) and electric trimming machine |
6 | End Cutter | controlled by inverter |
7 | Stacker |
|
TOP ELECTRICAL CONFIGURATION
1. Main motor frequency controller: SIEMENS or ABB
2. Temperature controller: OMRON or RKC
3. AC controller: SCHNEIDER or SIEMENS
4. Thermal overload relay: SCHNEIDER
5. Switch: SCHNEIDER

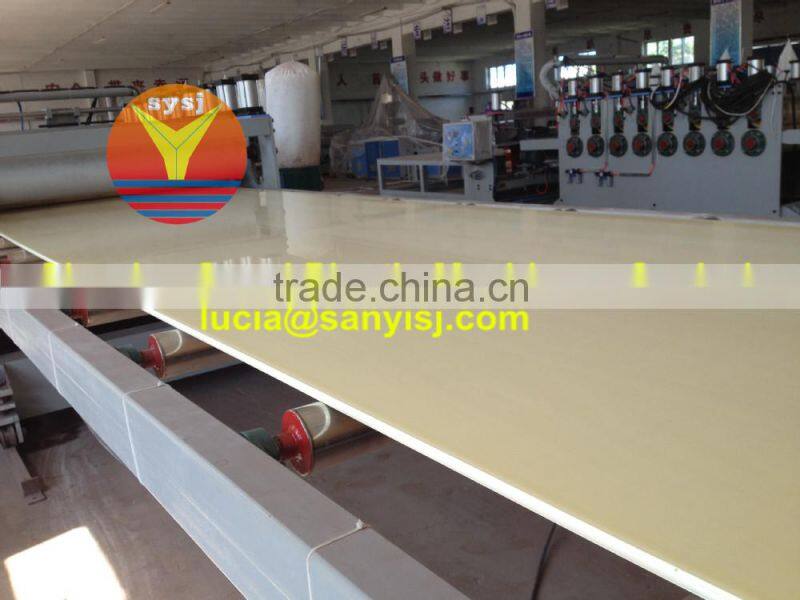

PRODUCTION PROCESSING
Material Mixing: PVC + additives or PVC + wood powder + additives
Extrusion Processing: mixed material going through the extruder, Mould, calibration unit, cooling carrying roller and trimming cutter, and delivery device.

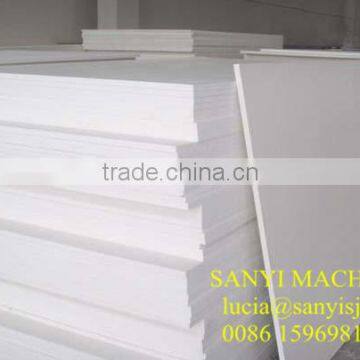

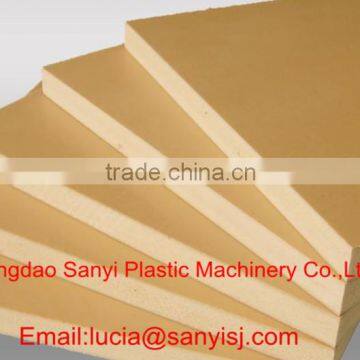

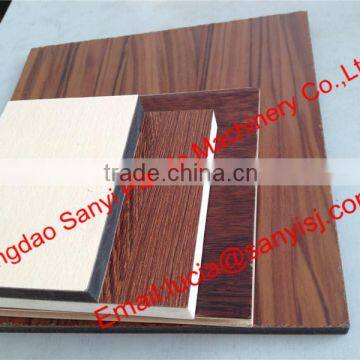

Final Products: PVC or WPC foam board

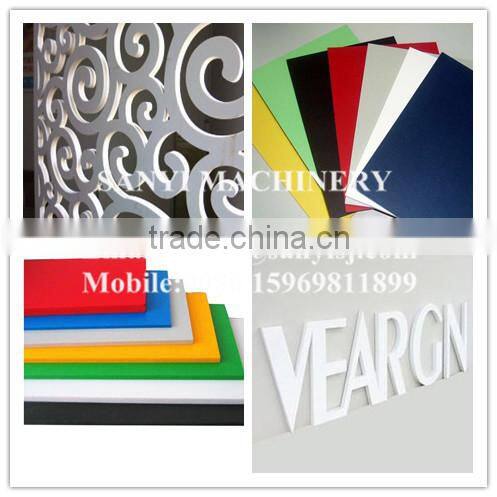

Application of PVC Crust Foam Board
1. Construction industry:
Building formwork board, outdoor board, indoor decoration board, residential house board, office board, separation wall of public building, commercial decoration frame, board used in dust-free room, etc.
2. Furniture and Household decoration:
Bathroom cabinet board, kitchen cabinet board, furniture board, home decoration board, various household shelves, etc.
3. Advertisement industry:
Screen printing, computer engraving, advertisement board, exhibition plate, logo plate, etc.
4. Transportation industry:
Ship, plane, bus, and train, floor covering, core layer, indoors decoration plate, etc.
5. Industrial application:
Suitable for rot-proof project in chemical industry, thermal forming, refrigeration warehouse, etc.
6. Other applications:
Construction formwork, sports apparatus, aquaculture material, seashore wet-proof facility, water-resistant material, arts material and all sorts of light separation plate, etc.
Packing Details: Wood package and PE film covered 2 containers.
Delivery Details: 30 working days
1. Pre-sale service:
To provide market research information and consultation
To provide all kinds of convenience and market service.
To help customers make project planning and systematic analysis
To maximize customer's satisfaction
To achieve the mutual benefits of our customers and our company
2. After-sale service:
To install products and test products for customers
To provide the formulas and technologies of relevant products and the information of chemical materials manufactories
To provide technical direction according to customers' requirements
To provide technical training for clients' employees
To be responsible for maintenance service, door-to-door service under necessary circumstance.
We specialize in manufacturing of PVC (WPC) Crust/Skinning Foam Board Extrusion Line in China. We have been keeping researching and developing our production line for more than 8 years and have improved to the latest 13th generation. Our PVC/WPC foam board extrusion line shows superior performance and capacity. It can be used to produce pvc/wpc construction formwork board, pvc/wpc furniture board, pvc/wpc advertisement board, pvc kitchen/bathroom cabinet board and so on.
Now we share 30% of the domestic market and also exported our products to the world such as America, India, Mongolia, Turkey, Kuwait, Romania, Dubai etc.
