UL standard 3 phase power supply shock testing machine for packaged freight
- 100 Set / Sets per Month
- Shenzhen
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | LABTONE | Model Number: | SKT200 |
Power: | Electronic | Usage: | Impact Testing Machine |
Product Description

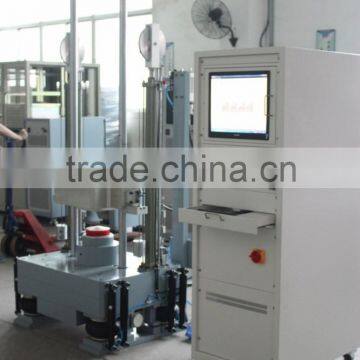

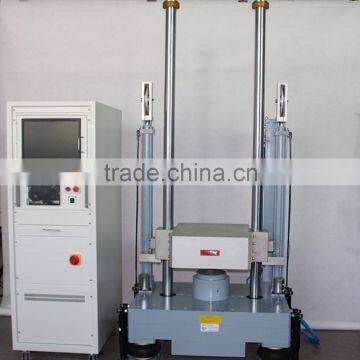

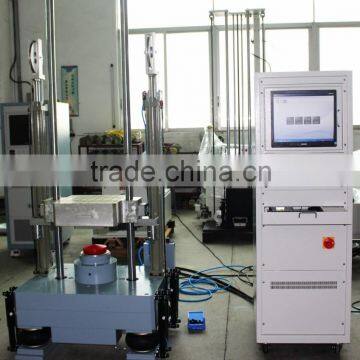

UL standard 3 phase power supply shock testing machine for packaged freight
Shock testing systems Design standards: GB/T2423-2008, GJB1217, GJB360.23, GJB150, GJB548, MIL-STD-202F, IEC-68-2-27, MIL-STD-883E, MIL-STD-810F, ISTA, UL
Shock testing systems Applications: aviation,aerospace,vessel,military industry,consumer electronics ,automobile,household appliances, display device etc.
Shock testing systems Features
- User-friendly touching screen operation.Half sine, square waveform shock pulse programmers.High rigidity shock tables.
- Half sine, square waveform shock pulse programmers.
- High rigidity shock tables.
- A full range of safety features.
- Apply air and hydraulic pressurization, strong friction brake avoiding secondary shock.
- Apply air spring suspension, hydraulic damping shockproof system, no shock impact on the surrounding, without foundation.
Shock testing System Block Diagram
Shock testing systems Specifications
Model | SKT30 | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | SKT1000 | |
Table size (cm) | 40*40 | 50*60 | 70*80 | 100*100 | 120*120 | 150*150 | 200*200 | |
Maximum Specimen Weight(Kg) | 30 | 50 | 100 | 200 | 300 | 600 | 1000 | |
Max. Acceleration (G) | half sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 |
saw-tooth waveform | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
square | 150 | 150 | 150 | 100 | 100 | 100 | ||
Pulse Duration (ms) | half sine | 40—0.2 | 40~1 | 40~1 | 30~2 | 20~3 | 20~3 | 20~3 |
saw-tooth waveform | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | |
square | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | ||
Machine Dimension(cm) | 120*110*245 | 130*140*260 | 130*120*260 | 150*130*260 | 200*160*300 | 230*180*310 | 250*220*310 | |
Controller cabinet Dimension(cm) | W55*D50*H80 | |||||||
Machine Weight(Kg) | 1900 | 2300 | 3200 | 4200 | 8500 | 15500 | 19500 | |
Utility Requirements | 3-phase AC380V 50/60Hz 0.5~0.8MPa | |||||||
Conforming standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL |
Model | HSKT10 | HSKT10 | GSKT10D |
Table size (cm) | 15*15 | 20*20 | 20*20 |
Shock pulse | Half sine | ||
Maximum Specimen Weight(Kg) | 5 | 10 | 10 |
Acceleration Range(G) | 20 ~ 1500 | 20 ~ 1500 | 20 ~ 10000 |
Pulse Duration (ms) | 0.5~11 | 0.5~11 | 0.2~11 |
Machine Dimension(cm) | 60*55*250 | 60*55*250 | 90*70*275 |
Utility Requirements | AC220V 50Hz 5A,Air pressure: more than 0.5Mpa | ||
Machine Weight(Kg) | 600 | 650 | 110 |
Shenzhen Labtone Test Equipment Co., Ltd. was established in 2002 and specialized in simulation testing equipment under mechanical environment, integrating development and production together. This includes Vibration testing systems, Shocking testing systems, Drop tester, Bump testing machines, Vibration-temperature humidity combined reliability testing systems, etc. Our products are used in a variety of applications, such as automotive,electronics,aerospace,vessel,telecommunication,optoelectronics ,instrument etc. Currently, our products are exported to Southeast Asia, Occident and other countries and regions. And they are widely recognized and trusted by users. Besides, we are making great efforts to develop new products to meet different requirements. Adhering to the business principle of mutual benefits, we have built up a good reputation among our customers due to our perfect services, quality products and competitive prices. We warmly welcome customers from domestic and overseas to cooperate with us for common success.
