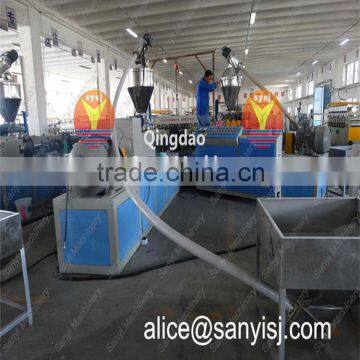

Double-screw designed pvc plastic extruder
Double-screw designed pvc plastic extruder is constituted by conical twin screw extruder,and corresponding PVC Crust Foam mould,calibration mould,cold tray device,haul off parts,cutting edge device stacker and so on.Copact structure,superior performance.The gear device,screw barrel and foaming T-die all was co-researched together by Chinese well-known manufacture,Extruder adopts frequency control,screw and barrel is specially designed super cone structure,compared with conventional extrusion increased by 30%,saving 20-30%,with plastic uniform,stable extrusion,high output,longevity long and so on.
The constituent part of the foam board machine:
| No | Parts of production line | Description |
| 1 | SJSZ 80/156 Conical twin Screw Extruder line | SIEMENS contactor,ABB frequency converter,Main Motor power:75KW |
| 2 | Mould(T-Die) | Width:1320mm |
| 3 | Calibration unit | Calibration plate:1500mm*600mm 4 coupples |
| 4 | Cooling tank and bracket | Length:6000mm Trimming knife:3sets |
| 5 | Haul -off unit | Cylinder clamping and loosening 8 couples |
| 6 | Cutting unit | Across cutting Lengthwise cutting |
| 7 | Stacker | Automatic |
Extruder:
The power is 75KW,(speed can be adjusted by inverter),output is about 400kg/hour,(specification 1220*2400mm or 915mm*1830mm,Thickness is about 3-30mm).The motor is SIEMENS,Inverter is ABB or SIEMENS,Tmperature controller is OMRON,and Contactor is SCHNEIDER or SIEMENS,others are China famous brand Chint.
The mould:
The lastest twelfth generation mould(The mould is designed by ourselves,and produced by the famous manufacturer in China).
pvc foam board forming machine:
4pairs calibrator blocks,the shaping plate is thickened,widening,aggravating,chase hole,multi-channel,spacing can be adjusted ,this technology has costed our company 8 years to improve it gradually,it is the other manufacturers can not imitate.
Coolong roller system and cut blade trimming machine:
Haul off machine:
8 pairs rubber rollers(controlled by inverter) and electric trimming machine

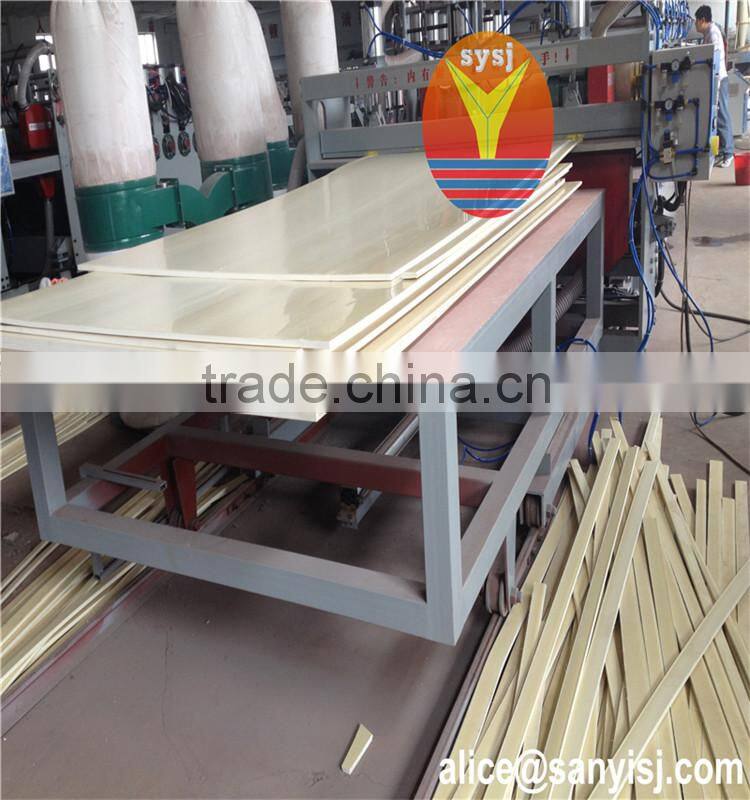

Stacker:
The advantages of the machine:
1.ABB Frequency Converter, SIEMENS Contactor, OMRON Japan, Motor Power:75KW.
2.Motor is authentic Siemens motor,not like Siemens Beide.(From outside it is big difference).
3.Screw and screw barrel:we bought from other company,But it makes it according to my company requirement and with my company LOGO.
4.The mould is designed by our company,and the technology is the latest in China.
5.Calibration mould:Thickness is 100mm.and the distance between each pair mould can be adjusted according to the application of board.
6.Haul off machine motor:Two motors,one motor can control 4 pairs rollers,another motor control another 4 pairs rollers.if thickness is 5mm just work one motor is ok,can save more electricity powder for you in long time.
7.Material formulation:we can input 100%recycled material.
8.New stacker:can save more manpower cost for you.
9.Our certificates :CE,ISO9001,SGS,TUV
10.We have set up the strategic partner relationship with SIEMENS.
The characteristics of PVC(WPC) foam board
First,This is a completely waterproof material, because it is plastic, it is widely used in the place of the outside balcony, Plank Road, a swimming pool, lake, beach, ship deck and so on.
Second, this is a completely anti-termite, anti-moth-eaten material, because it does not contain fibrin.
Third, this is a material with a good performance of flame retardant. We have done experiments. This excellent fire retardant property of foam boards foam is much better then wood and wood-plastic materials.
Fourth, it is one that does not decay, is radiation-free and non-toxic and in line with national testing standards. It is maintenance-free, and the maintenance of pollution can be avoided.
Fifth, the bending resistance of this material and a surface hardness are higher than that of wood, wood materials. The grip nails is stronger than the wood-plastic which is flat with wood.
Sixth, price levels of this material in the current market has the promotion conditions, it is definitely cheap and fine.
Seventh,This foam board is environmental,and it can be used for many times,and it also can be recovery of reproduction.
Application of PVC foam board
Architecture decoration industry:such as building formwork board,outdoors board,indoors decoration board,residential house,office,separation of public building,commercial decoration frame,board used in dust-free room.
Household decoration:bathroom cabinet board,furniture board,home decoration board,various household shelves.
Advertisment industry:screen printing,computer engraving,ad.board,exhibition plate,logo plate.
Transport industry and industrial application also can use it.
Packaging Details:Plywood Package as export standard or according to custom's requirement.
Delivery Time:30days
Pre-sale service:
To provide information and market research,to provide consultation,to provide many kinds of conveniences and market service,etc. Products: PVC Foam Board Machine...
The main purpose of pre-sales service is to help customers make the project planning and system requirements analysis. Make our products maximum to meet clients’ requirements. Also play the greatest overall economic benefits of customers’ investment.
After-sale service:
To install products and test products freely for customers.
To provide the formulas and technologies of relevant products and the information of chemical materials manufactories.
To direct technology aspect of relevant use according to customers’ requirements
To provide technical training for clients’ employees.
To be responsible for maintenance service, door-to-door service under the necessary circumstance.
Technology support:
To provide installation and test for the machine.
To provide formulas and technology of relevant products.
To provide information of chemical material manufactories.
To provide technical training for clients’ employees.
Qingdao Sanyi Plastic Machinery Co., Ltd., located in Qingdao, China, is a professional manufacturer of PVC Celuka Foam Board production line. With more than 10 years' research and development, Qingdao Sanyi now are proud of these production lines: PVC/WPC (Wood Plastic Composit) crust foam board extrusion line, PVC crust foam board extrusion line, PVC wood plastic foam board extrusion line, PVC building board extrusion line and PVC free foam board extrusion line.
