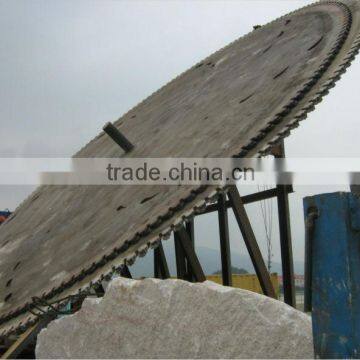

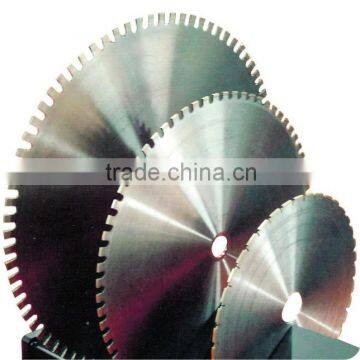

Diamond Segment Circular Saw Blade for Marble Block Cutting (diamond blade)
Diamond Saw Blades for edge cutting of slabs of Marble, Limestone, Kinds of Soft Stones without quartz, Suitable for Bridge Cutting Machine and Single Arm Machine.
Diameter |
Segment Dimension (L × W × H) |
Core Thickness |
Segment Number |
||
L |
W (Box Type) |
H (/ means or) |
|||
900mm |
24 |
6.5 |
8/10/12 |
5.0mm |
64 |
1000mm |
24 |
7.0 |
8/10/12 |
5.0mm |
70 |
1200mm |
24 |
7.5 |
10/12 |
5.5mm |
80 |
1300mm |
24 |
8.0 |
10/12 |
6.0mm |
88 |
1350mm |
24 |
8.0 |
10/12 |
6.0mm |
88 |
1400mm |
24 |
8.5 |
10/12 |
6.5mm |
96 |
1600mm |
24 |
9.0 |
10/12 |
6.5mm |
104/108 |
1800mm |
24 |
9.5 |
10/12 |
7.0mm |
120 |
2000mm |
24 |
10.5 |
10/12 |
8.0mm |
128 |
Wet use only with sufficient water, Fast & Easy cutting, long life, perfect performance.
The above specification is only for Reference, other or special specification can be ordered by customers.
Noted:
Warning: Please use high frequency Silver Welded machine to make the brazing if you only order diamond segments, and not to use Fire to braze the segment to the saw blank, otherwise the diamond will be damaged then the cutting performance will be influenced(Reduced)!
When place order for block cutting diamond saw blades please inform the following:
Diameter (Inch or mm)
Inner Hole Size (Inch or mm)
Installation hole (If, need drawing)
Segment No. (how many pcs segment per blade)
Segment Size (L x W x H, if possible please inform Steel Core Thickness)
Use of saw blade (For Granite, or marble, or limestone, or Sandstone. or other material)
Quantity NO. (How many pcs, or how many sets segments)
Machine Powder/RPM (If possible)
Feed Speed (M/Minute)
Expected Cutting Depth (how many mm per time, forward or backward)
Coolant System (Water or Oil, how many liters/Minute, etc.)
Expected Shipping Date
Special Requirements (If)
If only order block cutting diamond segments please inform the following:
Diameter (Inch or mm)
Segment No. (how many pcs segment per blade)
Segment Size (L x W x H, if better to inform the Steel Core Thickness)
Use of saw blade (For Granite, marble, limestone, Sandstone. or other material)
Quantity NO. (how many sets segments)
Machine Powder/RPM, Feed Speed, Normal Cutting Depth (If possible)
Expected Shipping Date
Special Requirements (If)
(diamond blade,marble blade,saw blade)
Our Telephone No.: 0086-592-5551199

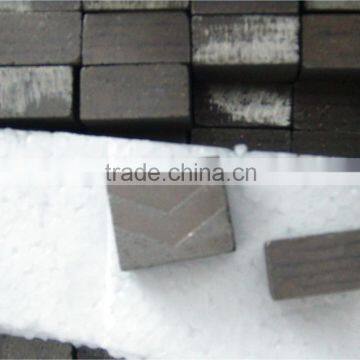

The segments are served here as well.
QUALITY CONTROL:
We can ensure to offer you the good quality products in very reasonable and competitive price, also the full service all the time.
STONE FAIR:
We have attended the stone fair in different countries, such as Russia, Egypt, Brazil, Vietnam, Turkey, India, etc. And you can always find our booth in Xiamen Stone Fair. Welcome to come and visit our company anytime.
OUR CUSTOMERS COVER:
Thanks to the recognition and support of our customers, we have exported products to more than 65 different countries till now, and the number is increasing year by year.
OUR COMPANY:
We are located in the beautiful city, Xiamen, China. Established in March, 2006.
Contact US:
Please feel free to contact us if you get any question or new inquiry,
Also welcome to come and visit our company anytime for further business discussion!
