Diamond Multi-Saw blades and Segments for Granite Block Cutting

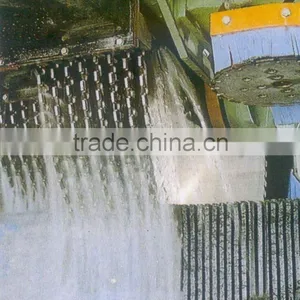

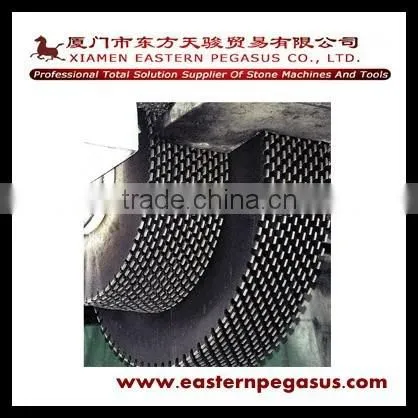

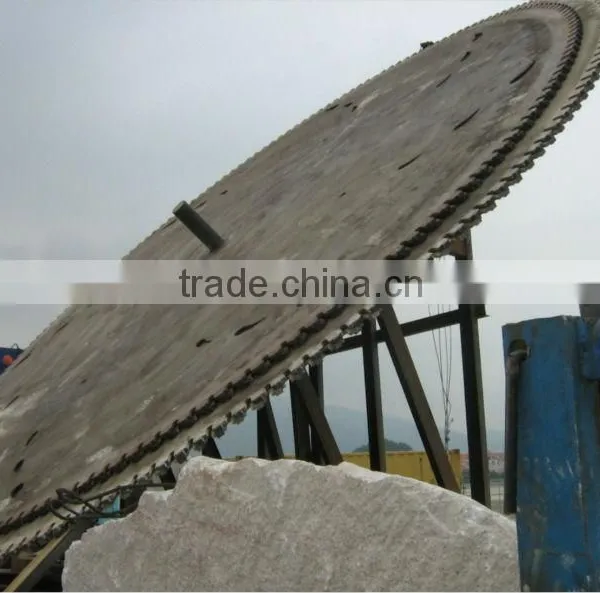

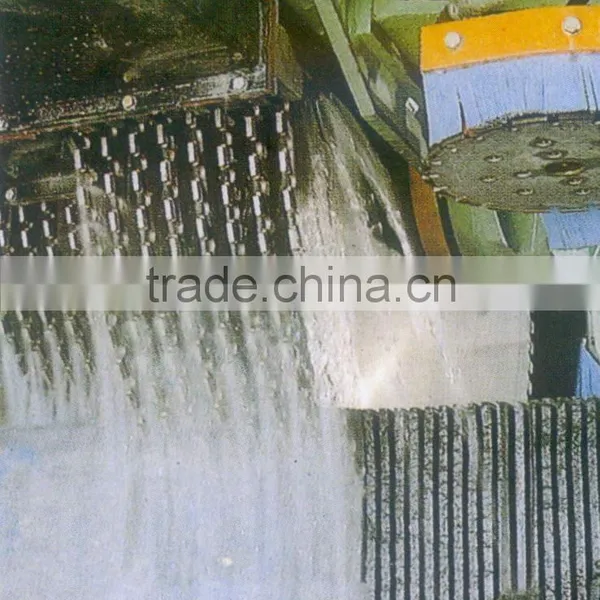

1. Diamond circular saw with multi-blades are specially produced with the characteristics of high efficiency, even thickness of slabs and convenient operation.
2. Dimension Scope: 900mm1600mm.
3. Characteristics: Very easy cutting without swinging, long lifespan.
4. 20-30pcs same diameter diamond saw blades per machine is suitable for 4 column machine, such as 1200mm Multi-Blades, this is popular out of China specially in Iran market.
5. 10-20pcs different diameter(2) diamond saw blades per machine is suitable for single arm machine, like 5 big 5 small blades together (such as 5pcs 1600mm blades and 5pcs 1000mm blades, all segments specification are same), actually this is popular in China during 2002-2005.
6. The following specification is only for reference
Diameter (mm) |
Segment Dimension×W×H(mm) L |
Core Thickness (mm) |
Segment Number |
Application |
900 |
24×6.6/6.2×12/20 |
5.0 |
64 |
For Trimming and Slabbing Granite & Marble etc. |
1000 |
24×7.4/6.8×12/20 |
5.5 |
70 |
|
1100 |
24×7.4/6.8×12/20 |
5.5 |
74 |
|
1200 |
24×7.5/7.0×12/20 |
6.0 |
80 |
|
1300 |
24×8.0/7.4×12/20 |
6.0 |
88 |
|
1400 |
24×9.0/8.4×12/20 |
6.5 |
92 |
|
1600 |
24×9.2/8.6×12/20 |
7.3 |
108 |
|
1800 |
24×10/9.4×12/20 |
7.3 |
120 |
|
2000 |
24×10.4/9.6×15/20 |
8.0/9.0 |
128 |
|
2200 |
24×11.5/10.5×15/20 |
9.0 |
132/136 |
|
2500 |
24×12.5/11.5×20 |
9.5 |
140 |
|
3000 |
24×13.1/12.2/11.5×20/30 |
10 |
160 |
|
3500 |
24×13.8/13/12.2×20/30 |
10 |
180 |
Wet use only with sufficient water, Fast & Easy cutting, long life, perfect performance.
7. Warning: Please use high frequency Silver Welded machine to make the brazing, and not to use Fire to braze the segment to the saw blank, otherwise the diamond will be damaged then the cutting performance will be influenced(Reduced)!
8. Recommendation: Please put 1.0%-1.5% chemical material(Coolant Material) into the water to increase the cutting speed & life.
9. Noted:
When place order for saw blades please inform the following:
Diameter (Inch or mm)
Inner Hole Size (Inch or mm)
Installation hole (If, need drawing)
Segment No. (how many pcs segment per blade)
Segment Size (L x W x H, if possible please inform Steel Core Thickness)
Use of saw blade (For Granite, or other material)
Saw Blades No. of the machine (How many saw blades per machine)
Quantity NO. (How many pcs, or how many sets segments)
Machine Powder, RPM
Feed Speed (M/Minute)
Expected Cutting Depth (How many mm per time, forward or backward)
Expected Cutting Life (How many SQM)
Coolant System (Water or Oil, how many liters/Minute, etc.)
Expected Shipping Date
Special Requirements (If)
10. If only order segments please inform the following:
Diameter (Inch or mm)
Segment No. (how many pcs segment per blade)
Segment Size (L x W x H, if better to inform the Steel Core Thickness)
Use of saw blade (For Granite, or other material)
Saw Blades No. of the machine (How many saw blades per machine)
Quantity NO. (how many sets segments)
Machine Powder, RPM
Feed Speed (M/Minute)
Expected Cutting Depth (How many mm per time, forward or backward)
Expected Cutting Life (How many SQM)
Expected Shipping Date
Special Requirements (If)

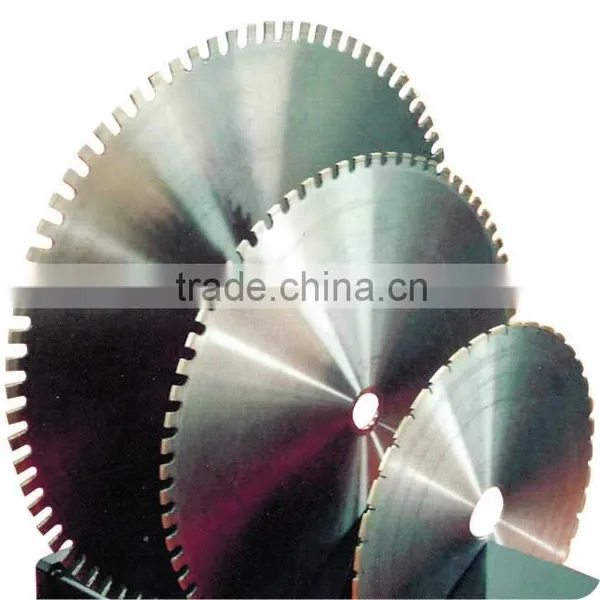

Products: different sizes of saw blades are offered here 100-4800mm.

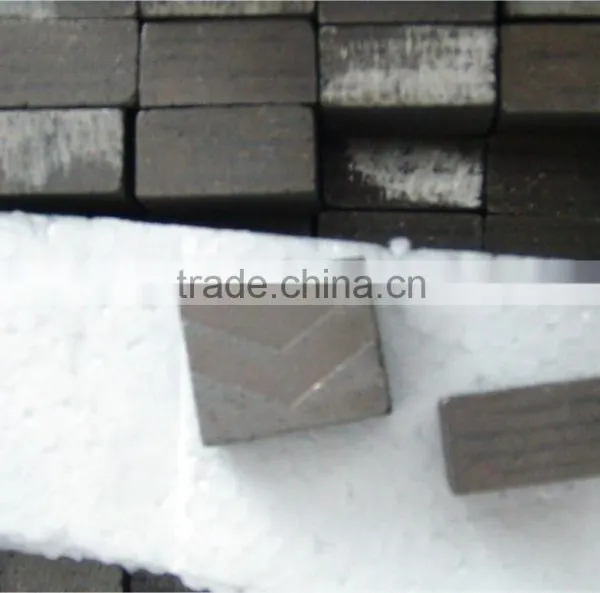

The segments are served here as well.
QUALITY CONTROL:
We can ensure to offer you the good quality products in very reasonable and competitive price, also the full service all the time.
STONE FAIR:
We have attended the stone fair in different countries, such as Russia, Egypt, Brazil, Vietnam, Turkey, India, etc. And you can always find our booth in Xiamen Stone Fair. Welcome to come and visit our company anytime.
OUR CUSTOMERS COVER:
Thanks to the recognition and support of our customers, we have exported products to more than 65 different countries till now, and the number is increasing year by year.
OUR COMPANY:
We are located in the beautiful city, Xiamen, China. Established in March, 2006.
Contact US:
Please feel free to contact us if you get any question or new inquiry,
Also welcome to come and visit our company anytime for further business discussion!
