High Acceleration Shock Testing System for Modal Analysis

High Acceleration Shock Testing System for Modal Analysis thumbnail-1
High Acceleration Shock Testing System for Modal Analysis thumbnail-2
High Acceleration Shock Testing System for Modal Analysis thumbnail-3
High Acceleration Shock Testing System for Modal Analysis thumbnail-4
High Acceleration Shock Testing System for Modal Analysis photo-1
High Acceleration Shock Testing System for Modal Analysis photo-2
High Acceleration Shock Testing System for Modal Analysis photo-3

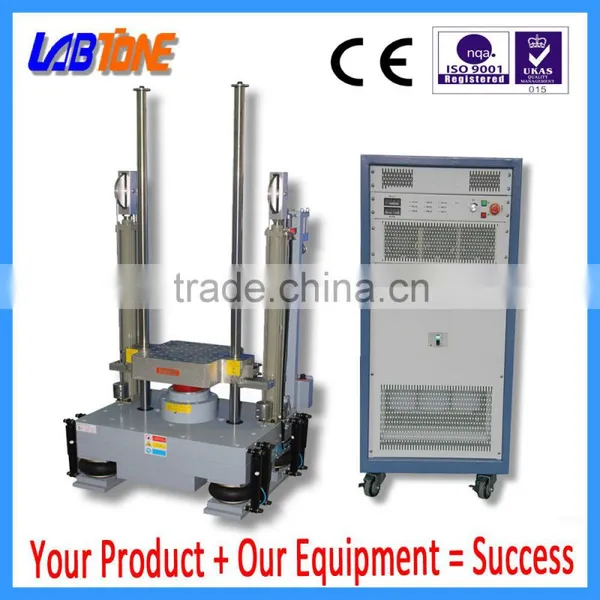

High Acceleration Shock Testing System for Modal Analysis photo-4
US$ 5,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LABTONE
Model Number:
SKT600
Contact Supplier Request Quote Chat Now
Shenzhen Labtone Test Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LABTONE
Model Number SKT600
Power Electronic
Usage Impact Testing Machine
Product description

High acceleration shock testing system for modal analysisis



High acceleration shock testing system for modal analysisHigh acceleration shock testing system for modal analysisHigh acceleration shock testing system for modal analysisHigh acceleration shock testing system for modal analysisHigh acceleration shock testing system for modal analysisHigh acceleration shock testing system for modal analysis



Shock testing systems Design standards:  GB/T2423-2008, GJB1217, GJB360.23, GJB150, GJB548, MIL-STD-202F, IEC-68-2-27, MIL-STD-883E, MIL-STD-810F, ISTA, UL

  Shock testing systems Applications: aviation,aerospace,vessel,military industry,consumer electronics ,automobile,household appliances, display device etc.

  Shock testing systems Features

  • User-friendly touching screen operation.Half sine, square waveform shock pulse programmers.High rigidity shock tables.
  • Half sine, square waveform shock pulse programmers.
  • High rigidity shock tables.
  • A full range of safety features.
  • Apply air and hydraulic pressurization, strong friction brake avoiding secondary shock.
  • Apply air spring suspension, hydraulic damping shockproof system, no shock impact on the surrounding, without foundation.

  Shock testing System Block Diagram

Shock testing systems Specifications



ModelSKT30SKT50SKT100SKT200SKT300SKT600SKT1000
Table size (cm)40*4050*6070*80100*100120*120150*150200*200
 Maximum Specimen Weight(Kg) 30501002003006001000
Max. Acceleration (G)half sine600600600500500300300
saw-tooth waveform100100100100100100100
square 150150150100100100
Pulse Duration (ms)half sine40—0.240~140~130~220~320~320~3
saw-tooth waveform18~618~618~618~618~618~618~6
square 30~630~630~630~630~630~6
 Machine Dimension(cm)120*110*245130*140*260130*120*260150*130*260200*160*300230*180*310250*220*310
Controller cabinet Dimension(cm)W55*D50*H80
Machine Weight(Kg) 190023003200420085001550019500
Utility
Requirements		3-phase AC380V   50/60Hz         0.5~0.8MPa
Conforming standardsGB/T2423-2008 GJB1217   GJB360.23  GJB150  GJB548  MIL-STD-202F   IEC-68-2-27  MIL-STD-883E    MIL-STD-810F   ISTA  UL

High acceleration shock testing systems applications: mobile phone, computer components, connector, optical component, mobile product etc.

High acceleration shock testing systems specifications:
ModelHSKT10HSKT10GSKT10D
Table size (cm)15*15 20*20 20*20
Shock pulseHalf sine
Maximum Specimen Weight(Kg) 51010
Acceleration Range(G)20 ~ 150020 ~ 150020 ~ 10000
Pulse Duration (ms)0.5~110.5~110.2~11
Machine Dimension(cm)60*55*25060*55*25090*70*275
Utility
Requirements		AC220V 50Hz 5A,Air pressure: more than 0.5Mpa
Machine Weight(Kg) 600650110
