PVC Free Foam Board Making Machine

 PVC foam board extrusion line

PVC(WPC) foam board making machine is constituted  by conical twin screw extruder,and corresponding PVC Crust Foam mould,calibration mould,cold tray device,haul off parts,cutting edge device stacker and so on.Copact structure,superior performance.The gear device,screw barrel and foaming T-die all was co-researched together by Chinese well-known manufacture,Extruder adopts frequency control,screw and barrel is specially designed super cone structure,compared with conventional extrusion increased by 30%,saving 20-30%,with plastic uniform,stable extrusion,high output,longevity long and so on.

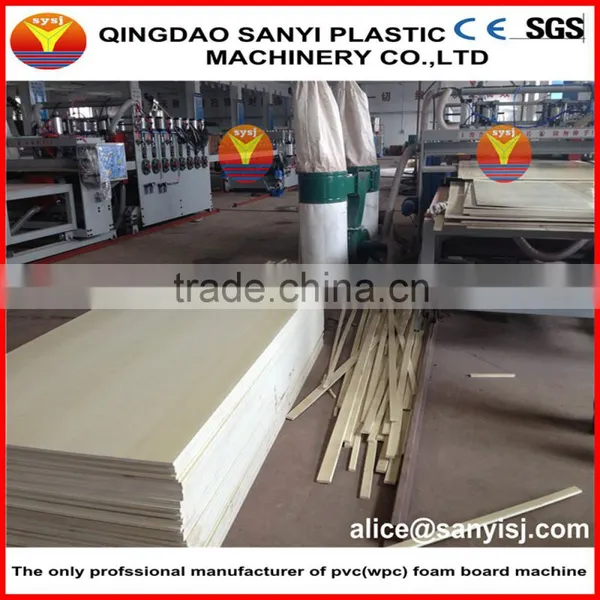

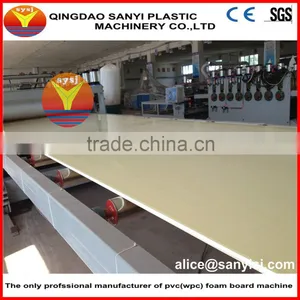

 The pvc(wpc) foam board is mic-foaaming board/referred to as PVC foam board.It took the celuka foam skinning process,and use pvc resin as the main material,adding an appropriate amount of stabilizer,blowing agent,The pvc foam board production line,we provide formula and full set of technology.The finished boards have the character of large output,extrusion stability and high expansion ratio,Smooth surface and so on.

The finished board's typical application can be used as furniture board ,construction board,floor,wall panels,roof,car board,boat board and so on.PVC foam board's appearance and performance is similar to the natural wood,Even better than wood,Known as"synthetic wood."the product has a moisture-roof,flame retardant,non-toxic,beautiful,strong ability of anti-aging advantages.

The constituent part of the machinery:

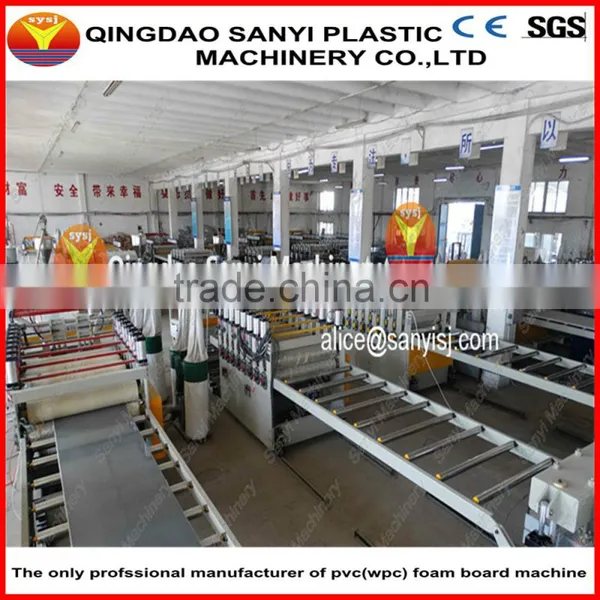

Plastic (PVC)  foam board plate extruder production line

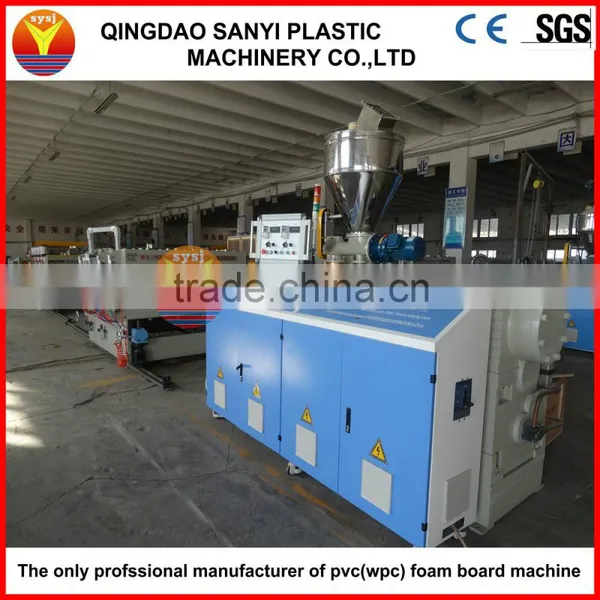

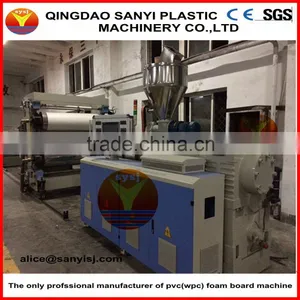

Conical double screw extruder(main machine)SIEMENS contactor,ABB frequency converter,Main Motor power:75KW
Mould(Die Head)Width:1320mm JC TIMES die,in China,on his die surface,only my company LOGO can be stamped.
Calibration unit Thickness is 100mm,and the distance between each pair mould can be adjusted according to the applications of board.
cooling tank and bracket
Haul-off unit two motor,4 pairs rollers ,one motor control 2pairs rollers,if thickness is 5mm,just work one motor is ok,can save more power.
cutting unit
New Stacker  can save more manpower cost for you.

Processing

Feed preparation→ spring feed loading→ main machine extrusion→moulds→4 pairs of Calibrator blocks→ hauling off→ cutting device→stacking device→ checking up→ packing

The advantages of  the machine:

1.ABB Frequency Converter, SIEMENS Contactor, OMRON  Japan, Motor Power:75KW.

2.Motor is authentic Siemens motor,not like Siemens Beide.(From outside it is big difference).

3.Screw and screw barrel:we bought from other company,But it makes it according to my company requirement and with my company LOGO.

4.The mould of the extrusion machine is designed by our company,and the technology is the latest in China.

5.Calibration mould:Thickness is 100mm.and the distance between each pair mould can be adjusted according to the application of board.

6.Material formulation:we can input 100%recycled material.

7.Our certificates :CE,ISO9001,SGS,TUV

8.We have set up the strategic partner relationship with SIEMENS.

The characteristics of PVC(WPC) foam board
First,This is a completely waterproof material, because it is plastic, it is widely used in the place of the outside balcony, Plank Road, a swimming pool, lake, beach, ship deck and so on.

Second, this is a completely anti-termite, anti-moth-eaten material, because it does not contain fibrin.

Third, this is a material with a good performance of flame retardant. We have done experiments. This excellent fire retardant property of foam boards foam is much better then wood and wood-plastic materials.

Fourth, it is one that does not decay, is radiation-free and non-toxic and in line with national testing standards. It is maintenance-free, and the maintenance of pollution can be avoided.

Fifth, the bending resistance of this material and a surface hardness are higher than that of wood, wood materials. The grip nails is stronger than the wood-plastic which is flat with wood.

Sixth, price levels of the pvc  material in the current market has the promotion conditions, it is definitely cheap and fine.

Seventh,This foam board is environmental,and it can be used for many times,and it also can  be recovery of reproduction.

Application of plastic sheet

Architecture decoration industry:such as building formwork board,outdoors board,indoors decoration board,residential house,office,separation of public building,commercial decoration frame,board used in dust-free room.

Household decoration:bathroom cabinet board,furniture board,home decoration board,various household shelves.

Advertisment industry:screen printing,computer engraving,ad.board,exhibition plate,logo plate.

Transport industry and industrial application also can use it.

Transportation: Such as steamship, aeroplane, carriage, train compartment, roof shed, case core layer, inner upholster, etc.
