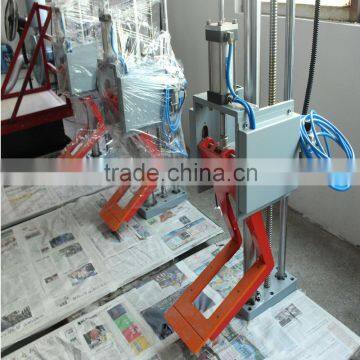

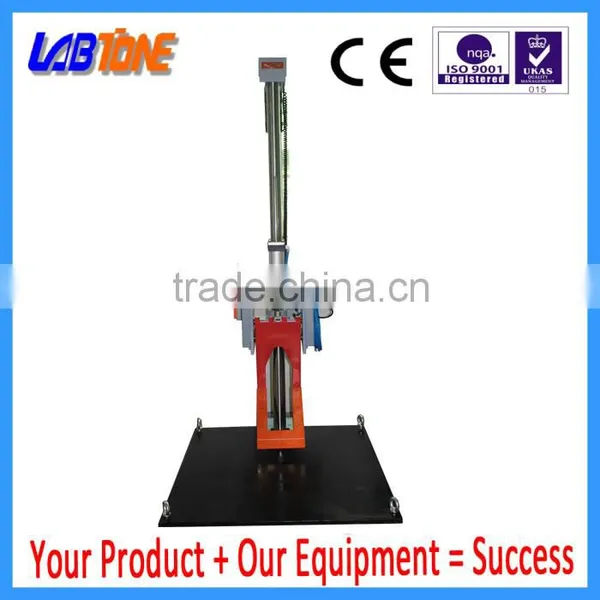

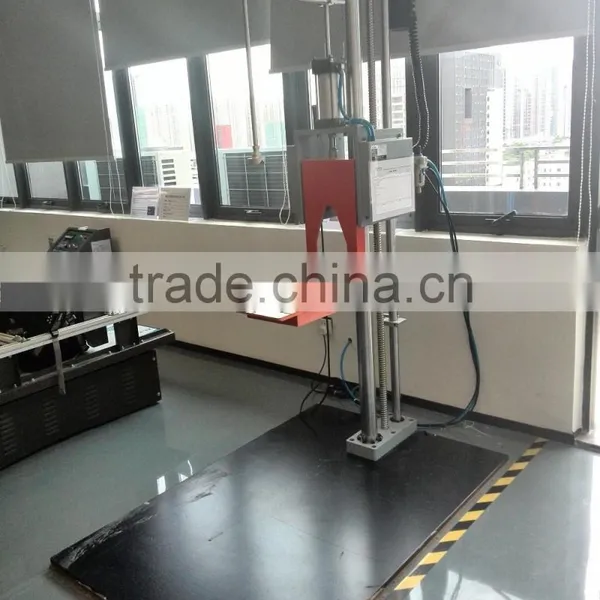

Drop Machine for smartphones, cell phones, and mobile gadgets Product Description
Enable to test the endurance against drop impact. DT-202 provide fragility test for smart phones, cell phones and other mobile gadgets. The specimen holding system can keep the dropping posture, enable to provide drop tests superior in reproducibility.
Drop Machine for smartphones, cell phones, and mobile gadgets Applications
Drop test for digital gadgets ; smart phones, cell phones, and digital gadgets.
Drop test for any electrical parts and small, light-weight object.
Drop Machine for smartphones, cell phones, and mobile gadgets Features
Keep the dropping posture with pneumatic pen cylinder. The impact point can be controlled easily.
The drop height can be settled flexibly by scale, and the specimen holding system is fixed firmly with the electromagnetic holder.
Safety design – the electromagnetic holder never release the specimen holding system till it’s energized.
Drop Machine for smartphones, cell phones, and mobile gadgets Specifications
| Model | DT-2 |
| Specimen max weight | 2kg |
| approx lbs | 4.4lbs |
| Drop hight range(mm) | 250mm up to 2000mm |
| (approx inch) | 10 inch up to 78 inch |
| Drop height setting | Scale and setting pointer |
| Holding/Releasing specimen | Pneumatic per cylinder |
| Size(W x H x D mm) | 600 x 2382 x500 |
| (approx inch) | 23.2 x 93.78 x 19.69 |
| Weight | 80kg |
| (Approx lbs) | 176 lbs |
| power suply | 100-240V single phase SA |
| Applied standards | JIS C60068-2-31,IEC 60068-2-31 |
| Power suply | 0.49Mpa is required(1.2dm3 when tests 6times/mins) |
Detail drawing of supporting base.
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,
which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,
moisture corrosion, good transparency etc
Our products have been exported to USA, Mexico, Colombia, Argentina, Dubai, Saudi Arabia, the Philippines, Indonesia, Malaysia, Vietnam, India and other countries.
We hope we can build A GOOD AND STABLE cooperation with you.
among our customers due to our perfect services, quality products and competitive prices. We warmly welcome customers from domestic and overseas to cooperate with us for common success.
1,12 months warranty, lifelong maintenance. If any quality problems on our side occured in this period.
we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer
operation video and English operation muanual. We can provide video-conference. If customers require on-site service,
the transport and travel expense shall be borne by customer.
2,Help choose right model with series of service
3,Customization service-OEM,Design service,Buyer lable
4,Cooperate with measuring if need the third party verification
