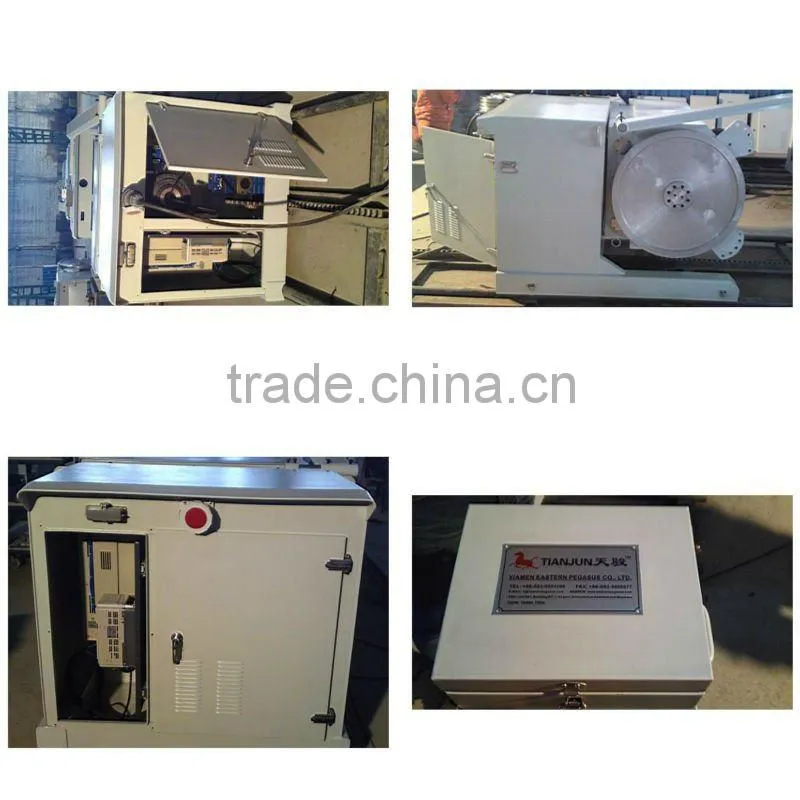

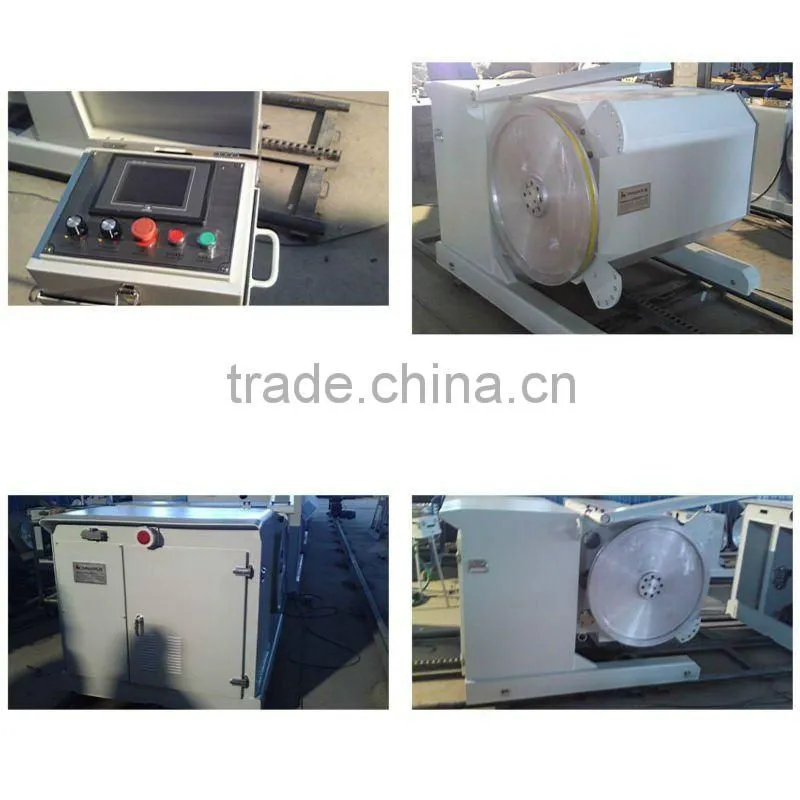

37kw Diamond Wire Saw Machine,Mining Machinery
US$ 17,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TIANJUN
Model Number:
TJTB-37KW
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TJTB Diamond Wire Saw Machine,Quarry Blocks Cutting MachineUS$ 15,000 - 30,000MOQ: 1 Set -
TJTB Diamond Wire Saw Machine,Quarry Block Making MachineUS$ 15,000 - 30,000MOQ: 1 Set
-
TJTB Diamond Wire Saw Machine,Quarry Block Granite MachineUS$ 15,000 - 30,000MOQ: 1 Set
-
TJTB Diamond Wire Saw Machine,Quarry Stone Cutting MachineUS$ 15,000 - 30,000MOQ: 1 Set
-
CE Standard Wholesale Granite Cutting Machine PriceUS$ 23,000 - 32,000MOQ: 1 Unit
Place of Origin
Guangdong, China
Brand Name
TIANJUN
Model Number
TJTB-37KW
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1. for granite and marble quarries2. driving power: 37kw=50HP
3. cutting head adjustment distance: 450mm
4. rail: 2m*3
Quarry Diamond Wire Saw Machine, Both for Granite and Marble Quarry work.
(1) Advanced technology design and manufacturing, mining for granite, marble, sandstone.
(2) Adjustment of the head and rotation electric control high degree of automation.
(3) High-performance inverter output torque constant. The constant tension control theory, according to the cutting force changes automatically adjust the feed speed of the adjustment process is stable and reliable, to ensure the best cutting state.
(4)Console using the intelligent instrument control, real-time sworn the main motor current, travel speed and cutting time and other parameters, easy to control.
| Total Power | 100KW | 78.5KW | 58kw | 48kw | 40kw | ||||||
| Driving Power | 95kw=127HP | 75kw=100HP | 55kw=74HP | 45kw=50HP | 37kw=50HP | ||||||
| Feeding Power | 2.2kw | 2.2kw | 1.5kw | 0.75kw | 0.75kw | ||||||
| Rotary cutting head motor power | 0.75kw | 0.75kw | 0.75kw | 0.75kw | 0.75kw | ||||||
| Cutting head lateral moving motor power | 0.75kw | 0.75kw | 0.55kw | 0.55kw | 0.55kw | ||||||
| Cutting head rotation | 360° | 360° | 360° | 360° | 360° | ||||||
| Cutting head adjustment distance | 450mm | 450mm | 450mm | 450mm | 450mm | ||||||
| Lateral movement of cutting head | 1800mm | 1800mm | 1800mm | 1800mm | 1800mm | ||||||
| Main Guide Wheel Diamete | 800mm (Granite) 900mm(Marble) | 800mm (Granite) 900mm(Marble) | 800mm (Granite) 900mm(Marble) | 800mm | 800mm | ||||||
| Rail | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 | ||||||
| Rotation speed | 960/min | 960/min | 960/min | 960/min | 960/min | ||||||
| Linear speed | 0-40m/s | 0-40m/s | 0-40m/s | 0-40m/s | 0-40m/s | ||||||
| Wire tension | Auto-controlled | Auto-controlled | Auto-controlled | Auto-controlled | Auto-controlled | ||||||
| Allowable Working Temperature | -15°C to +40° | -15°C to +40° | -15°C to +40° | -15°C to +40° | -15°C to +40° | ||||||
| Power | AC 380±10% & 50HZ | AC 380±10% & 50HZ | AC 380±10% & 50HZ | AC 380±10% & 50HZ | AC 380±10% & 50HZ | ||||||
| size | L=1900, W=1600, H=1500 | L=1900, W=1600, H=1400 | L=1800, W=1600, H=1400 | L=1800, W=1500, H=1400 | L=1700, W=1500, H=1400 | ||||||
| Net Weight | 2.8T | 2.5T | 2.4T | 2.4T | 1.6T |
QUALITY CONTROL:
STONE FAIR:
OUR COMPANY:
OUR CUSTOMERS COVER:
