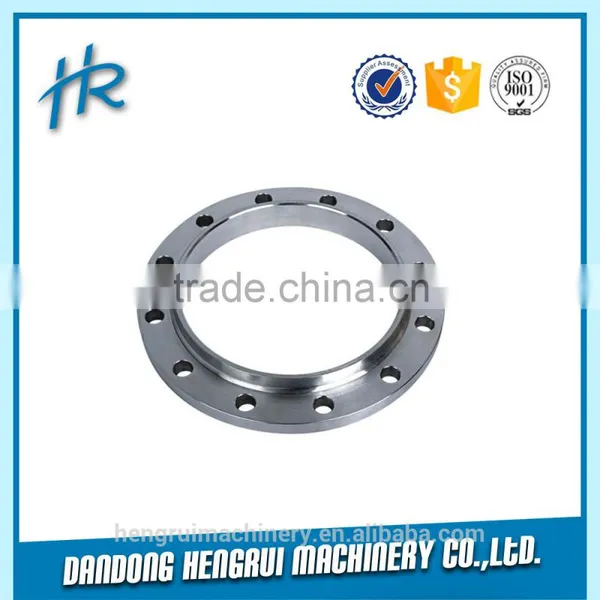

Stainless Steel 201 FMF welding plate Pipe Flange Exporter

FOB Price

USD $1,100 - $1,500 / Piece

10 Pieces(Min.Order)

Supply Ability 2000 Piece / Pieces per Month
Port DALIAN
Payment Terms:T/T L/C D/P D/A PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Size:	1/2"-80"	Material:	Stainless Steel	Standard:	Other, ANSI, ANSI/ASME/API/DIN/JIS/ISO/BS
Place of Origin:	Liaoning, China	Model Number:	Forged Flange	Brand Name:	HR
Standard or Nonstandard:	Nonstandard

Product Description

The flange is a part which is connected between the pipe and the pipe, which is used for the connection between the pipe end. Forged flange connection is the two pipes, pipe fittings or equipment, and forging a connection is an important way to connect the pipeline construction, the use of forged flange connection is convenient, can withstand greater pressure. In the industrial pipeline, the use of forging flange connection is very extensive. The production process of forging flange is composed of the following steps: selection of high quality steel billet, heating, forming, cooling after forging, the size of the quality of the forging, the number of different forging method to produce a lot of quantities.

Specification:

Product name	Stainless Steel 201 FMF welding plate Pipe Flange Exporter
Material	Carbon steel, stainless steel, alloy steel,aluminum
Surface	Rust-proof oil, Black, Yellow, Galvanized
Certificate	ISO9001, CE
Tolerance	± 0.001 mm
Standard	ANSI/ASME/API/DIN/JIS/ISO/BS
Weight	0.3kg-30kg
Usage	Oil Field, Offshore, Water System
Heat Treatment	N+T Q+T
Working temperature	-60°C~250°C
Packaging	Forged Flange each plastic bag to a carton. Or up to you

Factory Production

Nominal diameter	10kg=1.0MPa
	Flange diameter	Bolt hole distance	Bolt diameter	Bolt hole number	Flange thickness
DN10	50	60	14	4	14
DN15	59	65	14	4	14
DN20	105	75	14	4	16
DN25	115	85	14	4	16
DN32	140	100	18	4	18
DN40	150	110	18	4	18
DN50	165	125	18	4	20
DN65	185	145	18	4	20
DN80	200	160	18	8	20
DN100	220	180	18	8	22
DN125	250	210	18	8	22
DN150	285	240	22	8	24
DN200	340	295	22	8	24
DN250	395	350	22	12	26
DN300	445	400	22	12	28
DN350	505	460	22	16	30
DN400	565	515	26	16	32
DN450	615	565	26	20	35
DN500	670	620	26	20	38

Nominal diameter	16kg=1.6MPa
	Flange diameter	Bolt hole distance	Bolt diameter	Bolt hole numbe	Flange thickness
DN10	90	60	14	4	14
DN15	95	65	14	4	14
DN20	105	75	14	4	16
DN25	115	85	14	4	16
DN32	140	100	18	4	18
DN40	150	110	18	4	18
DN50	165	125	18	4	20
DN65	185	145	18	4	20
DN80	200	160	18	8	20
DN100	220	180	18	8	22
DN125	250	210	18	8	22
DN150	285	240	22	8	24
DN200	340	295	22	8	26
DN250	405	355	26	12	29

Machining process

Our Machining process

Test methods

Our Test method

Product display

Our Product display

Packaging & Shipping

Our Packing and Shipping

Our Services

We value every inquiry sent to us, ensure quick competitive offer within 12 hours.

We cooperate with customer to design and develop the new products. Provide all necessary document.
We are a sales team, with all technical support from engineer team.

Why choose us?

Advantages we have:

1. Experienced slate products supplier"

2. Professional design team and sales department for your service;

3. 9year alibaba gold supplier, factory recognized by 'CE/ISO9001' and so on;

4. 7*24 service for you, all the question will be dealed within 24hours.

Benefit you get:

1. Stable quality  ——  Coming from good materials and technic

2. Lower price     ——  Not cheapest but the lowest at the same quality

3. Good service  ——  Satisfactory service before and after sale

4. Delivery time   ——  30-45 days for mass production
