Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Excavator > 45KW Diamond Wire Saw Machine, Machine for Mina

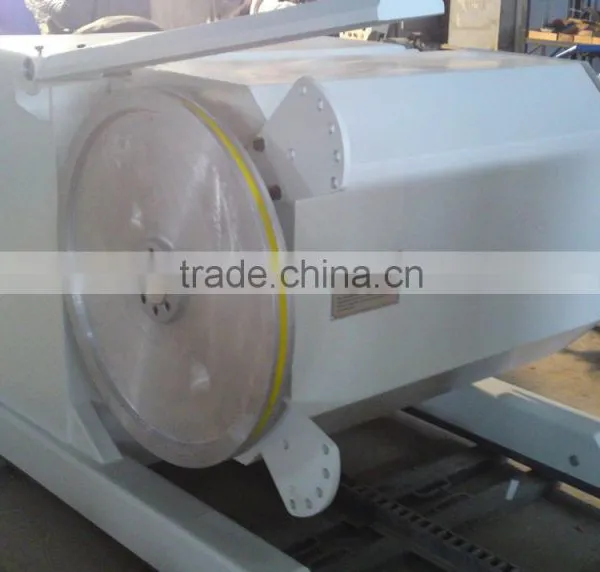

45KW Diamond Wire Saw Machine, Machine for Mina
US$ 17,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TIANJUN
Model Number:
TJTB-45KW
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Diamond Wire Saw Machine,made in ChinaUS$ 19,000 - 21,000MOQ: 1 Set -
TJTB-90 Diamond Wire Saw Machine,quarry Stone Cutting MachineUS$ 22,500 - 23,500MOQ: 1 Set
-
2016 Diamond Wire Saw Machine,quarry Equipment, Mine MachineUS$ 16,000 - 17,000MOQ: 1 Set
-
2016 Quarry Big Block Cutting Machine, Quarry Cut MachineUS$ 21,300 - 25,000MOQ: 1 Set
-
TJSN Series Block Cutting Machine Quarry MachineUS$ 21,300 - 21,400MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
TIANJUN
Model Number
TJTB-45KW
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas

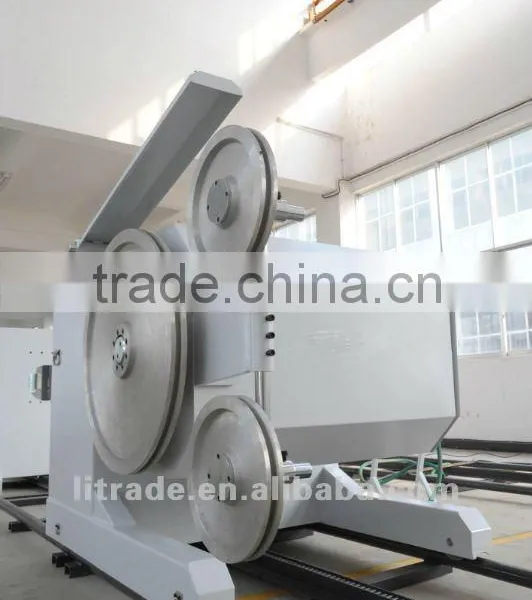

Quarry Diamond Wire Saw Machine, Both for Granite and Marble Mina work.
(1) Advanced technology design and manufacturing, mining for granite, marble, sandstone.
(2) Adjustment of the head and rotation electric control high degree of automation.
(3) High-performance inverter output torque constant. The constant tension control theory, according to the cutting force changes automatically adjust the feed speed of the adjustment process is stable and reliable, to ensure the best cutting state.
(4)Console using the intelligent instrument control, real-time sworn the main motor current, travel speed and cutting time and other parameters, easy to control.
| Total Power | 90KW | 78.5KW | 58kw | 48kw | 40kw | ||||||
| Driving Power | 90kw | 75kw=100HP | 55kw=74HP | 45kw=50HP | 37kw=50HP | ||||||
| Feeding Power | 2.2kw | 2.2kw | 1.5kw | 0.75kw | 0.75kw | ||||||
| Rotary cutting head motor power | 0.75kw | 0.75kw | 0.75kw | 0.75kw | 0.75kw | ||||||
| Cutting head lateral moving motor power | 0.75kw | 0.75kw | 0.55kw | 0.55kw | 0.55kw | ||||||
| Cutting head rotation | 360° | 360° | 360° | 360° | 360° | ||||||
| Cutting head adjustment distance | 450mm | 450mm | 450mm | 450mm | 450mm | ||||||
| Lateral movement of cutting head | 1800mm | 1800mm | 1800mm | 1800mm | 1800mm | ||||||
| Main Guide Wheel Diamete | 800mm (Granite) 900mm(Marble) | 800mm (Granite) 900mm(Marble) | 800mm (Granite) 900mm(Marble) | 800mm | 800mm | ||||||
| Rail | 2m*3 | 2m*3 | 2m*3 | 2m*3 | 2m*3 | ||||||
| Rotation speed | 960/min | 960/min | 960/min | 960/min | 960/min | ||||||
| Linear speed | 0-40m/s | 0-40m/s | 0-40m/s | 0-40m/s | 0-40m/s | ||||||
| Wire tension | Auto-controlled | Auto-controlled | Auto-controlled | Auto-controlled | Auto-controlled | ||||||
| Allowable Working Temperature | -15°C to +40° | -15°C to +40° | -15°C to +40° | -15°C to +40° | -15°C to +40° | ||||||
| Power | AC 380±10% & 50HZ | AC 380±10% & 50HZ | AC 380±10% & 50HZ | AC 380±10% & 50HZ | AC 380±10% & 50HZ | ||||||
| size | L=1900, W=1600, H=1500 | L=1900, W=1600, H=1400 | L=1800, W=1600, H=1400 | L=1800, W=1500, H=1400 | L=1700, W=1500, H=1400 | ||||||
| Net Weight | 2.8T | 2.5T | 2.4T | 2.4T | 1.6T |
