PVC Bathroom Vanity and Cloakroom Cabinet Board Production Line
Product Description
Brand Name: SanYi
Certificate: CE, ISO9001, SGS, TUV
Plastic Processed: PVC and WPC
Screw Design: Conical double screw
Model Number: SJSZ80/156
Voltage: 380-440V
Main Motor Power: 75kw
Dimension (L*W*H): 25m*3m*3m
Weight: 28t
Output of plastic plate: 400kg/h
Finished Product: PVC/WPC foam board
Specification of finished board: 1220*2440*(3-20) mm or 915*1830*(3-20)mm
Density of finished board: 0.37-0.85 adjustable

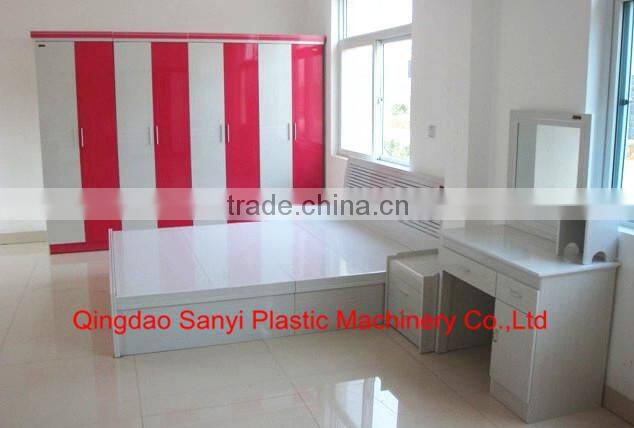

Application of Foam Board: Furniture board, decoration board, advertisement board, building template, wall panels, roof, car and boat board etc.
After-sales Service Provided: Engineers available to serve overseas
Packing Details: Wood package and PE film covered 2 containers.
Delivery Details: 30 working days
Product Introduction
Qingdao Sanyi specialize in the manufacturing of PVC foam board extruder machine and have updated our product to the latest 15th generation. PVC Bathroom Vanity and Cloakroom Cabinet Board Making Machine is our latest updated products. It's continuously improved on the basis of requirements and feedbacks from our customers and combined with foreign advanced technology. It shows superior performance, high reliability and practicality with its compact structure, advanced configuration and outstanding output in the production of 3-30mm thick, high-qualified PVC bathroom cabinet foam board.

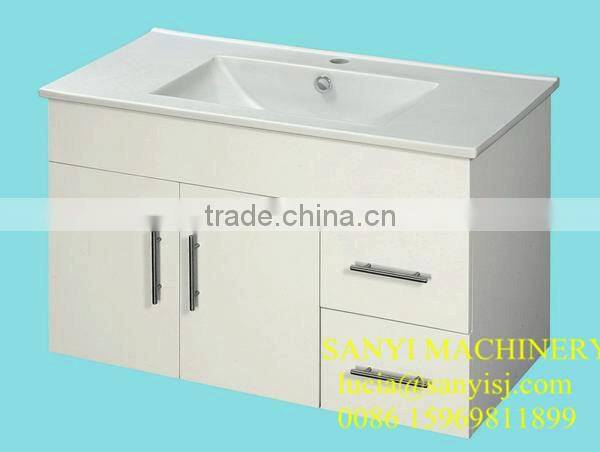

Characteristics of PVC bathroom cabinet board
PVC Bathroom cabinet board has such characteristics as sound separation, sound absorption, heat separation, temperature-keeping, etc.
The material is incombustible, it is safe for use.
All series of products have property of moisture proof, mildew proof, water resistance; its vibration resistant effect is good.
All series of products have property of weathering proof, its luster may remain forever,and it is not easy to be ageing.
This product is light, storage & transport, construction are rather convenient.
This product can be worked with normal tools for wooden material.
Drilling, sawing, nail, bonding can be conducted like wooden material.
It is suitable for thermal shaping, thermal bending and fold processing.
It can be welded; it can also be bonded with other pvc material.
The surface of this product is smooth, it can be printed. (Clean the surface before printing).
Specifications of PVC Bathroom Foam Board | |
Length |
1830mm/2440mm |
Thickness |
3mm~30mm |
Width |
915mm/1220mm |
Density |
0.37g/cm 3 -0.85g/cm 3 |
surface |
Smooth or wood grain pattern(timber ridge) finish |
color |
White or all feasible colors as requested |
Technique Guarantee
Our plastic extruder adopts Celuka foam technology, which can produce a kind of PVC foam board with superior quality. These processes result in a "skinning" or outer layer of foam board and it achieves excellent surface hardness, rigidity and toughness and more scratch-resistance. This kind of cabinet foam board has smooth and shining surface with characteristics of lightweight, scratch-resistant, durable, water and weather resistant, anti-corrosion, impervious to salts, insects and many chemicals including some acids. PVC cabinet board can be nearly 100% recycled and reused. Besides, PVC foam board can be worked like wood with the tools for wood. It’s suitable for sawing, cutting, nailing, screwing, planning and sticking. It’s the perfect substitute for wood plates and steel plate.

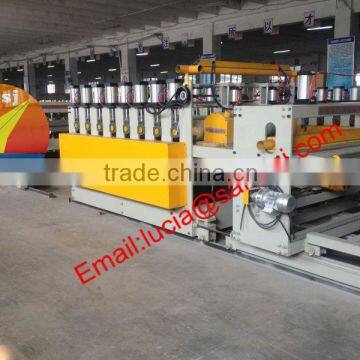

Excellent Equipments

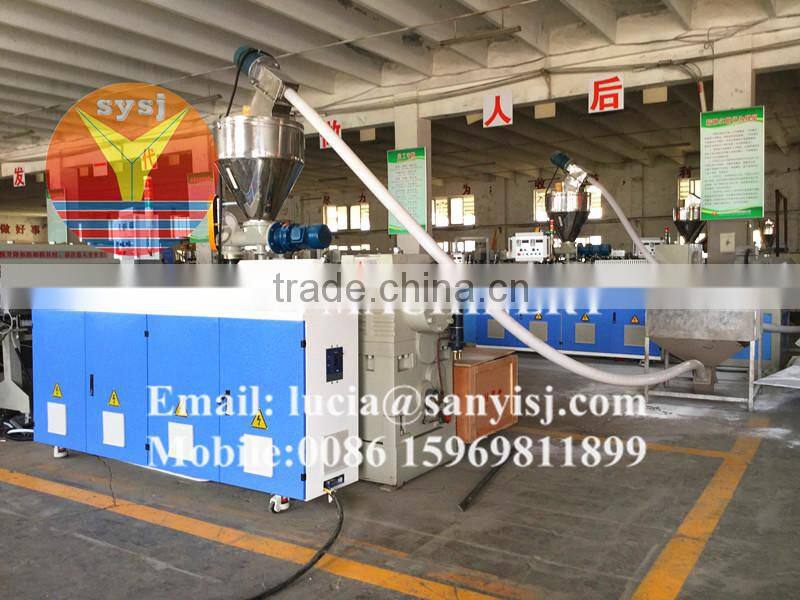

1) SJSZ 80/156 Conical twin Screw Extruder
ABB frequency converter, Siemens conductor, OMRON Japan Temperature controller
2)Calibration unit
Calibration plate: 1500mm× 500mm 4couples
3) Cooling tank and bracket
Length: 6000mm
Trimming knife: 3 sets
4) Haul-off unit
8 couples Cylinder clamping and loosening
5) Cutting unit
6) Stacker
7) Mould (T-Die)
Electrical Configuration
1) Main motor frequency controller: SIEMENS or ABB
2)Temperature controller: OMRON or RKC
3) AC controller: SCHNEIDER or SIEMENS
4) Thermal overload relay: SCHNEIDER
5) Switch: SCHNEIDER
Full Service
1) Pre-sale service:
To provide market research information and consultation
To provide all kinds of convenience and market service
To help customers make project planning and systematic analysis
To maximize customer's satisfaction
To achieve the mutual benefits of our customers and our company
2) After-sale service:
To install products and test products for customers
To provide the formulas and technologies of relevant products and the information of chemical materials manufactories
To provide technical direction according to customers' requirements
To provide technical training for clients' employees
To be responsible for maintenance service, door-to-door service under necessary circumstance
We ensure you that any of your concerns and requirements will get prompt attention! ! !
QQ: 609941257
Skype: lucia85241
Phone:008615969811899
